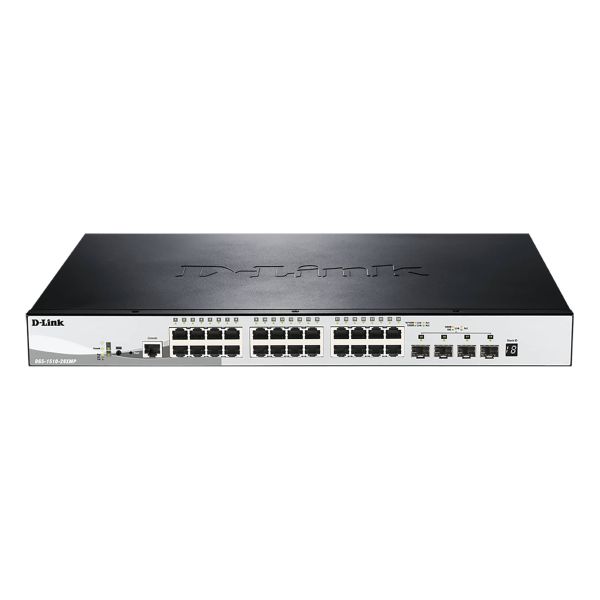

D-Link DGS-1510-28XMP netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Grijs

D-Link DGS-1510-28XMP, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Nog slechts 7 beschikbaar

MPN DGS-1510-28XMP
EAN 0790069413780
€ 1.538,00 excl. BTW

D-Link DGS-1510-28XMP netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Grijs

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G capability, available with 16, 24, or 48 10/100/1000 Mbps ports plus additional fibre ports for physical stacking or uplinks. The PoE-capable DGS-1510-28P and DGS-1510-28XMP switches provide additional flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The combination of high bandwidth connections and PoE support make the DGS-1510 Series ideal for Small-Medium Enterprise (SME) and Small-Medium Business (SMB) environments.

10G SFP+ Stacking/Uplink Ports

The last two SFP+ ports of the DGS-1510 Series switches allow users to create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables (DACs) or any compatible SFP+ transceiver1. This creates a total of 288 Gigabit ports, ensuring high bandwidth while staying cost-efficient. Meanwhile, the remaining uplink ports can be used for other functions, such as connecting to a larger network. Users can also easily configure and manage any of the DGS-1510 Series Smart Managed switches in a single stack. With 20 Gbps full-duplex capabilities, the DGS-1510 Series offers 10G connectivity to core networks and servers while still maintaining fast data transfer rates.

Layer 3 Traffic Management

The DGS-1510 Series provides static routing, allowing you to segment your network into workgroups that communicate between VLANs and increase application performance. With these capabilities, you can reduce the load on your core devices, allowing you to create a scalable and efficient network.

Extensive Layer 2 Features

The DGS-1510 Series switches are equipped with a complete line-up of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automatically detects and shuts down loops created by a specific port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.

Traffic Classification & QoS

The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart switches. This technology consolidates data and surveillance video transmissions through a single DGS-1510 Series Smart Managed switch, saving businesses the costs of maintaining expensive dedicated hardware and infrastructure. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data by giving ASV traffic priority over other packets.

Keep Your Network Secure

D-Link’s innovative Safeguard Engine protects the DGS-1510 Series against traffic flooding caused by malicious attacks. The DGS-1510 Series supports both MAC and web-based access control. This gives network administrators multiple authentication options, reducing deployment times and removing the need for client software. The DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. The Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow an intruder to intercept users’ traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.

IPv6 Ready

The DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 security features, and IPv6 Quality of Service (QoS), ensuring seamless integration with next generation networks. The DGS-1510 Series also supports IPv4/v6 dual stack functionality, which allows the switches to act as a bridge between IPv4 and IPv6 networks.
1 When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Traffic-classificatie
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4
Vezel-optische connector
SFP+

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat5, Cat5e
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN, Protocol-based VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Throughput
95,24 Mpps
MAC-adrestabel*
16384 entries
Store-and-forward
Ja
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP server, DHCP client
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
768
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS
SSH/SSL support
Ja
BPDU filtering / bescherming
Ja
Authenticatie
MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Zwart, Grijs
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid

Design

Aantal ventilatoren
2 ventilator(en)
Veiligheid
cUL, CB
Certificering
CE, FCC, C-Tick, VCCI, BSMI, CCC

Prestatie

Physical stacking (units)
6
Virtual stacking (units)
32
Geluidsniveau
56,9 dB

Technische details

(Binnenste) verzendverpakking hoogte
48,5 cm
(Binnenste) verzendverpakking breedte
38,5 cm
(Binnenste) verzendverpakking lengte
53 cm
Nettogewicht transportverpakking
14,3 kg
Producten per (binnenste) verzendverpakking
3 stuk(s)
Pallet brutogewicht (lucht)
561,6 kg
Aantal dozen per pallet (lucht)
24 stuk(s)
Aantal per pallet (lucht)
72 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
2,08 m
Pallet brutogewicht (zee)
561,6 kg
Aantal dozen per pallet (zee)
24 stuk(s)
Producten per pallet (zee)
72 stuk(s)
Pallethoogte (zee)
2,08 m
(Binnenste) verzendverpakking gewicht
22,6 kg

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
436,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Warmtedissipatie
1487,78 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
308 mm
Hoogte
44 mm
Gewicht
4,25 kg

Verpakking

Breedte verpakking
450 mm
Diepte verpakking
510 mm
Hoogte verpakking
121 mm
Gewicht verpakking
7,06 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
