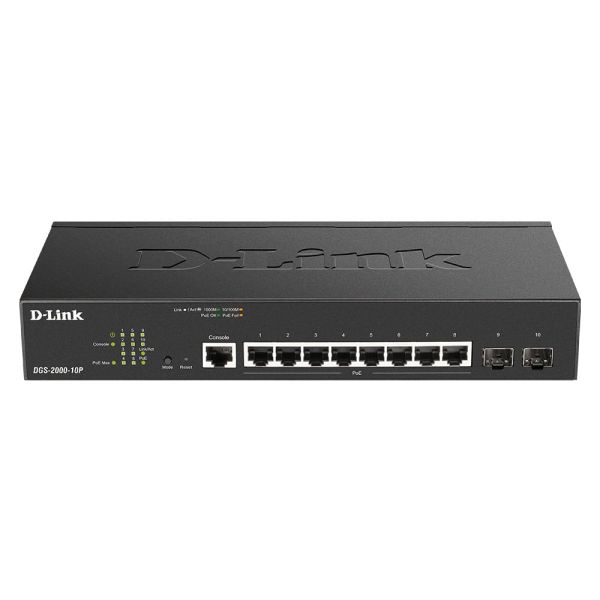

D-Link DGS-2000-10P, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

MPN DGS-2000-10P
EAN 0790069460470

D-Link DGS-2000-10P netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

The DGS-2000 Series provide a diverse range of Gigabit port densities to accommodate various needs of enterprise access layer connectivity. With options such as PoE to conveniently power edge devices, SFP ports to extend network connectivity, advanced Layer 2 functionalities, and Layer 3 Lite manageability, the DGS-2000 Series is the ideal choice for any enterprise access layer deployment.

Ultra High Availability
For mission critical environments, the DGS-2000 series supports IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and terminating switching loops.
The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for effortless diagnostics and maintenance.

An Added Line of Defense Against Attacks​
Defend your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. Compatible with 802.1X RADIUS server applications, port-based and host-based authentication are applied through the Access Control List (ACL) to enhance network security.​

Seamless Integration for All Access Layer Requirements
The DGS-2000 Series includes a wide variety of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports. The DGS-2000-10, DGS-2000-26, DGS-2000-10P and DGS-2000-10MP models feature two 100/1000 Mbps SFP ports, while all other DGS-2000 Series models feature two or four GbE/SFP combo ports, allowing you to choose the most suitable media type for your requirements.
All DGS-2000 Series PoE switches include support for IEEE 802.3af/at and higher power budgets up to 370W, allowing more PoE devices to be powered by the switch. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages power fed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

QoS (Quality of Service) - Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly, and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.


Versatile Management​
The DGS-2000 Series comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant utility allows customers to easily discover multiple D-Link Managed Access Switches within the same L2 network segment and display them on-screen for instant access, so users do not need to change the IP address of their PC. This allows for simultaneous configuration and setup of all discovered devices, including password changes and firmware upgrades. The DGS-2000 Series also supports Command Line Interface (CLI) through Telnet, SSH and the console port.
  • Different combinations of 1000BASE-T, 100/1000 Mbps GbE/SFP combo, and 100/1000 Mbps SFP
  • PoE and non-PoE variations
  • Auto Surveillance and Voice VLAN detection for uninterrupted surveillance video and jitter-free VoIP calls
  • Up to 30W per port with 370W total PoE power budget
  • Layer 2 management and security, with Layer 3 Lite features
  • Supports D-Link Network Assistant (DNA) and Web UI utilities
  • Supports Command Line Interface (CLI) via Telnet or SSH

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,88 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Packet buffergeheugen
4,1 MB

Beveiliging

DHCP-functies
DHCP relay, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Statische poort beveiliging
Ja
SSH/SSL support
Ja
IP-MAC-Port binding
Ja

Multicast-functies

Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Stroom, Snelheid

Prestatie

Type geheugen
DDR3-SDRAM
Intern geheugen
256 MB
Flash memory
32 MB
Mean time between failures (MTBF)
277967 uur

Energie

Vermogenstoevoer inclusief*
Ja
DC voltage input
54 V
Stroomverbruik (typisch)
2,5 W
Vermogensverbruik (max)
81,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Totaal Power over Ethernet (PoE)-budget
65 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
279,59 BTU/h

Gewicht en omvang

Breedte
280 mm
Diepte
126 mm
Hoogte
44 mm
Gewicht
950 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
