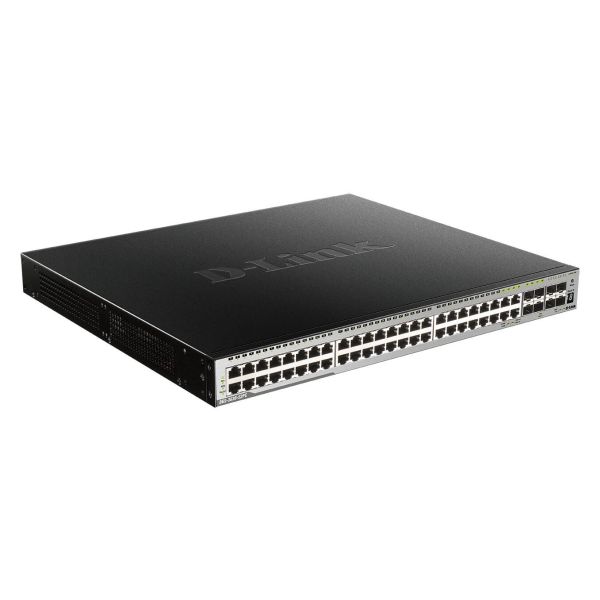

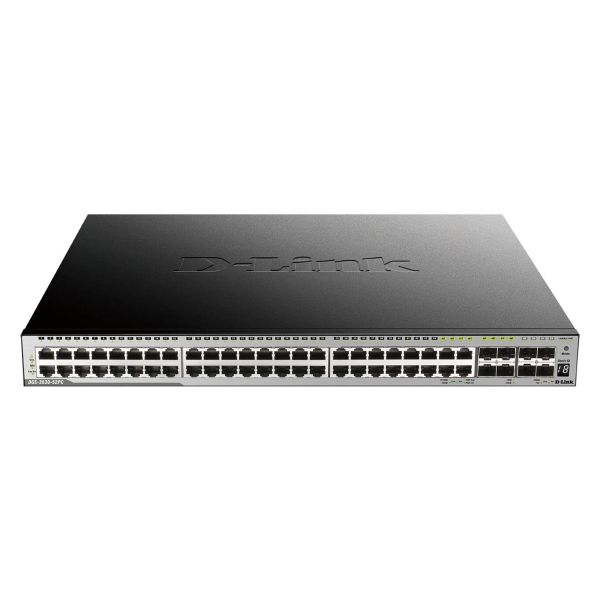

D-Link DGS-3630-52PC/SI, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Nog 1 beschikbaar (bel voor reservering)

MPN DGS-3630-52PC/SI
EAN 0790069435027

D-Link DGS-3630-52PC/SI netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart, Grijs

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
  • Designed for Small to Medium Businesses, Enterprises and ISPs
  • Deliver high performance, flexibility, fault tolerance, and advanced software features
  • Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
  • High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
  • DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4
Vezel-optische connector
SFP+
Console port
RJ-45/Mini-USB
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
Full duplex
Ja
IP routing
Ja
Routing entries
16000
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Head-of-line (HOL) blocking
Ja
Auto-negotiation
Ja
Ethernet Ring Protection Switching (ERPS)
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
176 Gbit/s
Verzending snelheid
130,95 Mpps
MAC-adrestabel*
68000 entries
Store-and-forward
Ja
Statische route
Ja
Aantal statische routes
512
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000

Beveiliging

DHCP-functies
DHCP server, DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
IP-MAC-Port binding
Ja

Multicast-functies

Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Zwart, Grijs

Design

Aantal ventilatoren
4 ventilator(en)
Veiligheid
cUL, CB, CE, CCC, BSMI
Elektromagnetische compatibiliteit
CE, FCC A, C-Tick, VCCI, BSMI, CCC

Prestatie

Physical stacking (units)
9
Virtual stacking (units)
32
Type processor
Ja

Technische details

(Binnenste) verzendverpakking hoogte
57,2 cm
(Binnenste) verzendverpakking breedte
36,2 cm
(Binnenste) verzendverpakking lengte
57,9 cm
Nettogewicht transportverpakking
13,7 kg
Producten per (binnenste) verzendverpakking
2 stuk(s)
Pallet brutogewicht (lucht)
355,5 kg
Aantal dozen per pallet (lucht)
18 stuk(s)
Aantal per pallet (lucht)
36 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
185,1 cm
Pallet brutogewicht (zee)
355,5 kg
Aantal dozen per pallet (zee)
18 stuk(s)
Producten per pallet (zee)
36 stuk(s)
Pallethoogte (zee)
185,1 cm
(Binnenste) verzendverpakking gewicht
18,7 kg

Energie

Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
48
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
441 mm
Diepte
380 mm
Hoogte
44 mm
Gewicht
6,3 kg

Verpakking

Breedte verpakking
538 mm
Diepte verpakking
560 mm
Hoogte verpakking
170 mm
Gewicht verpakking
8,6 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
