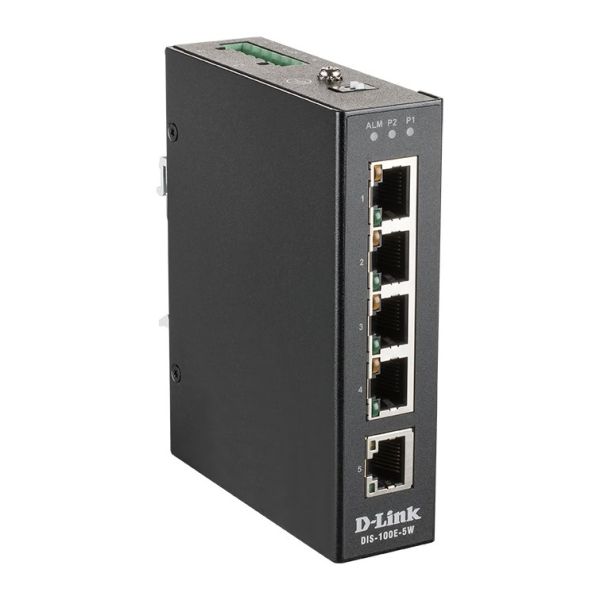

D-Link DIS-100E-5W netwerk-switch Unmanaged L2 Fast Ethernet (10/100) Zwart

D-Link DIS-100E-5W, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack-montage, Ophangsysteem voor aan de muur

Ruim op voorraad

MPN DIS-100E-5W
EAN 0790069441271
€ 251,00 excl. BTW

D-Link DIS-100E-5W netwerk-switch Unmanaged L2 Fast Ethernet (10/100) Zwart

Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.

Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment

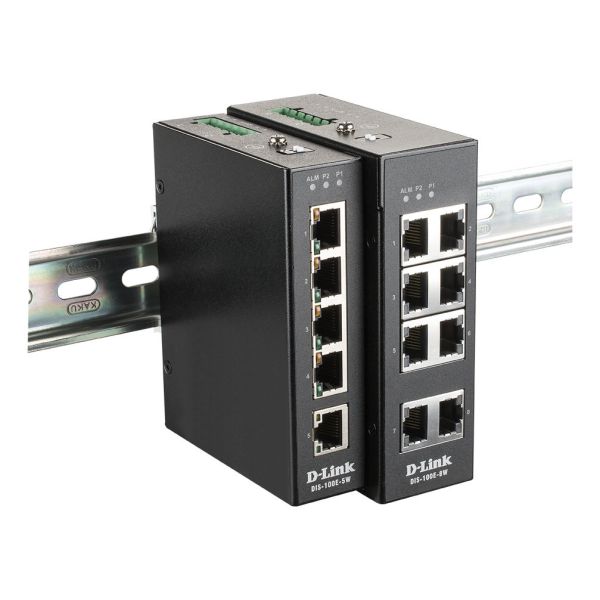

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
  • Unmanaged plug-and-play simplicity
  • 5 x 10/100BaseT(X) ports
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC
  • Hardened housing
  • Fast deployment
  • Discreet size

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
5
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Relay uitgangen
1

Netwerk

Netwerkstandaard*
IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 100BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja

Data-uitwisseling

MAC-adrestabel*
1000 entries
Store-and-forward
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Zwart
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
UL 60950‑1 CE FCC

Prestatie

Plug and play
Ja
Mean time between failures (MTBF)
219000 uur

Technische details

(Binnenste) verzendverpakking hoogte
20 cm
(Binnenste) verzendverpakking breedte
30,5 cm
(Binnenste) verzendverpakking lengte
43 cm
Nettogewicht transportverpakking
5,78 kg
Producten per (binnenste) verzendverpakking
10 stuk(s)

Technische details

Pallet brutogewicht (lucht)
226,4 kg
Aantal dozen per pallet (lucht)
36 stuk(s)
Aantal per pallet (lucht)
360 stuk(s)
Pallet brutolengte
120 cm
Pallet brutobreedte
110 cm
Pallethoogte (lucht)
135 cm
Pallet brutogewicht (zee)
330,7 kg
Aantal dozen per pallet (zee)
54 stuk(s)
Producten per pallet (zee)
540 stuk(s)
Pallethoogte (zee)
195 cm
(Binnenste) verzendverpakking gewicht
5,79 kg

Energie

DC voltage input
12 - 58 V
Stroomverbruik (typisch)
0,95 W
Vermogensverbruik (max)
1,56 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
29,1 mm
Diepte
89,4 mm
Hoogte
109,2 mm
Gewicht
320 g

Verpakking

Breedte verpakking
140 mm
Diepte verpakking
178 mm
Hoogte verpakking
83 mm
Gewicht verpakking
488 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
