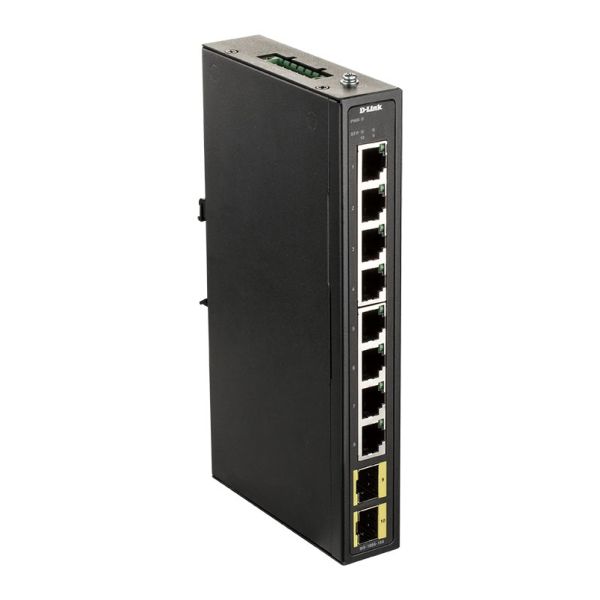

D-Link DIS-100G-10S netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) DIN rail Zwart
D-Link DIS-100G-10S, Unmanaged, Gigabit Ethernet (10/100/1000), DIN rail
4 op voorraad (levering verwacht binnen 5 dagen)Dit item is op voorraad in een centraal Europees magazijn. De levertijd is ~5 werkdagen.
€ 251,00
excl. BTW
€ 251,00
excl. BTW
excl. BTW
4,5
·
4,0
·
Gratis verzending vanaf €250
Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment

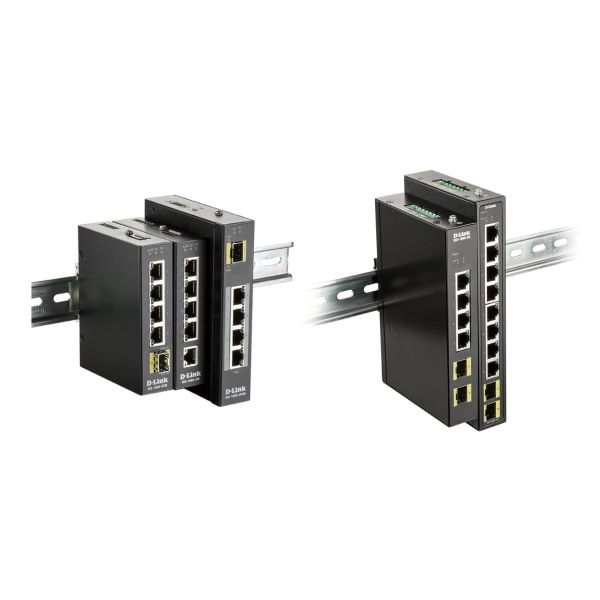

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
- 10 x 100/1000Base-T ports, 2 x 100/1000BaseSFP slots
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Tested against for vibration, shock, free-fall, EMC
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld fout
Beheerfuncties
Switch type*
Unmanaged
Quality of Service (QoS)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Koperen ethernetbekabelingstechnologie
1000BASE-T
Auto MDI/MDI-X
Ja
Data-uitwisseling
Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,88 Mpps
MAC-adrestabel*
4000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Doorzendmethode
Store-and-forward
Design
Stapelbaar*
Ja
Vormfactor
DIN rail
Kleur van het product
Zwart
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP40
Prestatie
Fanloos
Ja
Mean time between failures (MTBF)
392267 uur
Energie
Stroombron*
DC
DC voltage input
12 - 48 V
Stroom
1 A
Vermogensverbruik (max)
7,44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-20 - 65 °C
Temperatuur bij opslag
-20 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
190 mm
Diepte
28 mm
Hoogte
100 mm
Gewicht
498 g
Certificaten
Certificering
47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)
EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8
IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration
CE, FCC
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
