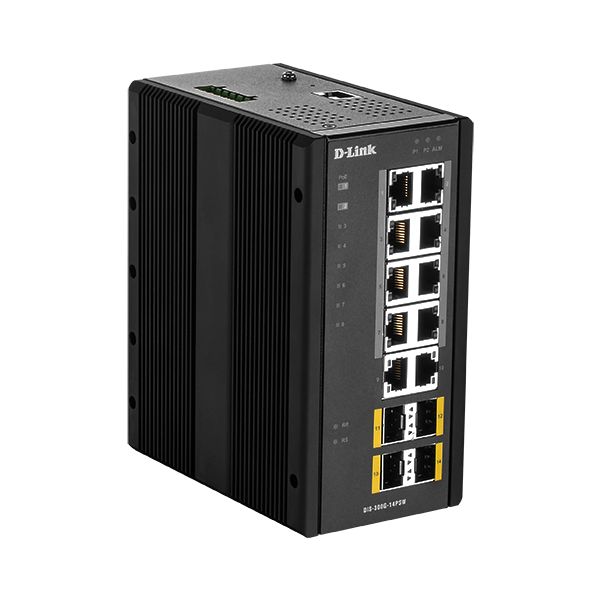

D-Link DIS‑300G‑14PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

D-Link DIS‑300G‑14PSW, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Niet op voorraad

MPN DIS-300G-14PSW
EAN 0790069437922
€ 1.357,00 excl. BTW

D-Link DIS‑300G‑14PSW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-14PSW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with PoE and SFP slots
Designed with 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

PoE Support
With its 240W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment

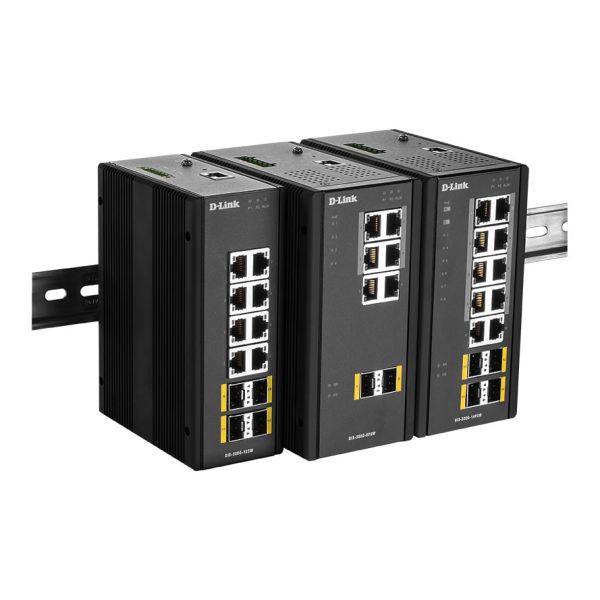

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.
  • 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots
  • 240 W PoE Power Budget
  • High availability
  • Easy-to-control management interfaces and security
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic shaping
Ja
System event log
Ja
MIB-ondersteuning
RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4
Vezel-optische connector
LC

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN, Protocol-based VLAN, Interface-based VLAN, Port-based VLAN, IP subnet–based VLAN
Aantal VLANs
1024

Data-uitwisseling

MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP server, DHCP snooping, DHCP relay, DHCP client
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SNMPv3, SSH
Authenticatie type
IEEE 802.1x, RADIUS
Algoritmen wachtrijplanning
Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
LED-indicatoren
Alarm, LAN, Power over Ethernet (PoE), Status
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Elektromagnetische compatibiliteit
FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Certificering
IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Prestatie

Upgraden van firmware mogelijk
Ja

Technische details

(Binnenste) verzendverpakking hoogte
27 cm
(Binnenste) verzendverpakking breedte
40,5 cm
(Binnenste) verzendverpakking lengte
69,5 cm
Nettogewicht transportverpakking
18,6 kg
Producten per (binnenste) verzendverpakking
10 stuk(s)
Pallet brutogewicht (lucht)
415,6 kg
Aantal dozen per pallet (lucht)
20 stuk(s)
Aantal per pallet (lucht)
200 stuk(s)
Pallet brutolengte
120 cm
Pallet brutobreedte
110 cm
Pallethoogte (lucht)
148,5 cm
Pallet brutogewicht (zee)
575 kg
Aantal dozen per pallet (zee)
28 stuk(s)
Producten per pallet (zee)
280 stuk(s)
Pallethoogte (zee)
2,02 m
(Binnenste) verzendverpakking gewicht
19,9 kg

Energie

DC voltage input
48 - 58 V
Stroomverbruik (typisch)
14 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Voltagebereik Power over Ethernet (PoE)
54 - 58 V
Vermogen per poort Power over Ethernet (PoE)
60 W
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
71 mm
Diepte
154 mm
Hoogte
128 mm
Gewicht
1,41 kg

Verpakking

Breedte verpakking
195 mm
Diepte verpakking
242 mm
Hoogte verpakking
138 mm
Gewicht verpakking
1,86 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
