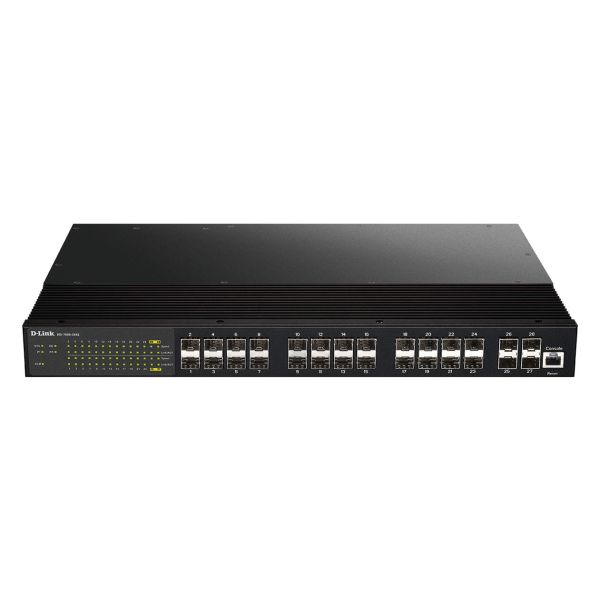

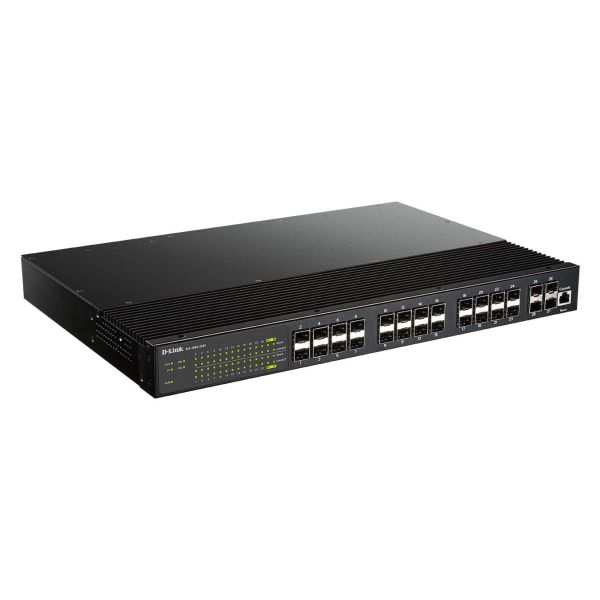

D-Link DIS-700G-28XS netwerk-switch Managed L2+ 1U Zwart

D-Link DIS-700G-28XS, Managed, L2+, Rack-montage, 1U

Nog slechts 8 beschikbaar

MPN DIS-700G-28XS
EAN 0790069437953
€ 3.555,00 excl. BTW

D-Link DIS-700G-28XS netwerk-switch Managed L2+ 1U Zwart

Layer 2+ Managed Customization

For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.

Gigabit Connectivity with SFP slots

Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.

Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures

Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C.

Strong Build

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability

Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Traffic shaping
Ja

Poorten & interfaces

Aantal moduleslots SPF
24
Aantal moduleslots SPF+
4
Console port
RJ-45
Aantal USB 2.0-poorten
1
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x
10G support*
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Multicast VLAN

Data-uitwisseling

MAC-adrestabel*
8000 entries

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart

Technische details

(Binnenste) verzendverpakking hoogte
46,8 cm
(Binnenste) verzendverpakking breedte
35,7 cm
(Binnenste) verzendverpakking lengte
58,2 cm
Nettogewicht transportverpakking
17,5 kg
Producten per (binnenste) verzendverpakking
3 stuk(s)
Pallet brutogewicht (lucht)
242,1 kg

Technische details

Aantal dozen per pallet (lucht)
12 stuk(s)
Aantal per pallet (lucht)
36 stuk(s)
Pallet brutolengte
120 cm
Pallet brutobreedte
110 cm
Pallethoogte (lucht)
107,1 cm
Pallet brutogewicht (zee)
467,2 kg
Aantal dozen per pallet (zee)
24 stuk(s)
Producten per pallet (zee)
72 stuk(s)
Pallethoogte (zee)
2,01 m
(Binnenste) verzendverpakking gewicht
18,8 kg

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
35 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
318,5 mm
Hoogte
44 mm
Gewicht
4,5 kg

Verpakking

Breedte verpakking
430 mm
Diepte verpakking
570 mm
Hoogte verpakking
110 mm
Gewicht verpakking
5,83 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
