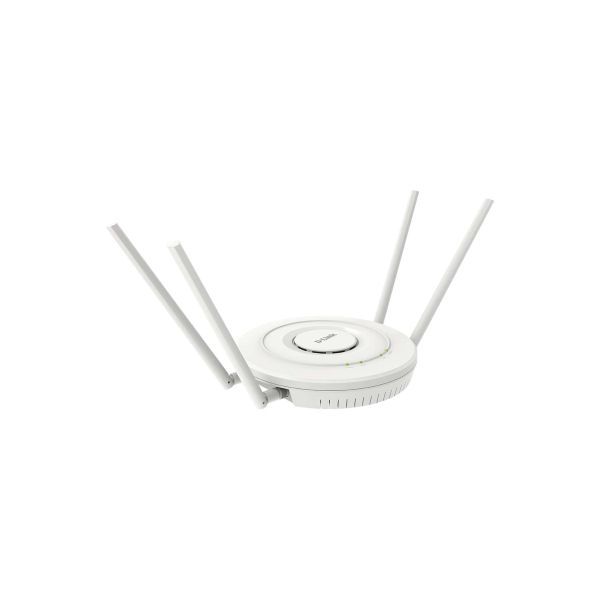

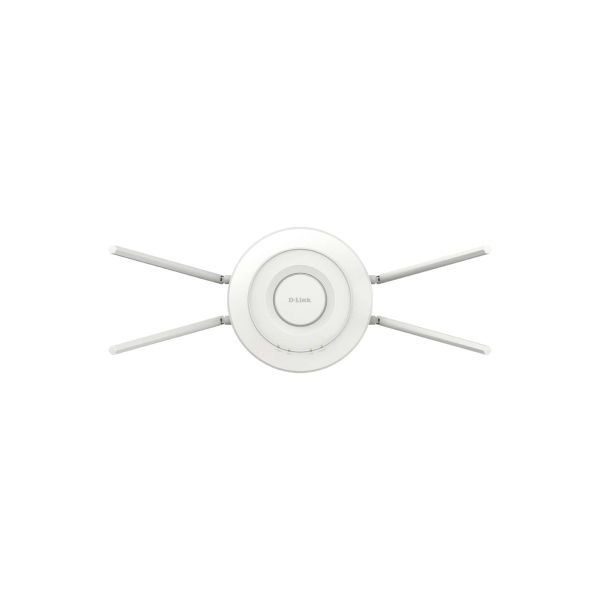

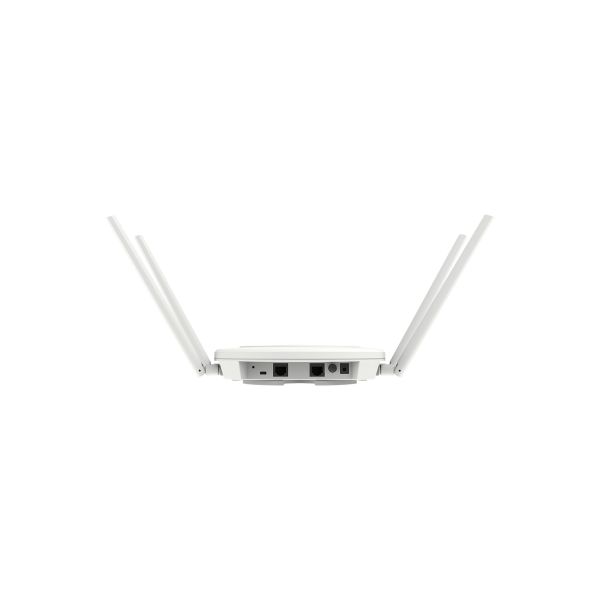

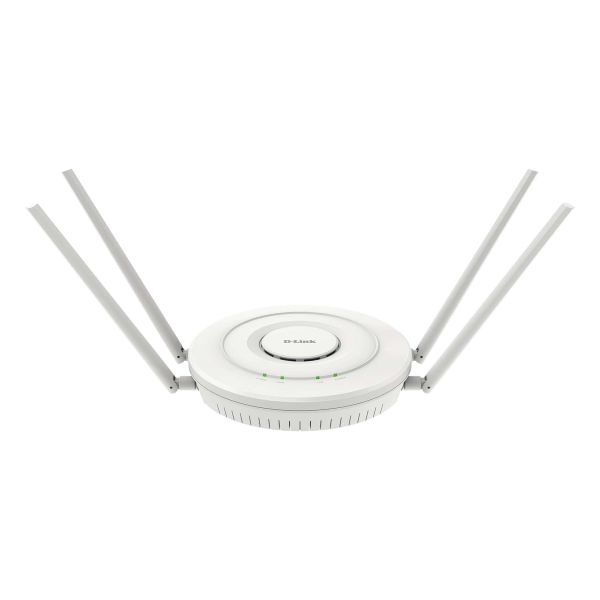

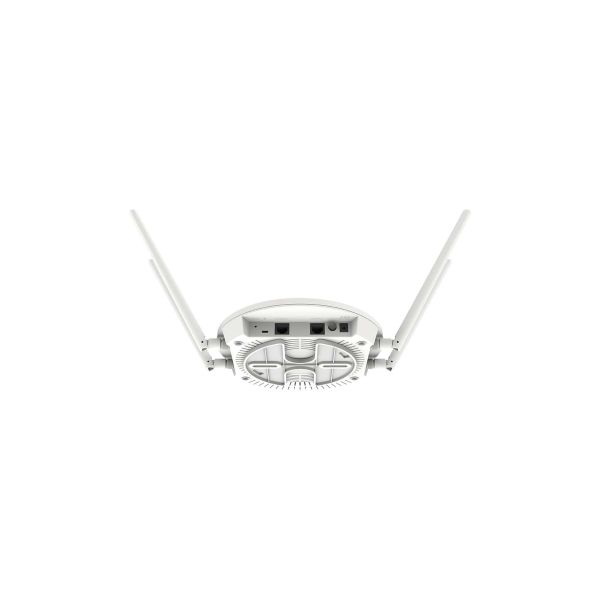

D-Link DWL-6610APE draadloos toegangspunt (WAP) 1200 Mbit/s Wit Power over Ethernet (PoE)

D-Link DWL-6610APE, 1200 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 2.4835, 5.15 - 5.85 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af, 165 kanalen, AES, HTTPS, SSH, SSID, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise

Niet op voorraad

MPN DWL-6610APE
EAN 0790069432590
€ 324,00 excl. BTW

D-Link DWL-6610APE draadloos toegangspunt (WAP) 1200 Mbit/s Wit Power over Ethernet (PoE)

Performance without Compromise
The DWL-6610APE is an affordable, Unified Wireless AC1200 Access Point, enabling businesses of all sizes create the fastest wireless network possible. With a sleek and stylish design, the DWL-6610APE can be discreetly deployed anywhere.

Wireless AC 1200
Maximum combined wireless speed of 1200 Mbps.

Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including station isolation.

Dual Band
Supports both 2.4Ghz and 5Ghz bands simultaneously.

Unified Wireless
Access points can be managed by unified wireless controller.

Smart Design
The DWL-6610APE can be mounted easily onto any wall or ceiling without looking out of place in an office or home. Enclosed in a plenum-rated UL2043 certified housing, the DWL-6610APE adheres to strict fire codes for placement in air passageways.

Band Steering technology
With band steering, the DWL-6610APE detects whether or not the wireless client is dual-band capable, and if so, it pushes the client to connect to the less congested 5 Ghz band. It does this by actively blocking the client’s attempts to associate with the 2.4 Ghz network.

Versatility Built as standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6610APE coupled with a D-Link Wireless Controller or Unified Switch makes managing your wireless network simple.

Secure and Green Design
The DWL-6610APE has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Fast Seamless Roaming
Combining the DWL-6610APE with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

Management platforms
D-Link’s Unified Wireless Access Points can be managed using a D-Link Wireless Controller or Unified Switch.
DWL-6610APE Management platforms

Simultaneous Dual-Band
Supports up to 867 Mbps 2x2 MIMO for the 5Ghz band and up to 300Mbps 2x2 MIMO for the 2.4Ghz band

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1200 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Frequentieband
2.4 - 2.4835, 5.15 - 5.85 GHz
Netwerkstandaard
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af
Aantal kanalen
165 kanalen
Wifi Multimedia (WMM)/(WME)
Ja
VLAN=ondersteuning
Ja
Quality of Service (QoS)
Ja

Beveiliging

Ondersteunde beveiligingsalgoritmen*
AES, HTTPS, SSH, SSID, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC adres filtering
Ja
Aantal SSID-ondersteuningen
32

Beheerfuncties

Web-gebaseerd management
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Energie

Power over Ethernet (PoE)*
Ja
Spanning
12 V
Output current
1,5 A
Vermogensverbruik (max)
10,2 W

Design

Plaatsing*
Tafel
Kleur van het product*
Wit
Materiaal behuizing
Kunststof
LED-indicatoren
Ja
Certificering
CE, FCC, IC, cUL+UL, LVD, RCM, NCC, BSMI, UL2043
Intern
Nee

Antenne

Antennefuncties
Afneembare antenne
Antennas quantity
4
Antenne versterkingsniveau (max)
4 dBi

Technische details

(Binnenste) verzendverpakking lengte
56,5 cm
(Binnenste) verzendverpakking breedte
34,3 cm
(Binnenste) verzendverpakking hoogte
27,5 cm
Nettogewicht transportverpakking
6,89 kg
Producten per (binnenste) verzendverpakking
6 stuk(s)
Pallet brutogewicht (lucht)
212,5 kg
Aantal dozen per pallet (lucht)
24 stuk(s)
Aantal per pallet (lucht)
144 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
123,5 cm
Pallet brutogewicht (zee)
347,3 kg
Aantal dozen per pallet (zee)
42 stuk(s)
Producten per pallet (zee)
252 stuk(s)
Pallethoogte (zee)
2,06 m
(Binnenste) verzendverpakking gewicht
7,79 kg

Gewicht en omvang

Breedte
205 mm
Hoogte
39 mm
Gewicht
476 g

Verpakking

Breedte verpakking
243 mm
Diepte verpakking
235 mm
Hoogte verpakking
90 mm
Gewicht verpakking
1,15 kg

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 65 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
