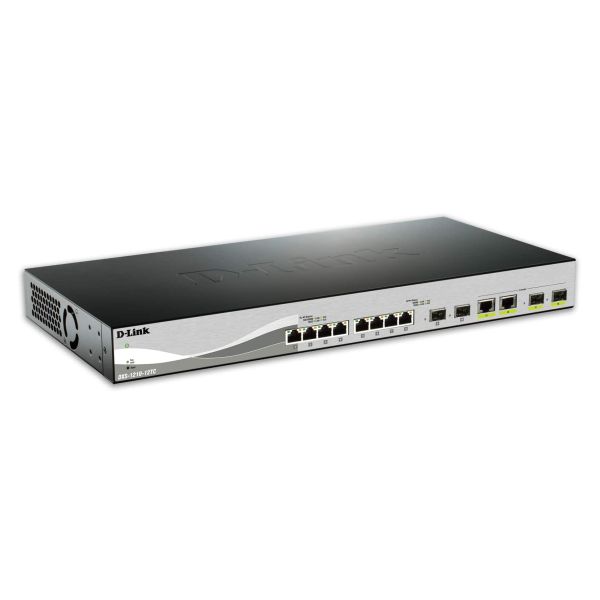

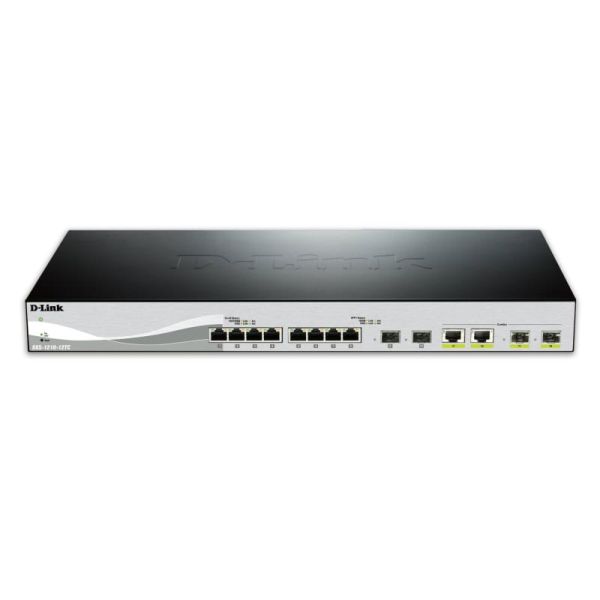

D-Link DXS-1210-12TC/E netwerk-switch Managed L2 10G Ethernet (100/1000/10000) 1U Zwart, Zilver

D-Link DXS-1210-12TC/E, Managed, L2, 10G Ethernet (100/1000/10000), Rack-montage, 1U

Ruim op voorraad

MPN DXS-1210-12TC/E
EAN 0790069467653
€ 1.483,00 excl. BTW

D-Link DXS-1210-12TC/E netwerk-switch Managed L2 10G Ethernet (100/1000/10000) 1U Zwart, Zilver

10 Gigabit Ethernet For Everyone
10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link’s DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.

Enterprise Functionality at Small Business Prices
Our DXS-1210 switches are a cost-effective solution capable of servicing a range of network needs in businesses of any size.

Flexibility without Compromise
Supporting 10 GBASE-T / SFP+ combo ports, they provide flexibility across a network allowing easier network integration, and with high-performance and low latency they fulfil the need for virtualisation, cloud services and server-to-server applications - perfect for small to medium sized businesses.

High Performance and Low Latency
D-Link’s DXS-1210 Series specifically delivers up to 238* Mbps Maximum Packet Forwarding Rate enabling simultaneous traffic processing on all ports at line rate without any packet loss.

Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.

Advanced Green Technology
The DXS-1210 Switch Series offers advanced green technology without sacrificing performance or functionality. We take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal moduleslots SPF+
2
Vezel-optische connector
SFP+
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support*
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
240 Gbit/s
Throughput
178,56 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja

Beveiliging

IGMP snooping
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart, Zilver
LED-indicatoren
Ja
Veiligheid
cUL, CB, CE, CCC, BSMI
Certificering
CE, FCC, C-Ticket, VCCI, BSMI, CCC

Technische details

(Binnenste) verzendverpakking hoogte
38,3 cm
(Binnenste) verzendverpakking breedte
31,4 cm
(Binnenste) verzendverpakking lengte
56,2 cm
Nettogewicht transportverpakking
13,4 kg
Producten per (binnenste) verzendverpakking
3 stuk(s)

Technische details

Pallet brutogewicht (lucht)
278,2 kg
Aantal dozen per pallet (lucht)
18 stuk(s)
Aantal per pallet (lucht)
54 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
128,4 cm
Pallet brutogewicht (zee)
451,2 kg
Aantal dozen per pallet (zee)
30 stuk(s)
Producten per pallet (zee)
90 stuk(s)
Pallethoogte (zee)
2,05 m
(Binnenste) verzendverpakking gewicht
14,4 kg

Energie

AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
90,81 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
210 mm
Diepte
440 mm
Hoogte
44 mm
Gewicht
3,15 kg

Verpakking

Breedte verpakking
349 mm
Diepte verpakking
546 mm
Hoogte verpakking
96 mm
Gewicht verpakking
4,48 kg

Duurzaamheid

Duurzaamheidscertificaten
ENERGY STAR

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
