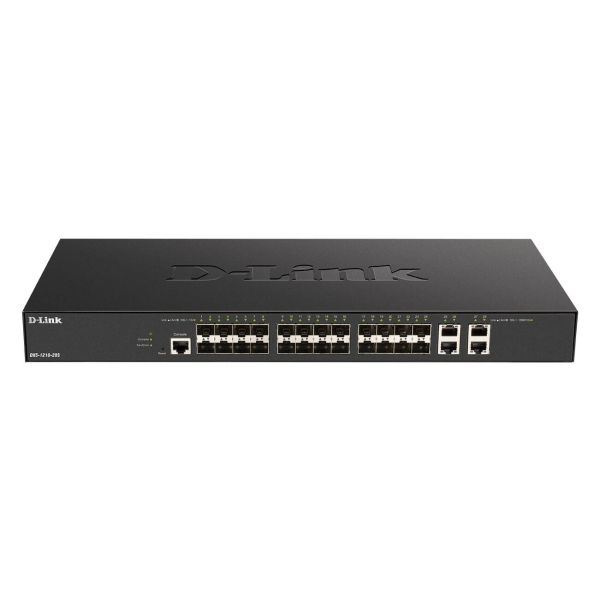

D-Link DXS-1210-28S netwerk-switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Zwart

D-Link DXS-1210-28S, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack-montage, 1U

Niet op voorraad

MPN DXS-1210-28S
EAN 0790069456817
€ 1.834,00 excl. BTW

D-Link DXS-1210-28S netwerk-switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Zwart

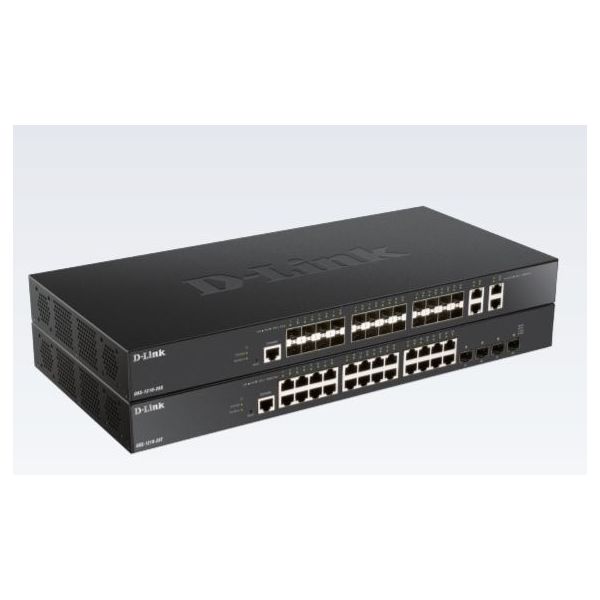

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
  • Access Control List
  • IP-MAC-Port Binding
  • Clientless MAC/Web Access Control
  • D-Link Safeguard Engine
  • Port Security
  • ARP Spoofing Prevention

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal 10G Ethernet (koper)poorten
4
Aantal moduleslots SPF+
24
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support*
Ja
Ondersteundende kabel types
Cat6, Cat6a, Cat7
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
560 Gbit/s
Throughput
416,64 Mpps
MAC-adrestabel*
32000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
256

Beveiliging

IGMP snooping
Ja

Protocollen

Beheerprotocollen
SNMP v1/v2c/v3
GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Snelheid
Aantal ventilatoren
2 ventilator(en)
Certificering
CE Class A FCC Class A VCCI Class A IC BSMI

Energie

AC-ingangsspanning
100 - 240 V
Vermogensverbruik (max)
85,7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
441 mm
Diepte
209,5 mm
Hoogte
44 mm
Gewicht
3,27 kg

Verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
