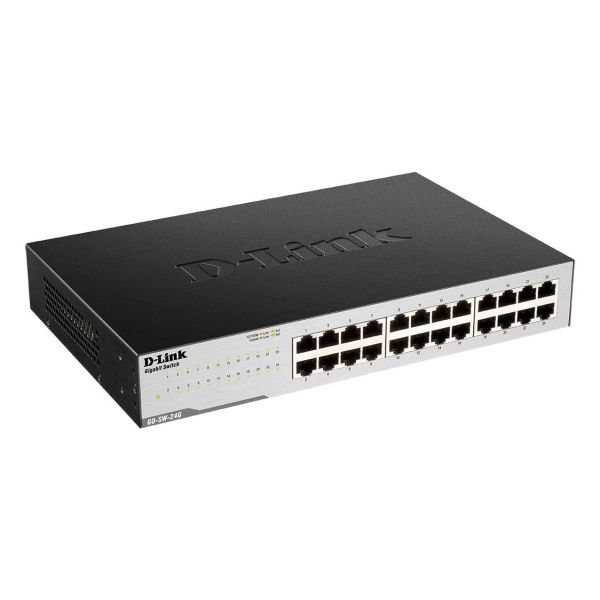

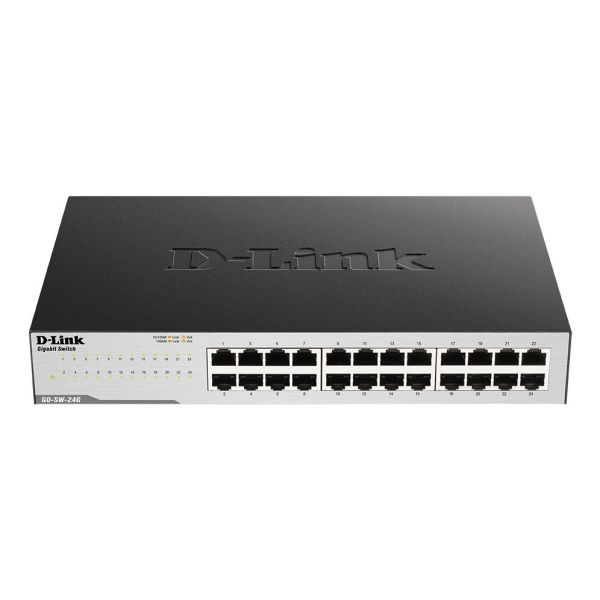

D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Zwart

D-Link GO-SW-24G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Ruim op voorraad (levering verwacht binnen 3 dagen)

MPN GO-SW-24G/E
EAN 0790069396625
€ 130,00 excl. BTW

D-Link GO-SW-24G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Zwart

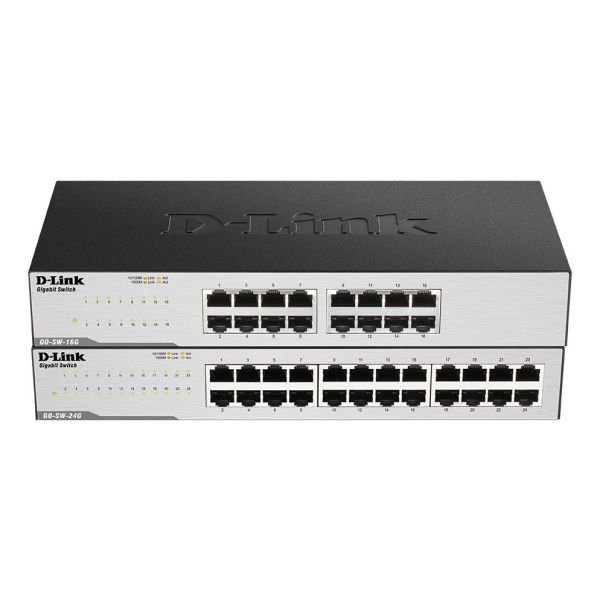

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.

Conserve Energy

The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24

Netwerk

Netwerkstandaard*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
48 Gbit/s
Verzending snelheid
35,71 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Aantal wachtrijen
8
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet buffergeheugen
0,512 MB

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC

Prestatie

Mean time between failures (MTBF)
302287 uur

Technische details

(Binnenste) verzendverpakking hoogte
27 cm
(Binnenste) verzendverpakking breedte
41,3 cm
(Binnenste) verzendverpakking lengte
46,3 cm
Nettogewicht transportverpakking
11,5 kg

Technische details

Producten per (binnenste) verzendverpakking
5 stuk(s)
Pallet brutogewicht (lucht)
373,6 kg
Aantal dozen per pallet (lucht)
28 stuk(s)
Aantal per pallet (lucht)
140 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
2,02 m
Pallet brutogewicht (zee)
373,6 kg
Aantal dozen per pallet (zee)
28 stuk(s)
Producten per pallet (zee)
140 stuk(s)
Pallethoogte (zee)
2,02 m
(Binnenste) verzendverpakking gewicht
12,4 kg

Energie

Vermogenstoevoer inclusief*
Ja
Redundante voeding
Nee
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
Vermogensverbruik (max)
15,4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
52,54 BTU/h

Gewicht en omvang

Breedte
280 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
1,35 kg

Verpakking

Breedte verpakking
245 mm
Diepte verpakking
438 mm
Hoogte verpakking
77 mm
Gewicht verpakking
2,3 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
