D-Link GO-SW-8G/E netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Wit

D-Link GO-SW-8G/E, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Ruim op voorraad

MPN GO-SW-8G/E
EAN 0790069365690
€ 23,00 excl. BTW

D-Link GO-SW-8G/E netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Wit

The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Connect All of Your Devices with Gigabit Speed

Expand your wired home network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.

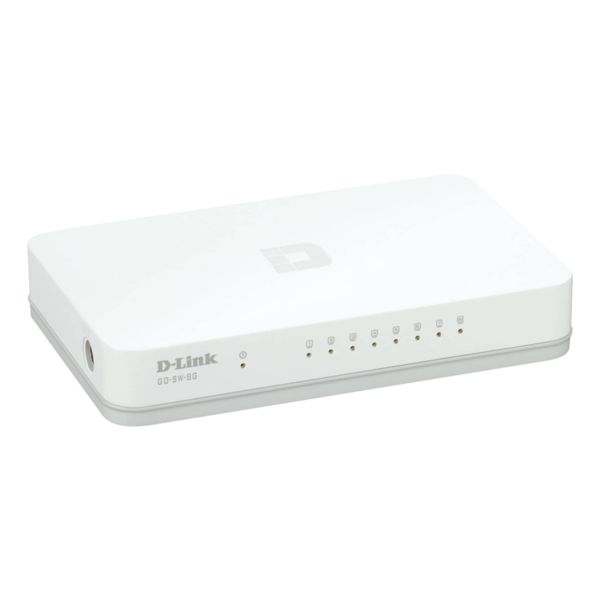

Compact Design

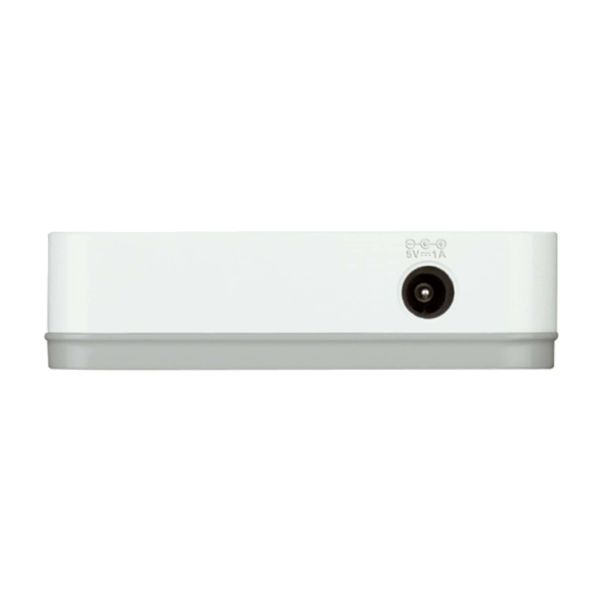

This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.

Effortless High Speed Networking

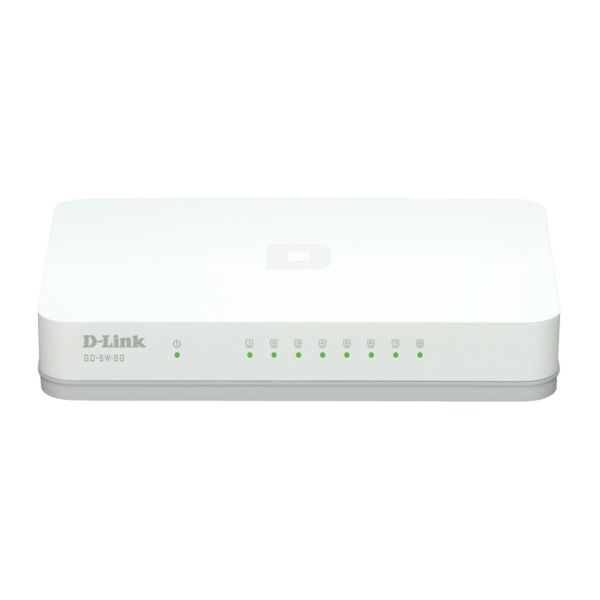

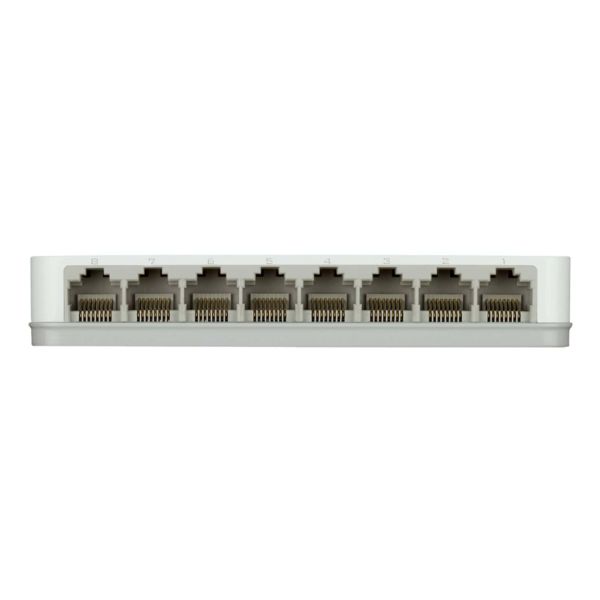

Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.

Plug and Play Installation

TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

D-Link Green Technology

The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
MAC-adres zelflerende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps

Protocollen

Ondersteunde netwerkprotocollen
CSMA/CD

Design

Rack-montage*
Nee
Kleur van het product
Wit
LED-indicatoren
Ja
Certificering
FCC cUL/UL ICES-003 CCC CE Anatel C-Tick LVD VCCI

Prestatie

Buffergrootte
128 KB
Mean time between failures (MTBF)
412433 uur

Technische details

(Binnenste) verzendverpakking hoogte
19,3 cm
(Binnenste) verzendverpakking breedte
23 cm
(Binnenste) verzendverpakking lengte
49,8 cm

Technische details

Nettogewicht transportverpakking
1,95 kg
Producten per (binnenste) verzendverpakking
10 stuk(s)
Pallet brutogewicht (lucht)
348,5 kg
Aantal dozen per pallet (lucht)
100 stuk(s)
Aantal per pallet (lucht)
1000 stuk(s)
Pallet brutolengte
110 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
2,06 m
Pallet brutogewicht (zee)
348,5 kg
Aantal dozen per pallet (zee)
100 stuk(s)
Producten per pallet (zee)
1000 stuk(s)
Pallethoogte (zee)
2,06 m
(Binnenste) verzendverpakking gewicht
3,3 kg

Energie

Spanning
5 V
Output current
1 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
128 mm
Diepte
68,5 mm
Hoogte
25,4 mm
Gewicht
195 g

Verpakking

Gebruiksaanwijzing
Ja
Inclusief AC-adapter
Ja
Breedte verpakking
104 mm
Diepte verpakking
158 mm
Hoogte verpakking
94 mm
Gewicht verpakking
281 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
