Datalogic Gryphon I GBT4132, Draagbare streepjescodelezer, 1D, 325 lezingen/s, -35 - 35°, -65 - 65°, -65 - 65°

Niet op voorraad

Fabrikant Datalogic
MPN GBT4132-BK-BTK1
EAN 4060533226755

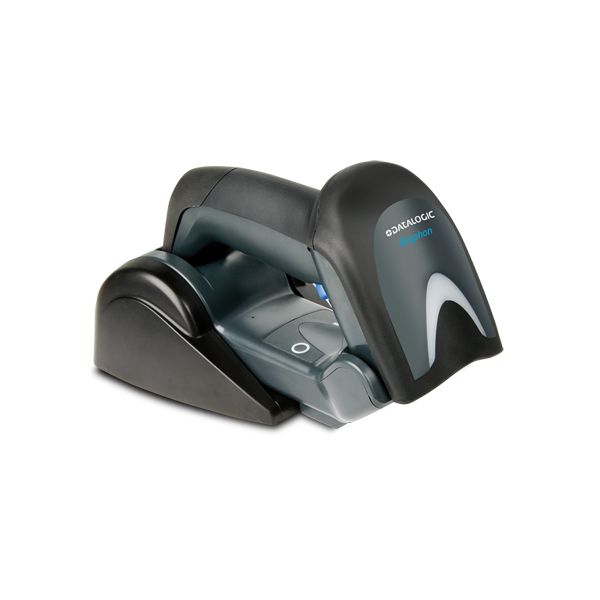

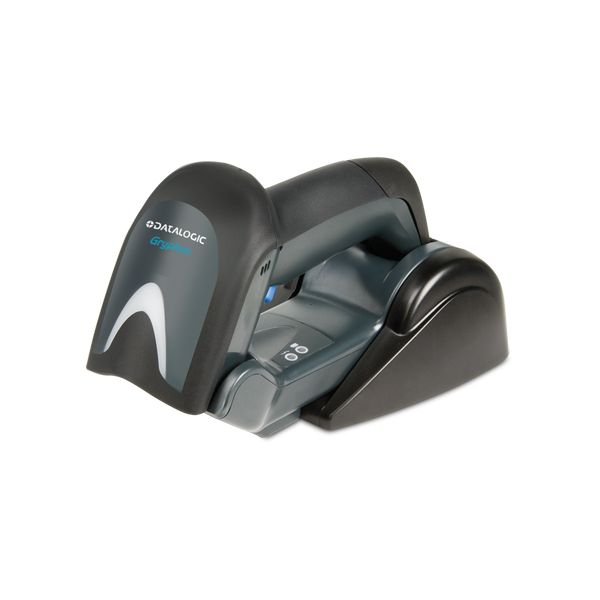

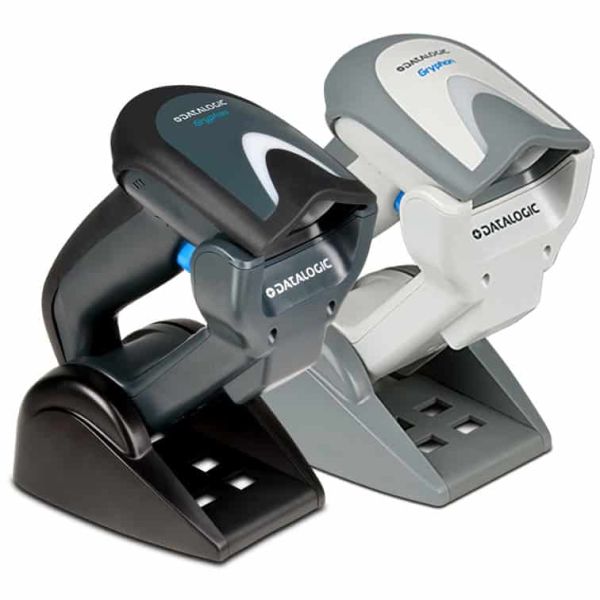

Datalogic Gryphon I GBT4132 Draagbare streepjescodelezer 1D Zwart, Grijs

Featuring Bluetooth® Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v2.0 compliant device. Datalogic’s unique 2-position cradle provides multiple features for the user. When in the ‘up’ position, this imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.

The Gryphon GBT4100 reader’s batch mode capability allows more than 1200 bar codes to be stored in the memory. Combined with a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range. Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models.
  • Fastest speed-to-read: 325 scans/second
  • Bluetooth Wireless Technology with up to 30 m / 98 ft range
  • Two-position cradle with Scan-While-Charging capability

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D
Lees-snelheid (max)
325 lezingen/s
Tilt lees-hoek
-35 - 35°
Pitch lees-hoek
-65 - 65°
Yaw lees-hoek
-65 - 65°

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad en draadloos
Standaard interfaces*
Bluetooth, USB
Aansluitbereik
30 m
Bluetooth-versie
3.0+HS
Frequentie
2400 MHz

Prestatie

Internationale veiligheidscode (IP)
IP52
LED-indicatoren
Ja
Kleur van het product*
Zwart, Grijs

Energie

Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)

Energie

Capaciteit van de accu/batterij
2100 mAh
Aantal lezingen per inzet
33000
Oplaadtijd
4 uur

Gewicht en omvang

Breedte
71 mm
Diepte
100 mm
Hoogte
181 mm

Verpakking

Meegeleverde kabels
USB
Oplaadstation
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
