Datalogic Gryphon I GD4520, Draagbare streepjescodelezer, 1D/2D, Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code, 1280 x 800 Pixels, 0 - 100000 Lux, 650 nm

Ruim op voorraad

Fabrikant Datalogic
MPN GD4520-BKK1B
EAN 5706998335319

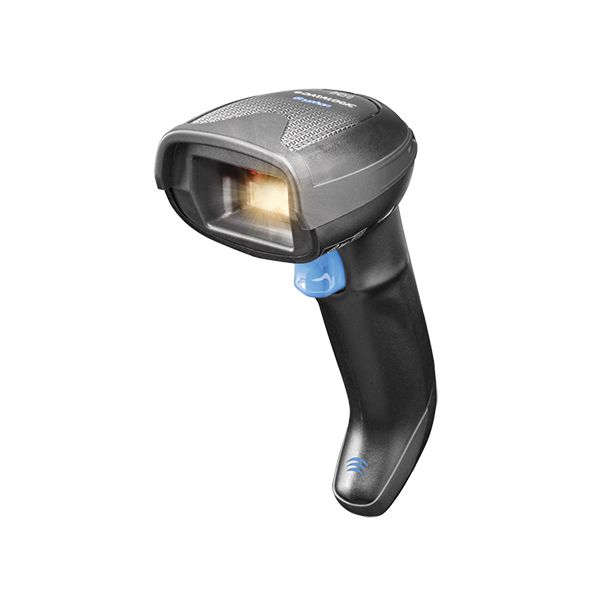

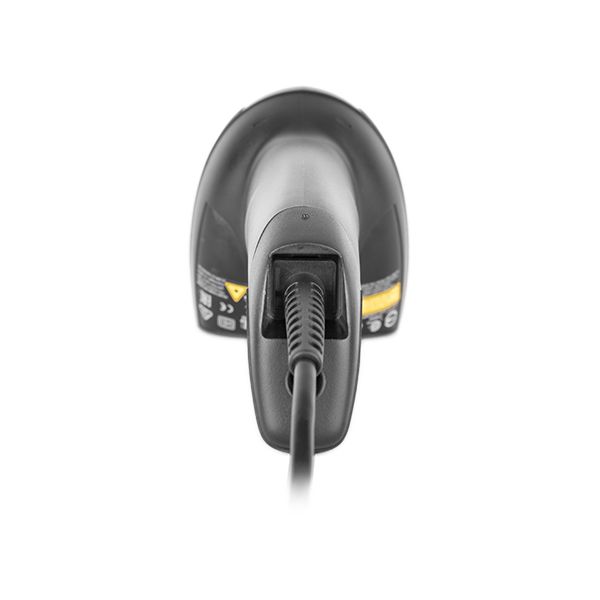

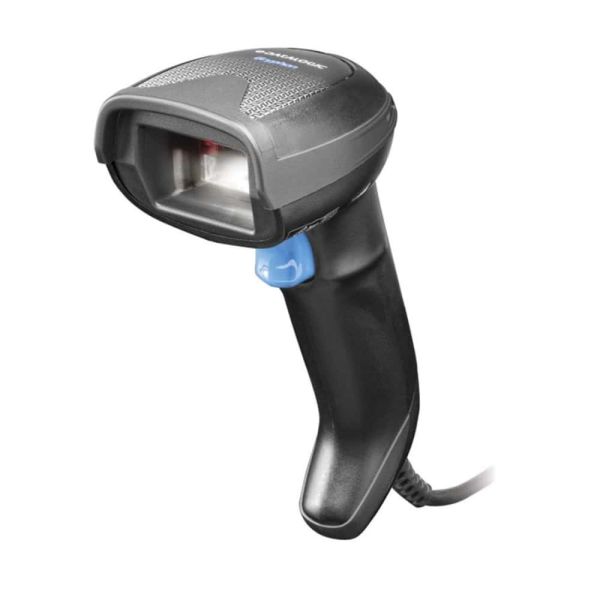

Datalogic Gryphon I GD4520 Draagbare streepjescodelezer 1D/2D Zwart

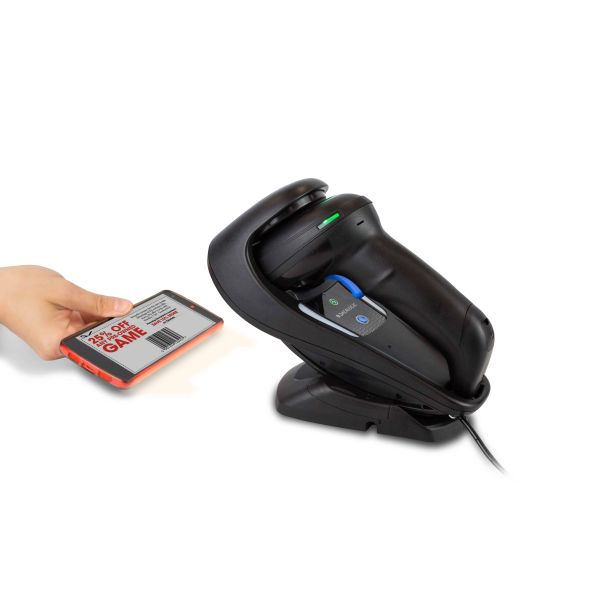

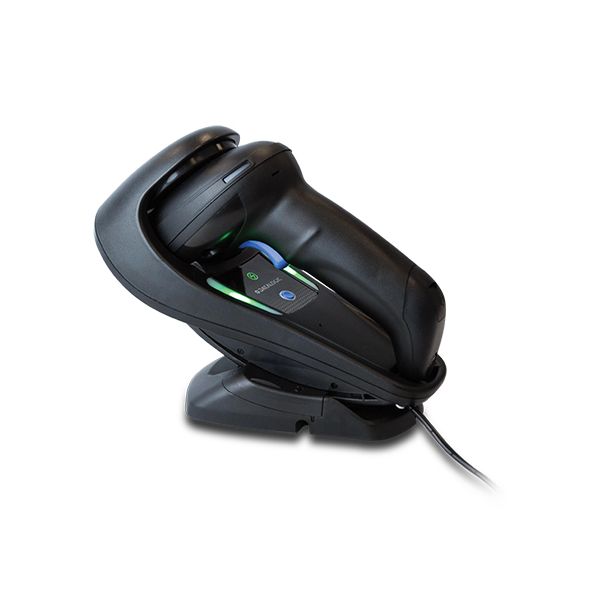

Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258.

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

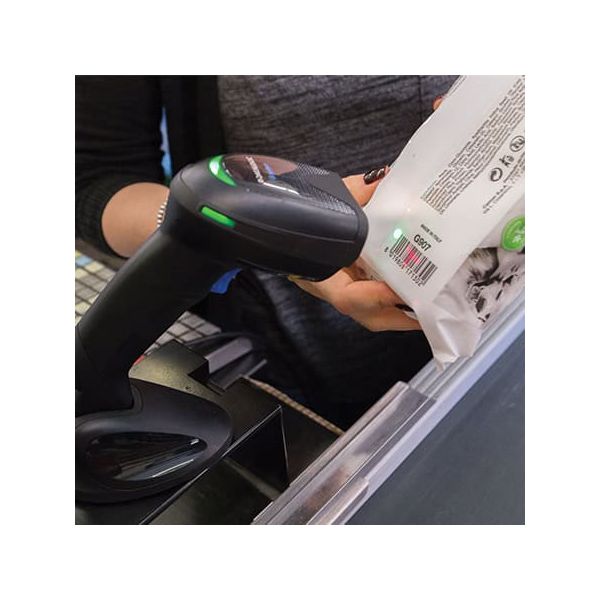

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D/2D
2D ( matrix en gestapeld ) barcodes ondersteund*
Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Resolutie optische sensor (WxH)
1280 x 800 Pixels
Licht niveaus (direct zonlicht)
0 - 100000 Lux
Golflengte
650 nm
Tilt lees-hoek
0 - 360°
Pitch lees-hoek
-65 - 65°
Bewegingstolerantie (cm/s)
88,9

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Standaard interfaces*
USB

Prestatie

Internationale veiligheidscode (IP)
IP52
Veiligheidsfunties
Schokbestendig
Ondersteund beeldformaat
TIFF, BMP, JPEG
Kleur van het product*
Zwart
Certificering
IEC 60825 Class 2

Energie

Type stroombron*
DC

Energie

Ingangsspanning
5 V
Stroomverbruik
300 mA

Gewicht en omvang

Breedte
68 mm
Diepte
109 mm
Hoogte
166 mm
Gewicht*
161 g

Verpakking

Meegeleverde kabels
USB
Oplaadstation
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
