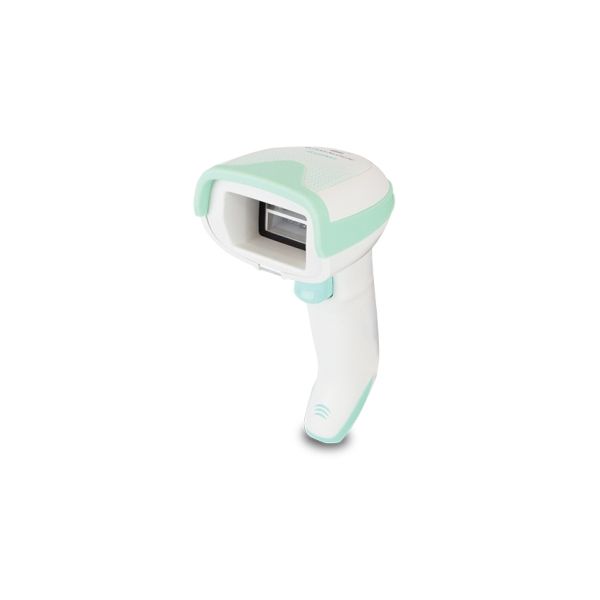

Datalogic Gryphon GM4500 Draagbare streepjescodelezer 1D/2D Laser Zwart

Datalogic Gryphon GM4500, Draagbare streepjescodelezer, 1D/2D, Laser, Datamatrix, GS1 DataBar Expanded Stacked, GS1 DataBar Gestapeld Omnidirectioneel, MaxiCode, Micro..., 1280 x 800 Pixels, 0 - 100000 Lux

Niet op voorraad

Fabrikant Datalogic
MPN GM4500-HC-433-WLC
EAN 5704174586753
€ 389,00 excl. BTW

Datalogic Gryphon GM4500 Draagbare streepjescodelezer 1D/2D Laser Zwart

THE PURPOSE OF BAR CODE READERS IN THE HEALTHCARE INDUSTRY
The key mission of scanners in the healthcare industry is to improve the quality of patient care while reducing medication errors. Additionally, healthcare environments have requirements that
scanners need to be regularly cleaned and disinfected. The Datalogic Gryphon™ HC product series is specifically developed for healthcare applications with Disinfectant-Ready enclosures treated with antimicrobial additives and are designed to withstand daily cleaning with harsh disinfectant solutions.

The Gryphon 4500-HC 2D readers can decode virtually any 1D and 2D bar code symbology and can read codes from LCD monitors, cell phones, smartphones and other mobile devices. High Density (HD) models are also available for reading smaller, condensed codes.

Ideally suited for stationary applications in administration, laboratory and hospital environments, the GD4500-HC 2D desktop model offers an affordable corded solution, while the GM4500-HC 2D or GBT4500-HC 2D cordless models (STAR or Bluetooth®) provide extended mobility for cordless operations.

Datalogic’s distinctive reading technology with highly visible white or red-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer provides a clear indication of the reading area, making targeting codes quick and easy. Datalogic’s patented ‘Green Spot’ technology provides additional visual good-read confirmation which is ideal for quiet environments such as bedside patient care.

The vibration option coupled with the silent operating mode can also be set to further increase the patients’ comfort. One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or
maintenance procedures).
  • Disinfectant-Ready enclosures treated with anti-microbial additives (ISO22196 compliant) withstand daily cleaning with harsh disinfectant solutions
  • 1 MP optics for superior scanning and Depth of Field
  • Extended reading distances and snappy reading of small, condensed, curved, poorly printed, and reflective bar codes
  • Highly visible 4-Dot aimer with center cross for targeted scanning
  • Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback
  • Motionix™ motion-sensing technology for seamless reading mode transitions
  • Image capture and document scanning capabilities
  • Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes
  • Choice of Bluetooth wireless technology version or Datalogic’s STAR
  • Cordless System (radio frequencies available in 433 MHz or 910 MHz)
  • Wireless battery charging system
  • Choice of WLC4090 adjustable position cradle with Scan-While-Charging capability or
  • WLC4190 sleek desk/wall cradle with USB Type C connectivity

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D/2D
Type beeldsensor*
Laser
2D ( matrix en gestapeld ) barcodes ondersteund*
Datamatrix, GS1 DataBar Expanded Stacked, GS1 DataBar Gestapeld Omnidirectioneel, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Resolutie optische sensor (WxH)
1280 x 800 Pixels
Licht niveaus (direct zonlicht)
0 - 100000 Lux
Golflengte
650 nm
Tilt lees-hoek
0 - 360°
Pitch lees-hoek
-65 - 65°
Yaw lees-hoek
-65 - 65°

Poorten & interfaces

Connectiviteitstechnologie*
Draadloos
Standaard interfaces*
RF Draadloos
Aansluitbereik
50 m
Frequentie
433 MHz

Prestatie

Internationale veiligheidscode (IP)
IP52
Veiligheidsfunties
Chemisch bestendig
Ondersteund beeldformaat
BMP, JPEG, TIFF
Kleur van het product*
Zwart

Energie

Type stroombron*
Batterij/Accu
Batterijtechnologie
Lithium-Ion (Li-Ion)
Capaciteit van de accu/batterij
3250 mAh
Accu/Batterij voltage
12 V
Aantal lezingen per inzet
80000
Oplaadtijd
4 uur
Ingangsspanning
4.5 - 14 V

Gewicht en omvang

Breedte
109 mm
Diepte
68 mm
Hoogte
152 mm
Gewicht*
235 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
