Datalogic Heron HD3430 Kit Draagbare streepjescodelezer 1D/2D CMOS Zwart, Zilver
Datalogic Heron HD3430 Kit, Draagbare streepjescodelezer, 1D/2D, CMOS, GS1-128 (UCC/EAN-128), Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code, 0 - 100000 Lux
Nog 16 beschikbaar
Fabrikant
Datalogic
MPN
HD3430-BKK1S
EAN
5711783841890
€ 238,00
excl. BTW
€ 238,00
excl. BTW
excl. BTW

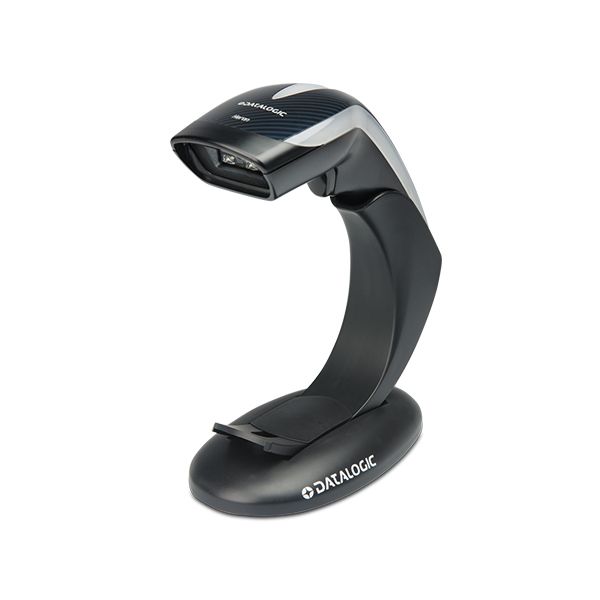

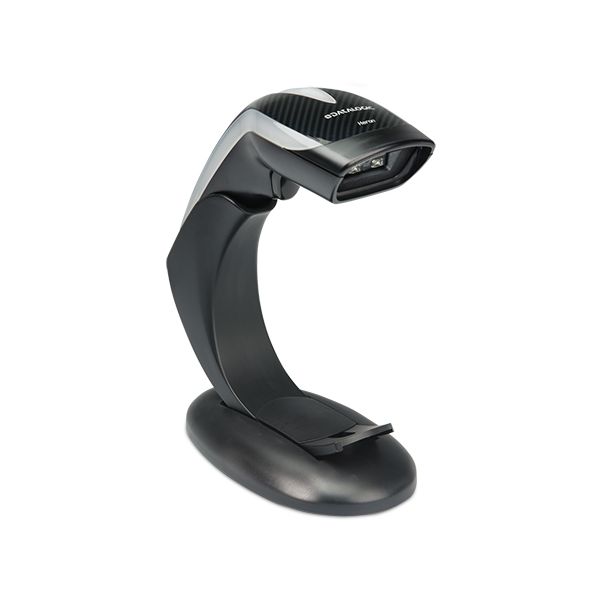

Datalogic Heron HD3430 Kit Draagbare streepjescodelezer 1D/2D CMOS Zwart, Zilver
HERON 3400
The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented 'Green Spot' technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented 'Green Spot' technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Scannen
Soort*
Draagbare streepjescodelezer
Soort scanner*
1D/2D
Type beeldsensor*
CMOS
Ondersteunde streepjescodes (1D)*
GS1-128 (UCC/EAN-128)
2D ( matrix en gestapeld ) barcodes ondersteund*
Aztec Code, Datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Licht niveaus (direct zonlicht)
0 - 100000 Lux
Tilt lees-hoek
0 - 360°
Pitch lees-hoek
-65 - 65°
Yaw lees-hoek
-60 - 60°
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Standaard interfaces*
USB, RS-232
USB-versie
2.0
Prestatie
Internationale veiligheidscode (IP)
IP40
LED-indicatoren
Ja
Kleur van het product*
Zwart, Zilver
Programmeringsfunctie
Ja
Energie
Type stroombron*
Batterij/Accu
Ingangsspanning
5 V
Stroomverbruik
500 mA
Gewicht en omvang
Breedte
68 mm
Diepte
153 mm
Hoogte
152 mm
Gewicht*
150 g
Verpakking
Meegeleverde kabels
USB
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Technische details
Duurzaamheidscertificaten
RoHS
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84716070
