Datalogic PowerScan PM9100, Draagbare streepjescodelezer, 1D, LED, Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar..., -45 - 45°, -75 - 75°

Niet op voorraad

Fabrikant Datalogic
MPN PM9100-D433RBK20
EAN 5704174237327

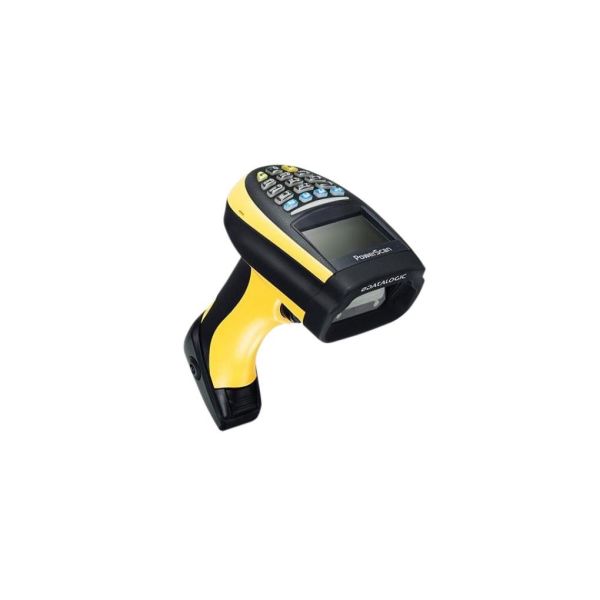

Datalogic PowerScan PM9100 Draagbare streepjescodelezer 1D LED Zwart, Geel

The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.

The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.

The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.

All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D
Type beeldsensor*
LED
Ondersteunde streepjescodes (1D)*
Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Niet ondersteund
Tilt lees-hoek
-45 - 45°
Pitch lees-hoek
-75 - 75°
Yaw lees-hoek
-70 - 70°

Poorten & interfaces

Standaard interfaces*
RS-232
Aansluitbereik
50 m
Frequentie
433 MHz

Prestatie

Internationale veiligheidscode (IP)
IP65
Veiligheidsfunties
Schokbestendig
Aantal toetsen
4 toetsen
LED-indicatoren
Ja
Ingebouwd display
Ja
Resolutie
48 x 132 Pixels
Display met achtergrondverlichting
Ja
Kleur van het product*
Zwart, Geel

Energie

Type stroombron*
Batterij/Accu

Energie

Batterijtechnologie
Lithium-Ion (Li-Ion)
Capaciteit van de accu/batterij
2150 mAh
Aantal lezingen per inzet
50000
Levensduur batterij
4 uur
Ingangsspanning
10 - 30 V
Stroomverbruik
500 mA

Gewicht en omvang

Breedte
212 mm
Diepte
110 mm
Hoogte
74 mm
Gewicht*
435 g
Afmetingen basisstation
240 x 108 x 95 mm

Verpakking

Meegeleverde kabels
RS-232

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
