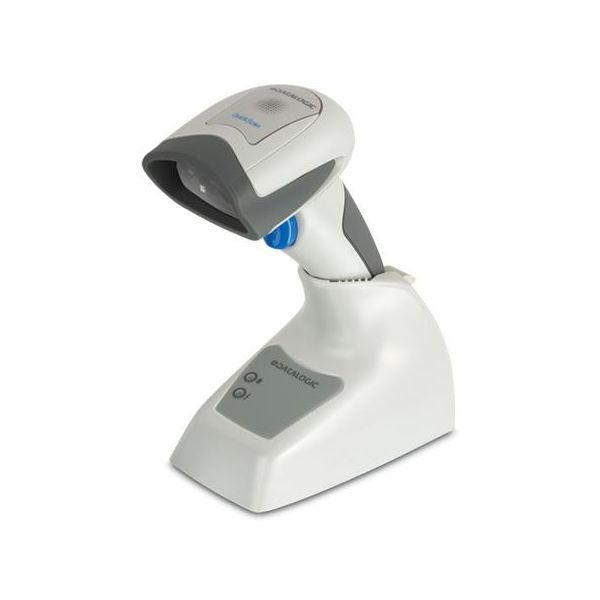

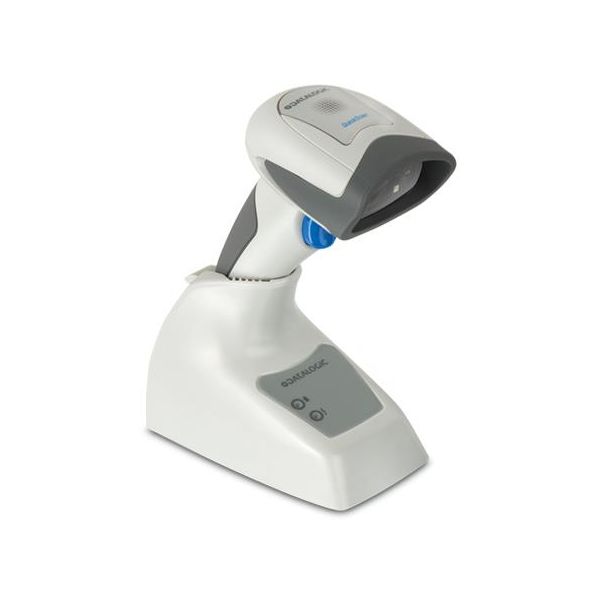

Datalogic QuickScan Mobile QM2430 Draagbare streepjescodelezer 1D/2D Wit

Datalogic QuickScan Mobile QM2430, Draagbare streepjescodelezer, 1D/2D, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, U.P.C., Aztec Code, Datamatrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 16 cm, 0 - 100000 Lux

Ruim op voorraad

Fabrikant Datalogic
MPN QM2500-BK-433
EAN 4054843760955
€ 174,00 excl. BTW

Datalogic QuickScan Mobile QM2430 Draagbare streepjescodelezer 1D/2D Wit

The QuickScan™ QM2400 2D imager is the ideal cordless solution for multiple general purpose data collection applications such as POS Checkout, Inventory, Price Checking and Shelf Replenishment. It is also excellent for Access Control applications in exhibitions, trades shows and other similar indoor events.

Featuring Datalogic’s STAR Cordless System™ 2.0, the QuickScan QM2400 2D provides a simple point-to-point connection with secure radio communications with no risk of interference with Wi-Fi infrastructures and very low sensitivity to obstacles.

The QuickScan QM2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.

With the popularity of 2D bar codes spreading across all market segments of the data capture industry, the QuickScan QM2400 2D imager enters the arena with more affordable pricing and virtually no drawbacks with area imaging technology. It is also capable of reading mobile phone displays and loyalty cards at the POS.

Features

- Datalogic’s STAR Cordless System™ 2.0 with up to 25.0 m / 82.0 ft range
- Secure interference-free radio communications with low sensitivity to obstacles
- Easy, tool-free, user-replaceable long lasting Lithium-Ion battery
- Alternative battery recharging through USB / Micro USB cable
- Latch mechanism secures the reader in the cradle providing stable mobility for use on carts
- Reduced visual stress with LED-based aiming system
- Datalogic’s patented ‘Green Spot’ technology for good-read feedback
- Batch Mode capability: 500+ linear codes can be stored in memory
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D/2D
Ondersteunde streepjescodes (1D)*
EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Aztec Code, Datamatrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Werkafstand
16 cm
Licht niveaus (direct zonlicht)
0 - 100000 Lux
Golflengte
650 nm

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Aansluitbereik
25 m
Frequentie
433 MHz

Prestatie

Materiaal behuizing
Kunststof
Internationale veiligheidscode (IP)
IP42
Aantal toetsen
1 toetsen
LED-indicatoren
Ja
Waarschuwingssignaal
Ja
Ingebouwd display
Nee
Kleur van het product*
Wit

Energie

Type stroombron*
Batterij/Accu

Energie

Batterijtechnologie
Lithium-Ion (Li-Ion)
Type batterij
Ingebouwde accu
Ondersteund aantal accu's/batterijen
1
Oplaadtijd
3 uur
Ingangsspanning
4.75 - 14 V

Gewicht en omvang

Breedte
41 mm
Diepte
91 mm
Hoogte
163 mm
Gewicht*
200 g
Gewicht basisstation
230 g

Verpakking

Meegeleverde kabels
Nee
Oplaadstation
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070
