Productinformatie

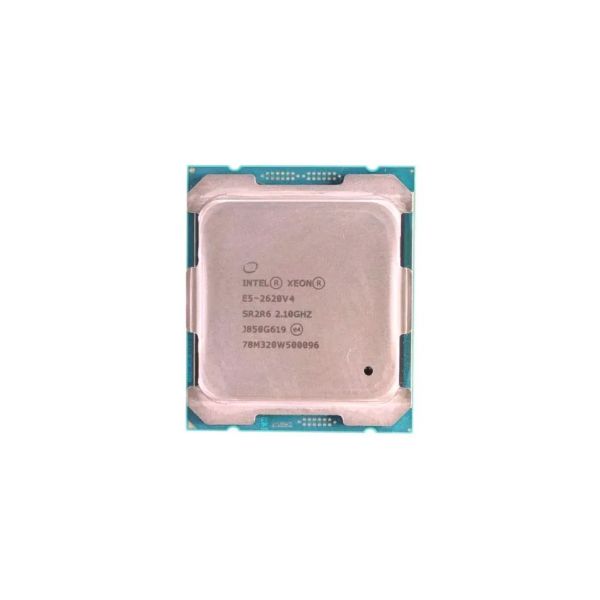

De Intel Xeon® E5-2620 v4 2.1 GHz Eight Core processor verbetert de prestaties en de snelheid van uw systeem. Bovendien maakt de Virtualization Technology de migratie van meer omgevingen mogelijk. De processor ondersteunt geavanceerde Speedstep® -technologie, waardoor een balans kan worden gevonden tussen prestaties en stroomverbruik. De Thermal Monitoring Technologies beschermen de processor en het systeem tegen thermische fouten via verschillende thermische beheerfuncties. De VT-x met uitgebreide paginatabellen (EPT), ook bekend als SLAT (Second Level Address Translation), zorgt voor versnelling van gevirtualiseerde applicaties die veel geheugen gebruiken. De Xeon E5-2620 v4 2.1 GHz processor zit boordevol functies en is de ideale keuze voor vrijwel alle veeleisende of standaardapplicaties in uw bedrijfsinfrastructuur. Dit product is compatibel met de volgende systemen. - PowerEdge C4130 - PowerEdge C6320 - PowerEdge R430 - PowerEdge R530 - PowerEdge R630 - PowerEdge R730 - PowerEdge R730XD - PowerEdge R930 - PowerEdge T430 - PowerEdge T630.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Processor
Aantal processorkernen | 8 |
---|---|
Processorfamilie | Intel® Xeon® E5 v4 |
Processor socket | LGA 2011-v3 |
Component voor | Server/workstation |
Processormodel | E5-2620V4 |
Processor aantal threads | 16 |
Systeembus | 8 GT/s |
Processor operating modes | 64-bit |
Bus type | QPI |
aantal QPI links | 2 |
Stepping | R0 |
Frequentie van processor | 2,1 GHz |
Processor lithografie | 14 nm |
Maximale turbofrequentie van processor | 3 GHz |
Processor cache | 20 MB |
Processorserie | Intel Xeon E5-2600 v4 |
Processor cache type | Smart Cache |
Basisfrequentie processor | 2,1 GHz |
Component voor | Server/werkplaats |
Geheugen
ECC | Ja |
---|---|
Geheugen kanaal | Quad-channel |
Maximaal intern geheugen ondersteund door processor | 1536 GB |
Geheugentypen ondersteund door processor | DDR4-SDRAM |
Klokgeheugen-snelheden ondersteund door processor | 1600,1866,2133 MHz |
Geheugenbandbreedte ondersteund door de processor ( max) | 68,3 GB/s |
Geheugenkanalen ondersteund door processor | Quad |
ECC ondersteund door processor | Ja |
Grafisch
Ingebouwde grafische adapter | Nee |
---|---|
Ingebouwde grafische adapter | Nee |
Energie
VID Voltage Range | 0 - 0 V |
---|
Kenmerken
Idle States | Ja |
---|---|
Execute Disable Bit | Ja |
Thermal Monitoring Technologies | Ja |
PCI Express slots versie | 3.0 |
Ondersteunde instructie sets | AVX 2.0 |
Ingebouwde opties beschikbaar | Ja |
Graphics & IMC lithografie | 14 nm |
Schaalbaarheid | 2S |
Thermal Design Power (TDP) | 85 W |
Maximaal aantal PCI Express-lijnen | 40 |
Verpakkingsgrootte processor | 45 x 52.5 mm |
Processor speciale functies
Intel® Trusted Execution Technology | Ja |
---|---|
Intel® Flex Memory Access | Nee |
Enhanced Intel SpeedStep Technology | Ja |
Intel® Secure Key | Ja |
Intel® TSX-NI | Ja |
Intel® Demand Based Switching | Ja |
Intel® VT-x with Extended Page Tables (EPT) | Ja |
Intel® 64 | Ja |
Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
Intel® Virtualization Technology (VT-x) | Ja |
Conflictvrije processor | Ja |
Intel® Identity Protection Technology (Intel® IPT) | Nee |
Intel® AES New Instructions (Intel® AES-NI) | Ja |
Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
Intel® vPro™ Technology | Ja |
Intel® OS Guard | Ja |
Intel® Turbo Boost Technology | 2.0 |
Intel® vPro™ Platform Eligibility | Ja |
Conflictvrije processor | Ja |
Intel® vPro? Platform Eligibility | Ja |
Eisen aan de omgeving
Tcase | 74 °C |
---|
Overige specificaties
CPU configuratie (max) | 2 |
---|---|
Compatibiliteit | Intel® Server Board S2600CW2R Intel® Server Board S2600CW2SR Intel® Server Board S2600CWTR Intel® Server Board S2600CWTSR Intel® Server Board S2600KPR Intel® Server Board S2600KPFR Intel® Server Board S2600KPTR Intel® Server Board S2600TPR Intel® Server B |
Technische details
Marktsegment | Server |
---|
