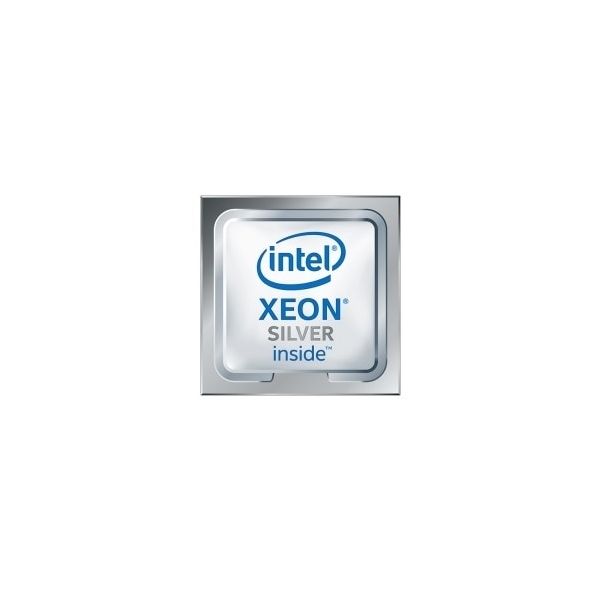

DELL Xeon Silver 4208 processor 2,1 GHz 11 MB

DELL Xeon Silver 4208, Intel® Xeon® Silver, LGA 3647 (Socket P), 14 nm, 2,1 GHz, 64-bit, 2e generatie Intel® Xeon® schaalbaar

Niet op voorraad

Fabrikant Dell
MPN 338-BSVU
EAN 5397184376188
€ 949,00 excl. BTW

DELL Xeon Silver 4208 processor 2,1 GHz 11 MB

The Intel Xeon® Silver 4208 2.1GHz Eight Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.

Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4208 2.1GHz Eight Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.

This product is compatible with the following systems:

- PowerEdge R640
- PowerEdge R740
- PowerEdge R740XD
- PowerEdge C6420
- Precision Workstation 7820 Tower
- PowerEdge R440
- PowerEdge T640
- PowerEdge T440
- PowerEdge FC640
- PowerEdge M640
- PowerEdge M640 VRTX
- Precision Workstation R7920
- Precision Workstation 7920 Tower
- PowerEdge R540
- PowerEdge MX740c
- PowerEdge XR2

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorgeneratie
2e generatie Intel® Xeon® schaalbaar
Processormodel*
4208
Basisfrequentie processor*
2,1 GHz
Processorfamilie*
Intel® Xeon® Silver
Aantal processorkernen*
8
Processor socket*
LGA 3647 (Socket P)
Component voor
Server/werkplaats
Processor lithografie*
14 nm
Processor aantal threads
16
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
3,2 GHz
Processor cache
11 MB
Thermal Design Power (TDP)
85 W
Codenaam processor
Cascade Lake
ARK ID processor
193390

Geheugen

Maximaal intern geheugen ondersteund door processor
1024 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2400 MHz
Geheugen kanaal*
Zeskanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Nee
Aparte grafische adapter*
Nee
On-board graphics adapter model*
Niet beschikbaar
Discreet grafische adapter model*
Niet beschikbaar

Kenmerken

Execute Disable Bit
Ja
Marktsegment
Server
Maximaal aantal PCI Express-lijnen
48
PCI Express slots versie
3.0
Ondersteunde instructie sets
AVX-512
Schaalbaarheid
2S
Ingebouwde opties beschikbaar
Nee
PCI Express CEM revisie
3.0

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
2.0

Processor speciale functies

Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Speed Shift-technologie
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® TSX-NI
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Turbo Boost Max Technology 3.0
Nee
AVX-512 Fused Multiply-Add (FMA) eenheden
1
Intel® Deep Learning Boost (Intel® DL Boost)
Ja
Intel® Speed Select-technologie - Prestatieprofiel (Intel® SST-PP)
Nee
Intel® Resource Director-technologie (Intel® RDT)
Ja
Intel® Volume Management Device (VMD)
Ja
Intel® Run Sure-technologie
Nee
Mode-based Execute Control (MBE)
Ja
Intel® Optane™ DC Persistent Memory ondersteunt
Nee
Intel® vPro™ Platform Eligibility
Ja
Intel Speed Select-technologie (SST)
Nee
Intel® Speed Select-technologie - Basisfrequentie (Intel® SST-BF)
Nee
Intel® Optane™ DC Persistent Memory-technologie
Nee

Eisen aan de omgeving

Tcase
78 °C

Technische details

Lanceringsdatum
Q2'19
Type product
Processor
Status
Launched
Geheugensnelheid (max)
2400 MHz
Aantal UPI-koppelingen
2

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Gewicht en omvang

Verpakkingsgrootte processor
76.0 x 56.5 mm

Overige specificaties

Compatibiliteit
- PowerEdge C6420 - PowerEdge FC640 - PowerEdge M640 - PowerEdge M640 VRTX - PowerEdge MX740C - PowerEdge R440 - PowerEdge R540 - PowerEdge R640 - PowerEdge R740 - PowerEdge R740XD - PowerEdge T440 - PowerEdge T640 - PowerEdge XR2
