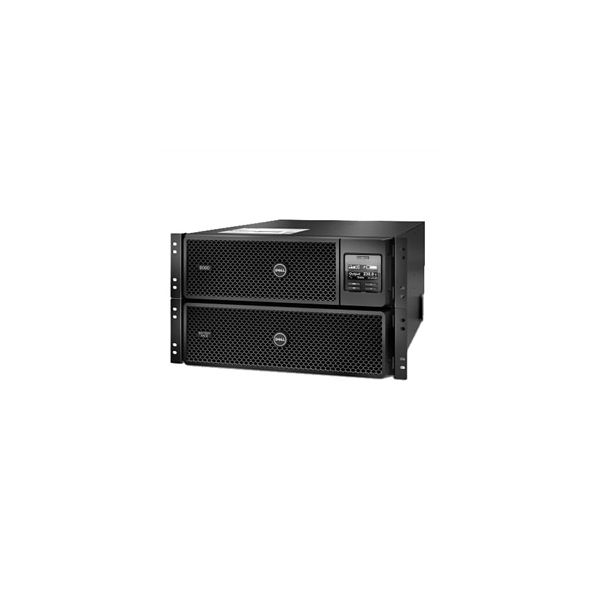

DELL DLRT8KRMXLI UPS Dubbele conversie (online) 8 kVA 8000 W 12 AC-uitgang(en)

DELL DLRT8KRMXLI, Dubbele conversie (online), 8 kVA, 8000 W, Sinus, 230 V, 400 V

Niet op voorraad

Fabrikant Dell
MPN A8515711
EAN 0731304322047
€ 7.475,00 excl. BTW

DELL DLRT8KRMXLI UPS Dubbele conversie (online) 8 kVA 8000 W 12 AC-uitgang(en)

Dell Smart UPS - 8KVA.8KWatts - Rack/TWR
  • LCD graphics display
  • 10/100 BaseT Connection
  • Green mode
  • Battery failure notification
  • Automatic internal bypass
  • Scalable runtime
  • Intelligent battery management
  • Hot-swappable batteries
  • Automatic restart of loads after UPS shutdown
  • Temperature-compensated battery charging
  • Network manageable
  • InfraStruXure Manager Compatible
  • SmartSlot
  • LED status indicators
  • Serial connectivity
  • Plug-and-Play external batteries
  • Rack/Tower convertible
  • Flash upgradeable firmware
  • User-replaceable batteries
  • Automatic self-test
  • Predictive failure notification
  • Disconnected battery notification
  • Audible alarms
  • Frequency and voltage regulation
  • Power conditioning
  • Input power factor correction
  • Generator compatible
  • Cold-start capable
  • Resettable circuit breaker
  • Safety-agency approved

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
8 kVA
Uitgangsvermogen*
8000 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
230 V
Ingang operation voltage (max)*
400 V
Frequentie*
40/70 Hz
Uitgang operation voltage (max)
230 V
Output frequentie
50/60 Hz
Surge energy rating
480 J
Aantal input fases
3
Crest factor
3:1
Emergency Power Off (EPO)
Ja
Output voltage THD
2 procent
Geluidsniveau
55 dB
Geluidsalarm(en)
Ja
Hoorbare alarmstanden
Storing
Auto-herstart
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker, Hard Wire 3-wire (2PH + G), Hard Wire 5-wire (3PH + N + G)
Aantal AC uitgangen
12 AC-uitgang(en)
Number of output IEC jumpers
3
USB-poort
Ja
Seriële interface
Ja
Seriële poort(en)
1
Aantal Ethernet LAN (RJ-45)-poorten
1
Bekabelingstechnologie
10/100Base-T
Noodstop-aansluiting (EPO)
Ja
SmartSlot
Ja

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
1728 Ah

Accu/Batterij

Acculevensduur (max)
5 jaar
Accu/Batterij oplaadtijd
1,5 uur
Hot-swap batterij
Ja
Automatische batterij test
Ja
Koude start
Ja
Vervangings-batterij cartridge
APCRBC140

Design

Vormfactor*
Rackmontage
Rackcapaciteit
6U
Kleur van het product*
Zwart
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20
Certificering
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 15000 m

Technische details

Duurzaamheidscertificaten
RoHS, ENERGY STAR

Gewicht en omvang

Breedte
432 mm
Diepte
715 mm
Hoogte
263 mm
Gewicht
111,8 kg
Breedte verpakking
600 mm
Diepte verpakking
1000 mm
Hoogte verpakking
461 mm
Gewicht verpakking
130 kg
