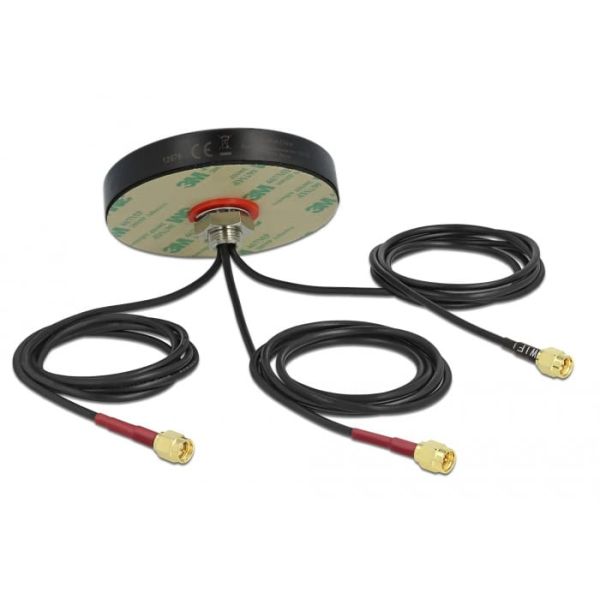

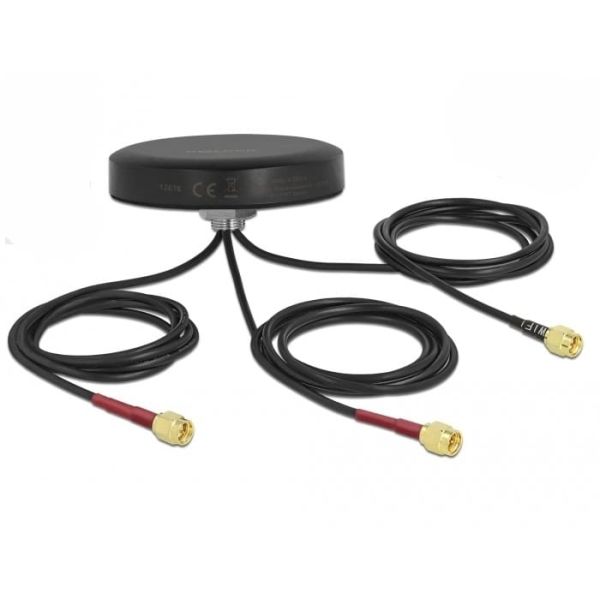

DeLOCK 12676 antenne SMA 3 dBi

DeLOCK 12676, 3 dBi, 0.698-0.96; 1.71-2.69; 2.4-2.483; 4.9-5.825 GHz, 50 Ohm, SMA, Lineaire polarisatie, 2,0/3,0

Ruim op voorraad

Fabrikant Delock
MPN 12676
EAN 4043619126767
€ 36,00 excl. BTW

DeLOCK 12676 antenne SMA 3 dBi

This antenna by Delock allows the usage of different LTE and WLAN bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band WLAN, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
0.698-0.96; 1.71-2.69; 2.4-2.483; 4.9-5.825 GHz
Impedantie
50 Ohm
Antenne versterkingsniveau (max)*
3 dBi

Kenmerken

Aansluiting antenne*
SMA
Polarisatie
Lineaire polarisatie
Voltage Standing Wave Ratio (VSWR)
2,0/3,0
Internationale veiligheidscode (IP)
IP67
Snoerlengte
1 m
Soort kabel
RG-174
Bedoeld voor
Buiten
Land van herkomst
China
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS)

Kenmerken

Kleur van het product
Zwart

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 85 °C

Gewicht en omvang

Hoogte
16,3 mm
Diameter
8,13 cm

Inhoud van de verpakking

Aantal per verpakking
1 stuk(s)
Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
