DeLOCK 64148 interfacekaart/-adapter Intern PCIe

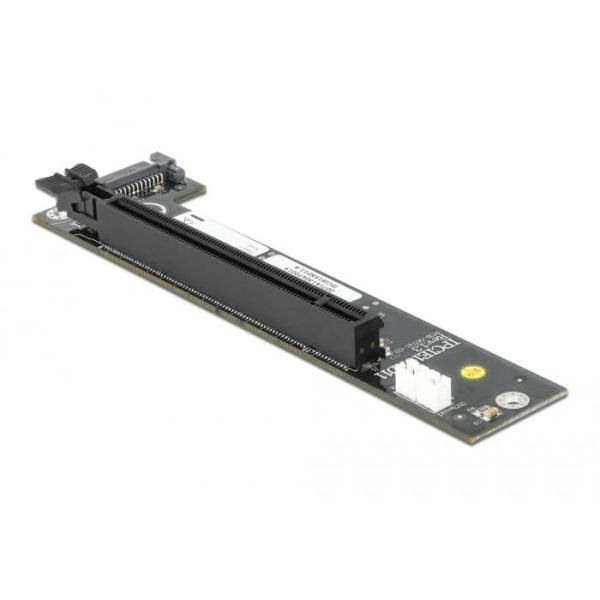

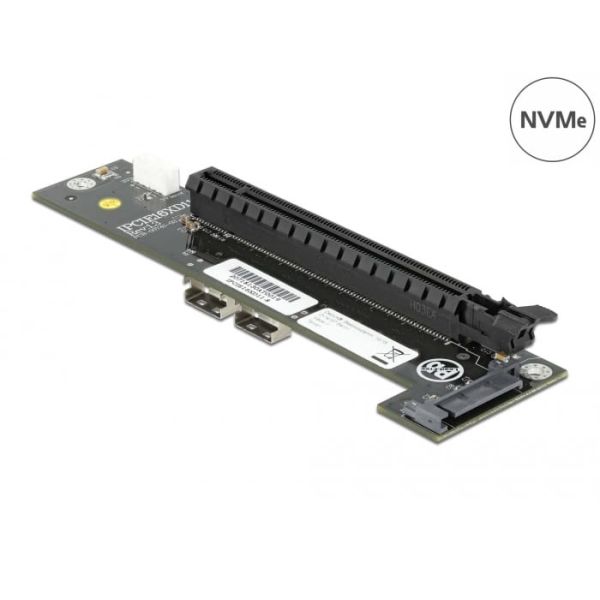

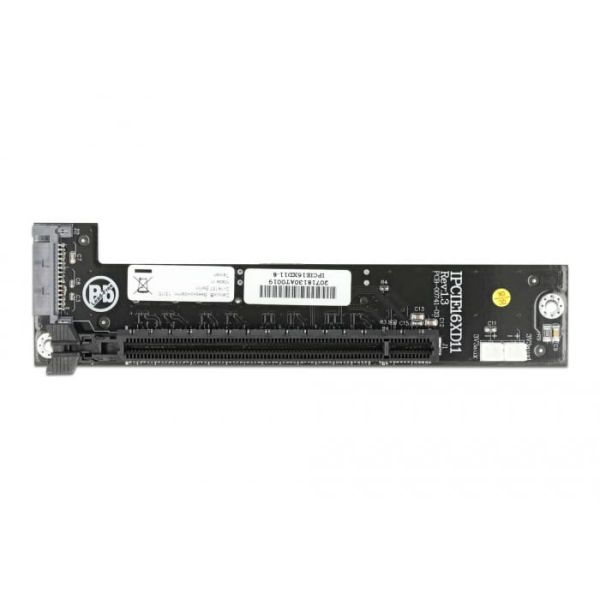

This converter by Delock can be connected via SFF-8654 interface to the system and provides a PCI Express x16 slot. Different PCI Express cards can be connected to the slot.

PCI Express x16 with 8 lanes
The converter supports four PCIe lanes per SFF-8654 port and thus offers a maximum of 8 lanes. Thus, it is possible to use the converter with only one SFF-8654 connector, if the respective PCI Express card only requires a maximum of four PCIe lanes.

PCIe Bifurcation
The converter can be connected to a PCI Express card, which has the PCIe bifurcation function to provide eight lanes (x4 + x4) on the PCIe x16 slot. This allows PCI Express cards with bifurcation function to be connected to the PCI Express slot of the converter, e.g. to connect two M.2 or U.2 SSDs.
