DeLOCK 84927, 1 m, Mini DisplayPort, DisplayPort, Mannelijk, Mannelijk, 7680 x 4320 Pixels

Ruim op voorraad

Fabrikant Delock
MPN 84927
EAN 4043619849277

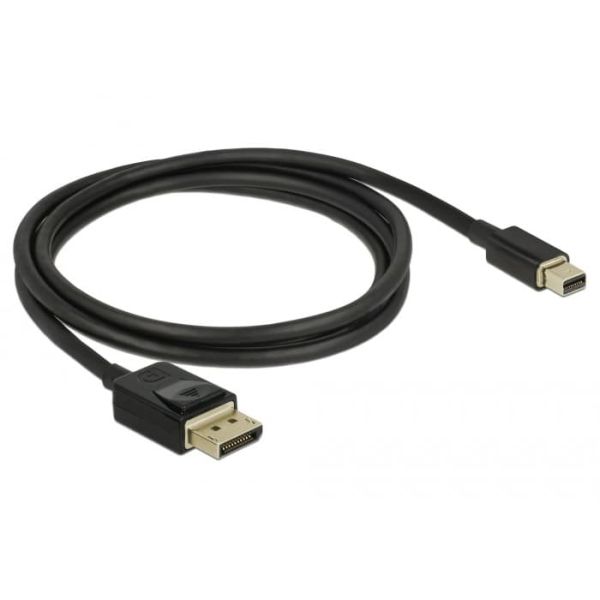

DeLOCK 84927 DisplayPort kabel 1 m Mini DisplayPort Zwart

This certified DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, beamers or televisions, to a PC or laptop with a mini DisplayPort interface. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) resp. 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.
  • Connectors:
  • 1 x mini DisplayPort 20 pin male >
  • 1 x DisplayPort 20 pin male
  • DisplayPort 1.4 specification
  • Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
  • DisplayPort® DP 8K certified cable
  • Pin 20 not connected
  • Cable gauge: 34 AWG
  • Cable diameter: ca. 4.5 mm
  • Copper conductor
  • Triple shielded cable
  • Contacts gold-plated
  • Transmission of audio and video signals
  • Data transfer rate up to 32.4 Gb/s
  • Resolution up to:
  • Display with DSC support:
  • 7680 x 4320 @ 60 Hz
  • 5120 x 2880 @ 120 Hz
  • 3840 x 2160 @ 240 Hz
  • Display without DSC support:
  • 7680 x 4320 @ 30 Hz
  • 5120 x 2880 @ 60 Hz
  • 3840 x 2160 @ 120 Hz
  • (depending on the system and the connected hardware)
  • Supports Display Stream Compression 1.2 (DSC)
  • Supports HDR
  • Supports HDCP 1.4 and 2.2
  • Supports HBR3 (8.1 Gb/s) data rate
  • Up to 32 audio channels for speakers
  • Up to 1536 kHz audio sampling rate
  • Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
  • Colour: black
  • Length incl. connectors (L): ca. 1 m

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Contact geleider materiaal
Goud
DisplayPort versie
1.4
Maximum resolutie*
7680 x 4320 Pixels
Ondersteunde video-modi
4320p
HDCP
Ja
Snoerlengte*
1 m
Aansluiting 1*
Mini DisplayPort
Aansluiting 2*
DisplayPort
Aansluiting 1 type*
Mannelijk
Aansluiting 2 type*
Mannelijk
Kleur van het product*
Zwart

Kenmerken

Kabel materiaal
Koper
Aantal afschermlagen
3
AWG draad omvang
34
Overdrachtssnelheid
32,4 Gbit/s

Verpakking

Diameter van de kabel
4,5 mm
Aantal per verpakking
1 stuk(s)
Type verpakking
Doos

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
