DeLOCK 85507, 0,5 m, DisplayPort, DisplayPort, Mannelijk, Mannelijk, 3840 x 2160 Pixels

Ruim op voorraad

Fabrikant Delock
MPN 85508
EAN 4043619855087

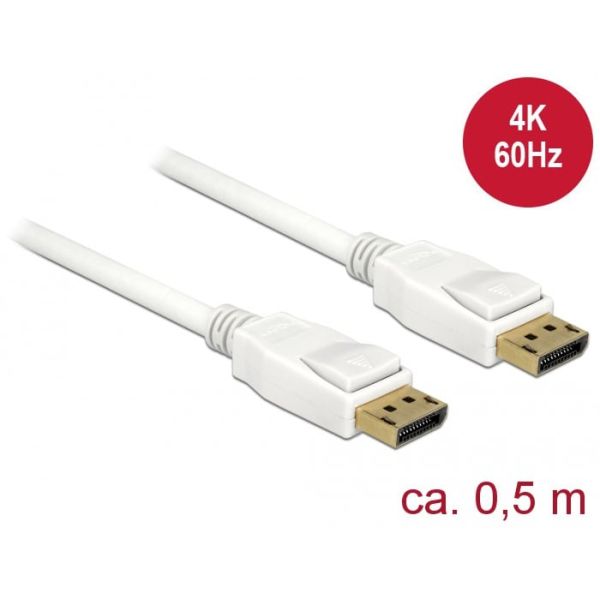

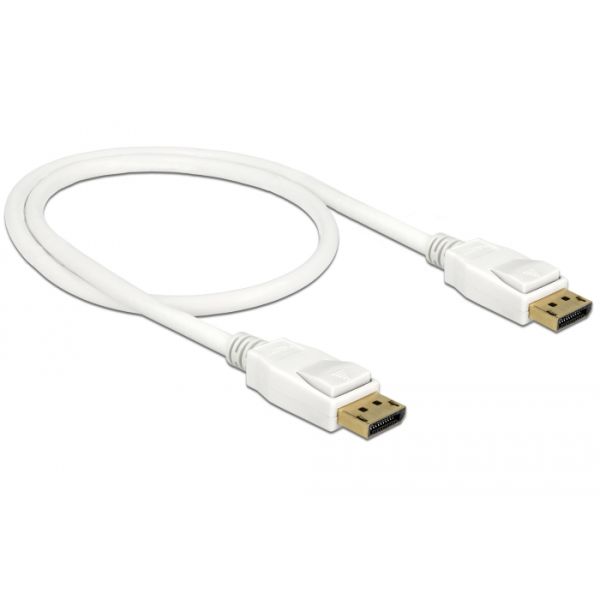

DeLOCK 85507 DisplayPort kabel 0,5 m Wit

This Displayport cable by Delock can be used to connect devices with Displayport interface, e.g. displays, projectors or TVs, to a PC or laptop. The triple shielded cable supports a resolution of up to Ultra HD (4K @ 60 Hz) and is downwards compatible to Full-HD 1080p.
  • Connectors:
  • 1 x Displayport 20 pin male >
  • 1 x Displayport 20 pin male
  • Displayport 1.2 specification
  • Pin 20 not connected
  • Cable gauge: 28 AWG
  • Cable diameter: ca. 7.3 mm
  • Copper conductor
  • Triple shielded cable
  • Gold-plated connectors
  • Transfer of audio and video signals
  • Data transfer rate up to 21.6 Gb/s
  • Resolution up to 3840 x 2160 @ 60 Hz
  • (depending on the system and the connected hardware)
  • Colour: white
  • Length incl. connectors: ca. 0.5 m

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Contact geleider materiaal
Goud
DisplayPort versie
1.2a
Maximum resolutie*
3840 x 2160 Pixels
Ondersteunde grafische resoluties
1920 x 1080 (HD 1080), 3840 x 2160
Ondersteunde video-modi
1080p, 2160p
Snoerlengte*
0,5 m
Aansluiting 1*
DisplayPort
Aansluiting 2*
DisplayPort
Aansluiting 1 type*
Mannelijk
Aansluiting 2 type*
Mannelijk
Kleur van het product*
Wit
Kabel materiaal
Koper

Kenmerken

Aantal afschermlagen
3
Materiaal buitenmantel
Polyvinyl chloride (PVC)
AWG draad omvang
28
Overdrachtssnelheid
21,6 Gbit/s

Verpakking

Diameter van de kabel
7,3 mm
Aantal per verpakking
1 stuk(s)
Type verpakking
Polybag

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
