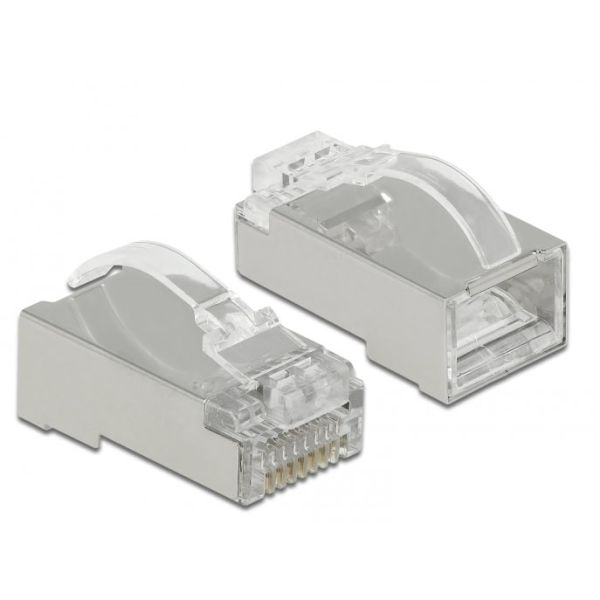

DeLOCK 86474 kabel-connector RJ-45 Transparant
Description
With this RJ45 plug by Delock and the matching Crimp+Cut tool a network cable can quickly and easily be connected to an RJ45 plug. The RJ45 Crimp+Cut plug allows leading the wires out to the front; this speeds up the installation and the wiring order can be checked. At the same time, the performance is improved because the wire pair remains twisted close to the connector. When crimping, all wires are contacted simultaneously and the excess cable ends are cut off. The new "Curve" feature is an extended, curved latch that gives way when the plug is pulled out and therefore cannot be damaged.
With this RJ45 plug by Delock and the matching Crimp+Cut tool a network cable can quickly and easily be connected to an RJ45 plug. The RJ45 Crimp+Cut plug allows leading the wires out to the front; this speeds up the installation and the wiring order can be checked. At the same time, the performance is improved because the wire pair remains twisted close to the connector. When crimping, all wires are contacted simultaneously and the excess cable ends are cut off. The new "Curve" feature is an extended, curved latch that gives way when the plug is pulled out and therefore cannot be damaged.
- Connector: 1 x RJ45 plug
- Shielded (STP)
- Cat.6 specification
- TIA-568A/B pinout
- 3-prong contact
- Contacts gold-plated: 1.27 um / 50 u″
- For solid or stranded wire up to 0.573 mm (23 - 26 AWG)
- For cable diameter from 5.0 - 6.5 mm
- Housing material: polycarbonate
- Colour: transparent
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Aansluiting(en)*
RJ-45
Geslacht connector
Mannelijk
Connector vormfactor
Recht
Kleur van het product*
Transparant
Materiaal
Polycarbonaat
Kabel standaard
Cat6
Kabelafscherming
U/FTP (STP)
AWG draad omvang
23/26
Contact geleider materiaal
Goud
Gewicht en omvang
Breedte
14 mm
Diepte
22,2 mm
Hoogte
11,7 mm
Inhoud van de verpakking
Aantal per verpakking*
20 stuk(s)
Verpakking
Type verpakking
Polybag
