DeLOCK 87683 notebook dock & poortreplicator Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grijs

DeLOCK 87683, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 10,100,1000 Mbit/s, Grijs, SD, SDHC, SDXC, 4K Ultra HD

Ruim op voorraad

Fabrikant Delock
MPN 87683
EAN 4043619876839
€ 208,00 excl. BTW

DeLOCK 87683 notebook dock & poortreplicator Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grijs

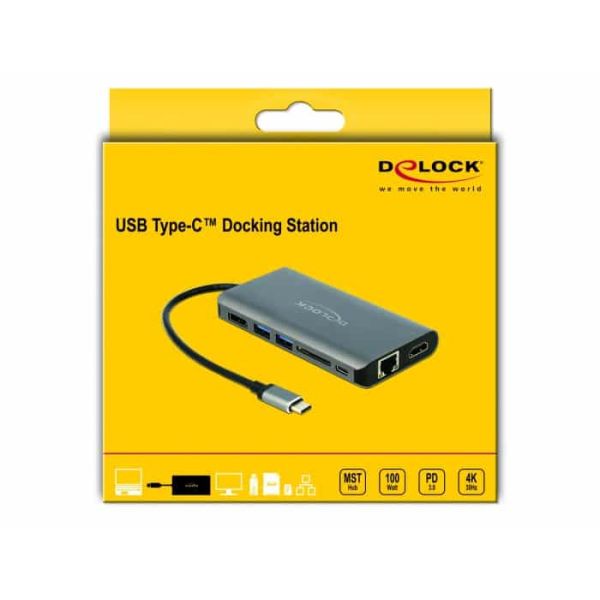

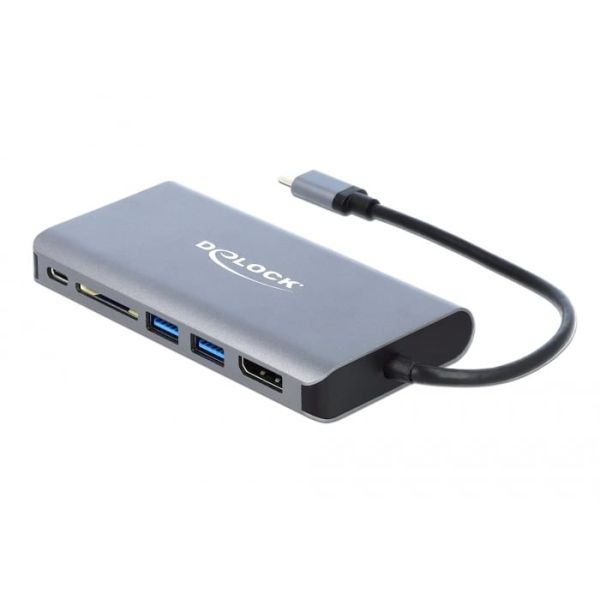

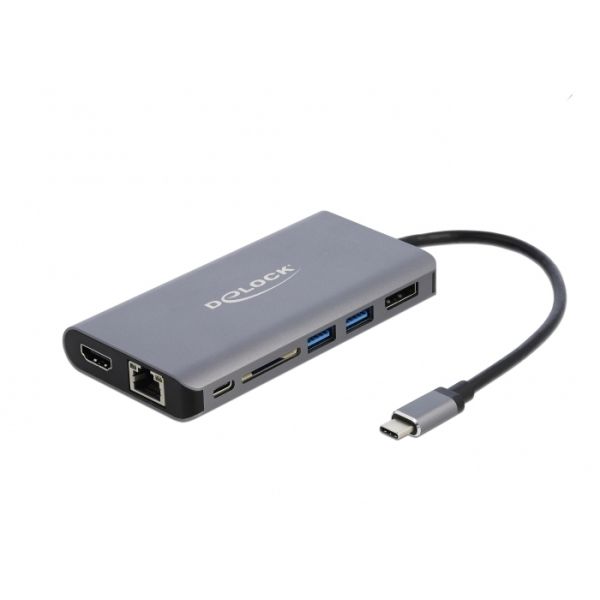

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Three built-in USB ports allow the use of peripherals, and connections for Gigabit network, as well as an SD card reader, complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 1080p per monitor.

USB Power Delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.
  • Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
  • Transmission of audio and video signals
  • Functions: Mirrored or Extended (Windows only)
  • Supports HDCP 1.4
  • Input power: 1 x USB Type-C™ female max. 100 W
  • Metal housing

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
Microfoon, line-in ingang*
Nee

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
SD, SDHC, SDXC
HD type
4K Ultra HD
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Kleur van het product*
Grijs
Oplaadfunctie
Ja
Land van herkomst
China

Prestatie

Merkcompatibiliteit
Alle merken

Energie

Type stroombron
USB
Lengte stroomkabel
0,2 m

Software

Ondersteunt Windows
Windows 10, Windows 7, Windows 8.1
Ondersteunt Mac-besturingssysteem
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Andere ondersteundende systemen
ChromeOS

Gewicht en omvang

Breedte
60 mm
Diepte
117 mm
Hoogte
16 mm

Verpakking

Aantal per verpakking
1 stuk(s)

Inhoud van de verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
