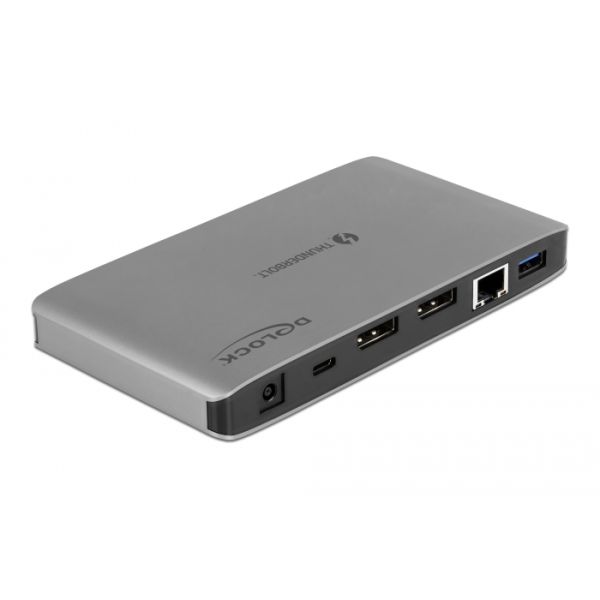

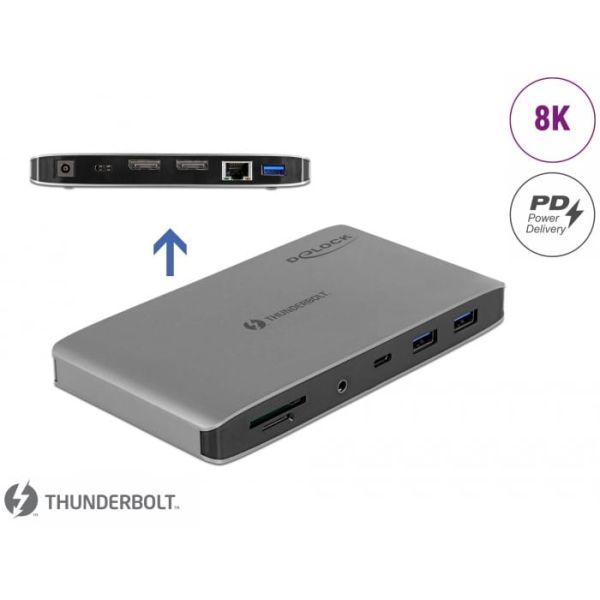

DeLOCK 87777 notebook dock & poortreplicator Bedraad Thunderbolt 3 Grijs

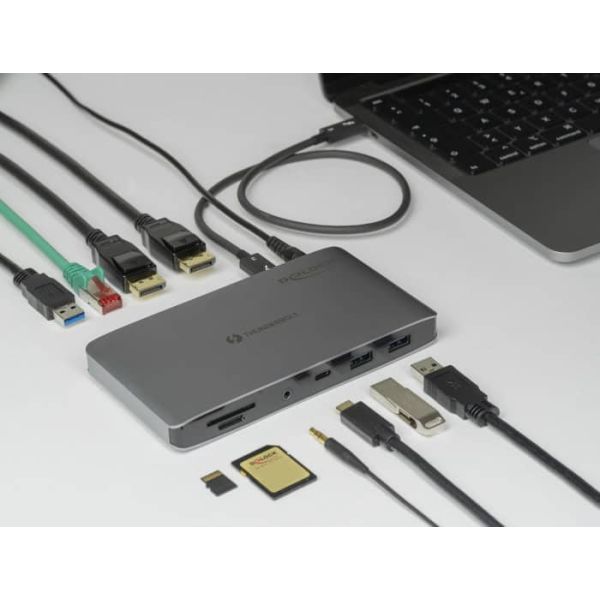

This Thunderbolt 3 docking station by Delock can be connected to a computer with a Thunderbolt 3 port and provides a variety of interfaces. Up to two monitors can be operated simultaneously at the DisplayPort outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.
Multi-Stream Transport (MST)

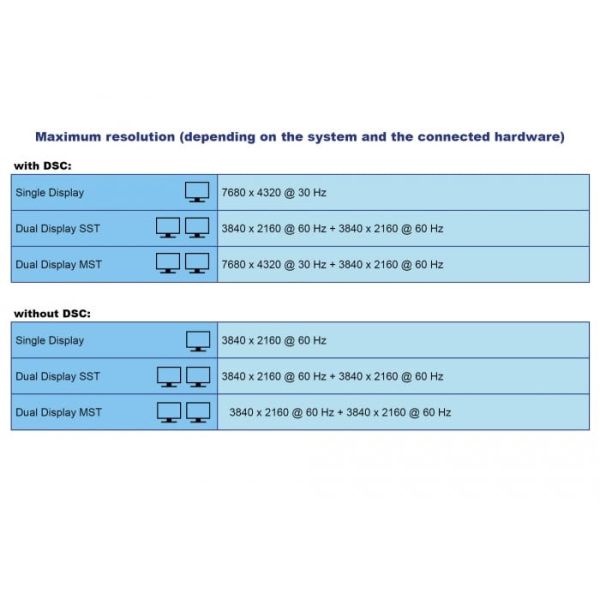

The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
Thunderbolt 3
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
USB Power Delivery
Ja
USB Power Delivery herziening
3.0
USB Power Delivery tot max.
60 W
Aantal DisplayPorts
2
Hoofdtelefoonuitgangen*
1
Type aansluitplug
3,5 mm
Aansluiting voor netstroomadapter
Ja
HDCP
Ja
HDCP versie
2.2
Netwerk
Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Prestatie
Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), SD
Prestatie
Kleur van het product*
Grijs
Plug and play
Ja
Energie
Type stroombron
AC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
3 A
Spanning
20 V
Output current
6 A
Software
Ondersteunt Windows
Windows 10, Windows 8.1
Ondersteunt Mac-besturingssysteem
Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Gewicht en omvang
Breedte
147 mm
Diepte
80 mm
Hoogte
17 mm
Inhoud van de verpakking

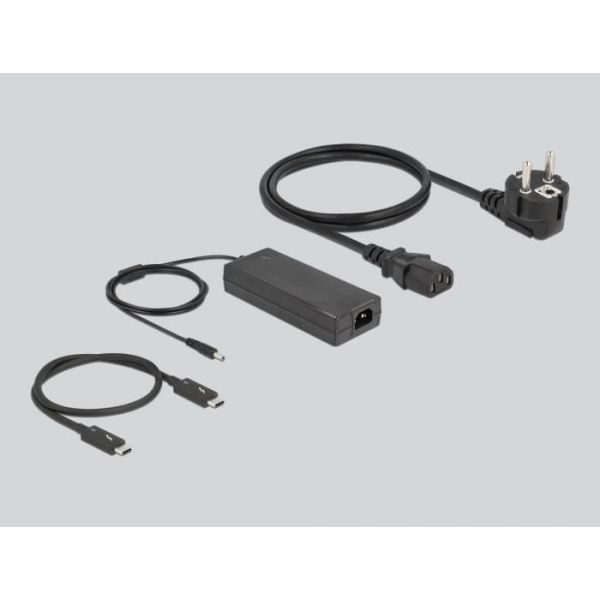

Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja
