DeLOCK 89909 interfacekaart/-adapter Intern Serie

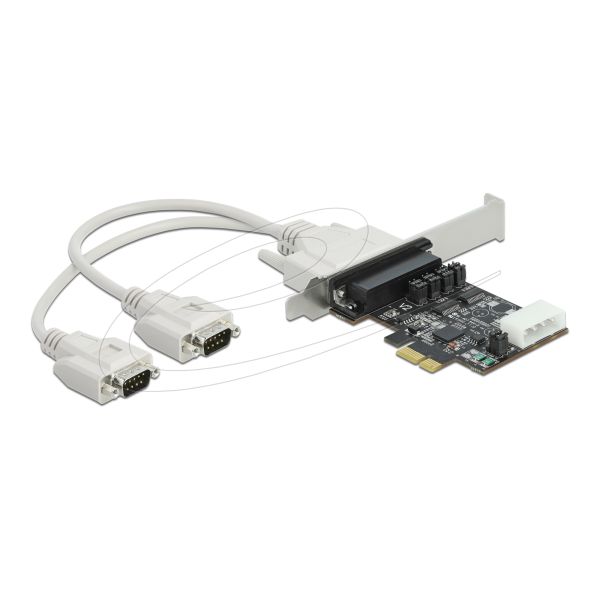

The PCI Express card by Delock expands a PC by two external serial ports.
Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).
Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).
Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
- Chipset: MaxLinear 17V352
- Compatible with 16C550 UART
- Data transfer rate up to 230.4 Kbps
- FIFO: 256 byte
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Hostinterface*
PCIe
Output interface*
Serie
Uitbreidingskaart vormfactor
Low-profile
Seriële poort(en)
2
Soort serieële aansluiting
RS-232
Design
Intern*
Ja
Kleur van het product
Zwart
Kenmerken
Baud snelheid
230,4 Kbit/s
Kenmerken
FIFO (First In, First Out)
256 B
Energie
Voeding, voltage ingang
5, 12 V
Minimale systeemeisen
Ondersteunt Windows
Ja
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
