DeLOCK 90097 interfacekaart/-adapter Intern USB 3.2 Gen 2 (3.1 Gen 2), USB Type-C
DeLOCK 90097, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), USB Type-C, Man, PCI 3.0, China, Pericom PI7C9X3G816GP
Ruim op voorraad
Fabrikant
Delock
MPN
90097
EAN
4043619900978
€ 419,00
excl. BTW
€ 419,00
excl. BTW
excl. BTW
DeLOCK 90097 interfacekaart/-adapter Intern USB 3.2 Gen 2 (3.1 Gen 2), USB Type-C

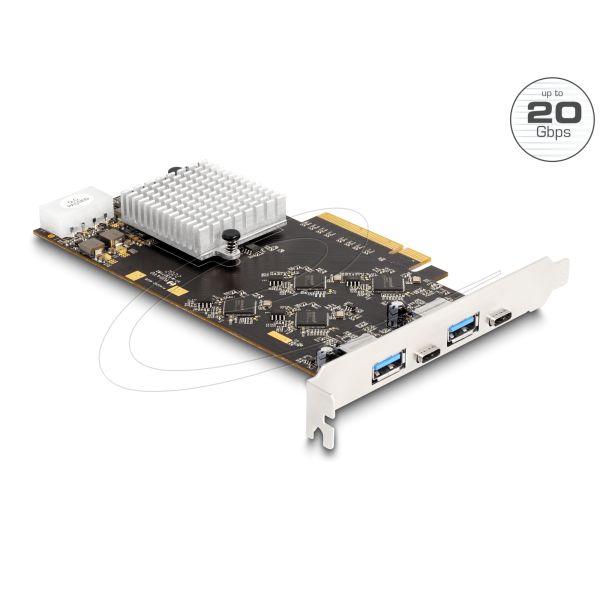

The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Quad Channel
The card has four ASM3242 chipsets, a separate chipset for each USB connector. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used at the same time.
Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a 4 pin power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 0.9 A, all ports together have an output of maximum 7.8 A.
Quad Channel
The card has four ASM3242 chipsets, a separate chipset for each USB connector. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used at the same time.
Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a 4 pin power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 0.9 A, all ports together have an output of maximum 7.8 A.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Hostinterface*
PCIe
Gastheerinterface geslacht
Man
Output interface*
USB 3.2 Gen 2 (3.1 Gen 2), USB Type-C
Uitbreidingskaartstandaard
PCI 3.0
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
2
Design
Intern*
Ja
Gemakkelijk te installeren
Ja
Land van herkomst
China
Kenmerken
Type processor
Ja
Chipset
Pericom PI7C9X3G816GP
Data transfer snelheid (max)
20 Gbit/s
UASP-ondersteuning
Ja
Energie
Spanning
5 V
Output current
3 A
Minimale systeemeisen
Ondersteunt Windows
Windows 10, Windows 11, Windows 8.1
Ondersteunt Linux
Linux Kernel 5.15
Technische details
Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE
Verpakking
Aantal per verpakking
1 stuk(s)
Gebruikershandleiding
Ja
Type verpakking
Doos
