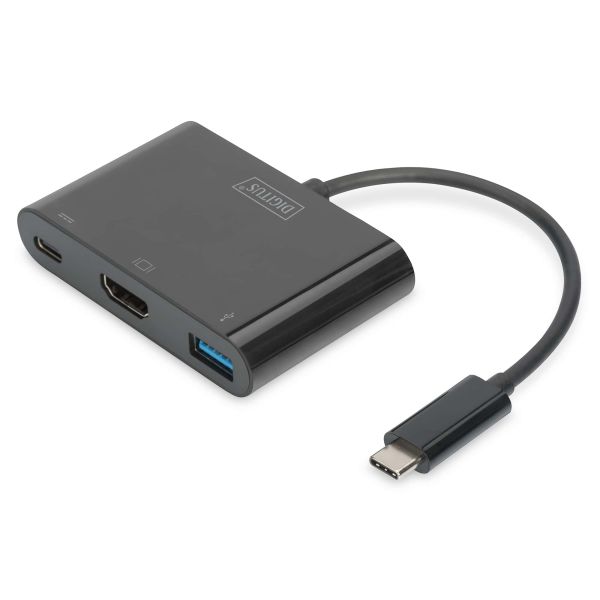

Digitus DA-70855 interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s Zwart

Digitus DA-70855, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 5000 Mbit/s, Zwart, 0,15 m, China

Nog slechts 4 beschikbaar

Fabrikant Digitus
MPN DA-70855
EAN 4016032447498
€ 56,00 excl. BTW

Digitus DA-70855 interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-C 5000 Mbit/s Zwart

Extends your USB-C™ device with three additional ports (HDMI, USB 3.0 and USB-C™)

- Extends your USB-C™ device with three additional ports
- 1x HDMI (UHD, 4K/30Hz)
- 1x USB 3.0 (SuperSpeed, max. 5 Gbps) - supports BC 1.2 for charging mobile devices (5V/1.5A)
- 1x USB-C™ (PD 2.0, max. 60W)
- USB-C™ version: USB 3.1 (Gen. 1)
- Corresponds to the VESA DisplayPort Alternate Mode

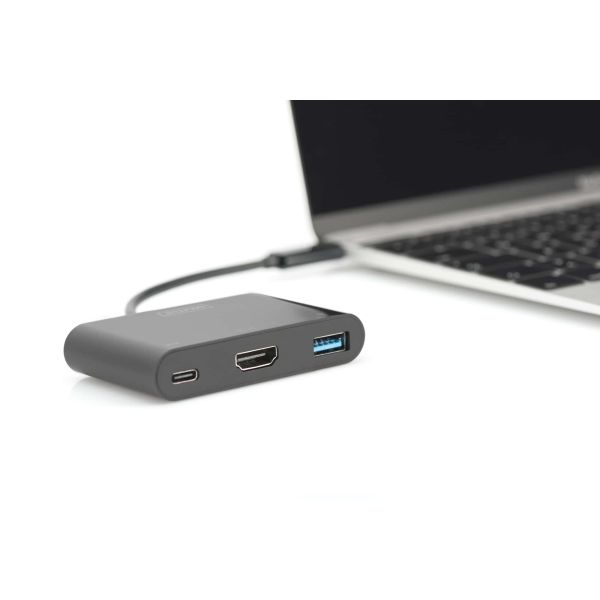

The USB Type-C™ HDMI multiport adapter, 3-port extends your USB-C™ device with three additional ports. Use the HDMI port to connect an additional TV set or monitor to your laptop or hold a presentation with a projector. The highest possible resolution is UHD (4K/30Hz). In addition, the adapter has a USB 3.0 port to connect external USB devices. It also complies with USB-BC specification 1.2 (USB Battery Charging) and is thus suitable for charging mobile devices (max. 5V/1.5A). Moreover, it features a USB-C™ port with Power Delivery (PD) 2.0 functionality to power your laptop while using the adapter. The multiport adapter is suitable for all operating systems: Windows, Mac, Google Chrome.

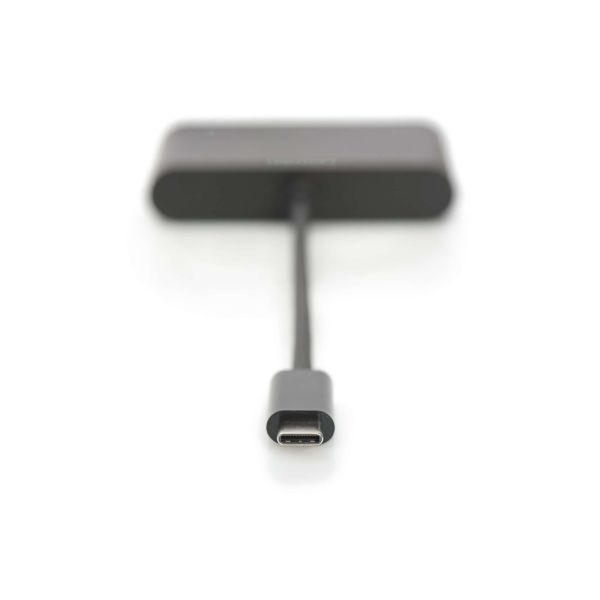

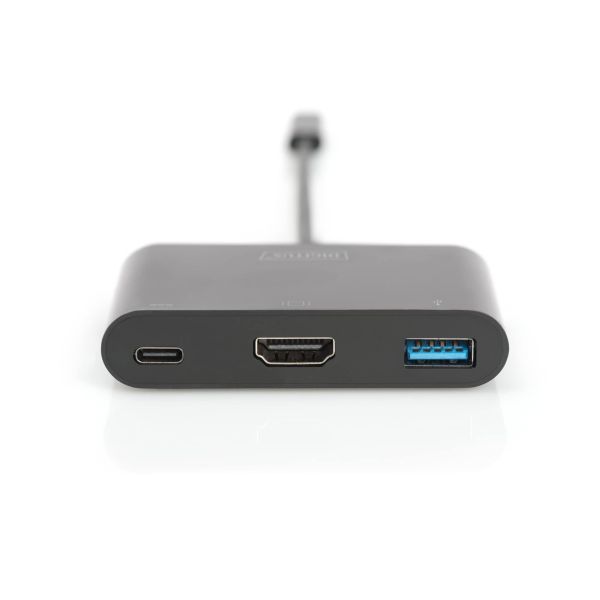

  • Connection 1: USB-C™ plug
  • Connection 2: HDMI socket
  • Connection 3: USB 3.0 socket
  • Connection 4: USB-C™ socket
  • Extends your USB-C™ device with three additional ports (HDMI, USB 3.0 and USB-C™)
  • 1x HDMI (UHD, 4K/30Hz)
  • 1x USB 3.0 (SuperSpeed, max. 5 Gbps) - supports BC 1.2 for charging mobile devices (5V/1.5A)
  • 1x USB-C™ (PD 2.0, max. 60W)
  • Supports Ultra HD (4K/30Hz)
  • USB-C™ version: USB 3.1 (Gen. 1)
  • USB-BC (USB Battery Charging) 1.2
  • Corresponds to the VESA DisplayPort Alternate Mode
  • Chipset: AG6310, LDR6023SD
  • Cable length: 15.0 cm
  • Color: Black
  • Dimensions: L 20.0 x W 7.7 x H 1.7 cm
  • Weight: 40 g
  • Not all USB-C™ ports support all functions of USB Type-C™ standards. Make sure that the USB-C™ port of your laptop supports the DisplayPort Alternate Mode (DP Alt-mode).
  • The video output capability depends on the graphics card of your laptop and the connected monitor. Some screens also have a limited resolution.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub-interfaces*
HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
1
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal HDMI-poorten
1
Aantal poorten*
3

Kenmerken

Overdrachtssnelheid*
5000 Mbit/s
Kleur van het product
Zwart
Snoerlengte
0,15 m
Land van herkomst
China

Energie

Type stroombron
USB
Netvoeding
60 W
USB oplaadpoort
Ja

Gewicht en omvang

Breedte
77 mm
Diepte
200 mm
Hoogte
17 mm
Gewicht
40 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
86 mm
Diepte verpakking
190 mm
Verpakkingsvolume
359,48 cm³
Gewicht verpakking
72 g

Inhoud van de verpakking

Gebruikershandleiding
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Design

Kleur kabel
Zwart

Logistieke gegevens

Code UK-handelstarief
84718000
Code geharmoniseerd systeem (HS)
84719000
