Digitus DA-70866, Bedraad, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, USB Type-C, 10,100,1000 Mbit/s, Zilver

Ruim op voorraad

Fabrikant Digitus
MPN DA-70866
EAN 4016032450443

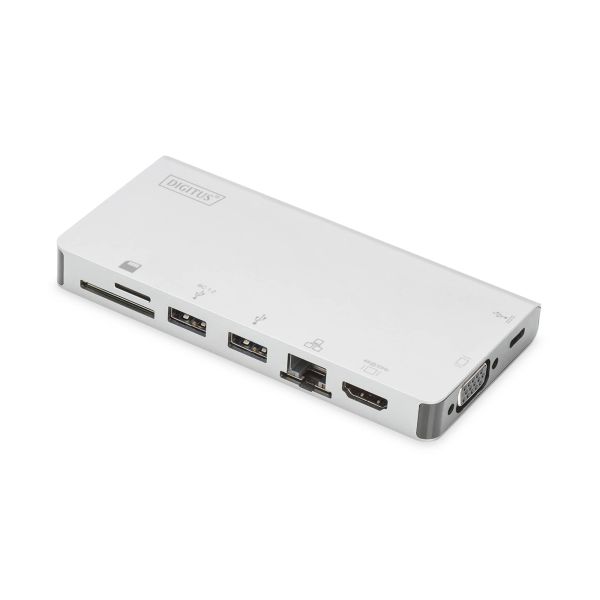

Digitus DA-70866 notebook dock & poortreplicator Bedraad USB 3.2 Gen 2 (3.1 Gen 2) Type-C Zilver

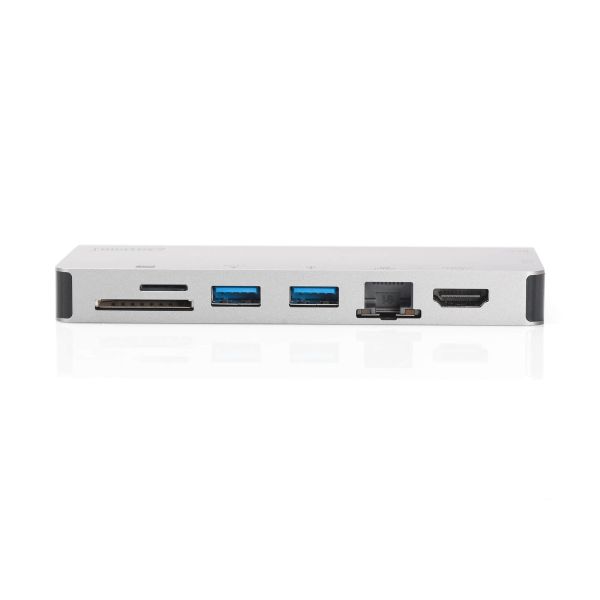

The most important interfaces are always there – expands your notebook by 8 additional ports via one single USB-C™ port

- 2x video connections (HDMI, VGA) – video signal output with a maximum resolution of UHD 4K/30 Hz (HDMI)
- 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
- Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)
- 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)
- 1 x Gigabit Ethernet port - connects your laptop to the network via cable
- 2 x Card readers (MicroSD / SDHC, SDXC, MMC)
- Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing

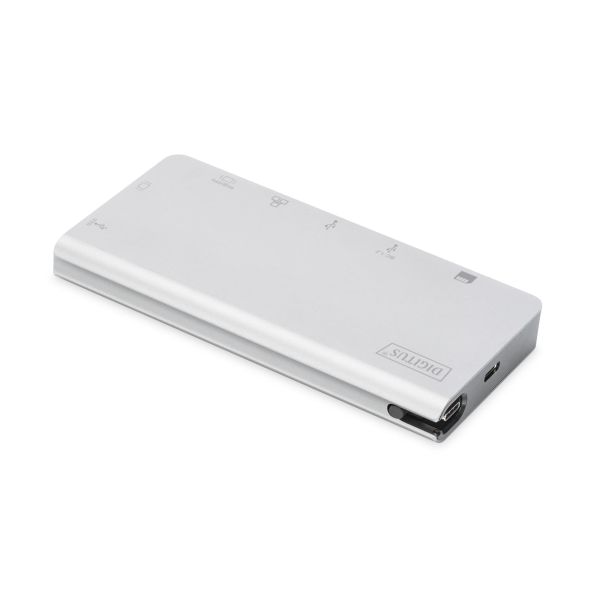

With the DIGITUS® USB Type-C™ Multiport Travel Dock, you always have the most important interfaces with you. The dock adds eight ports to your laptop. It offers two video interfaces (HDMI and VGA). The highest possible supported resolution (HDMI): Brillant UHD (4K2K/30Hz). The dock also offers two USB 3.0 ports, one of which provides an extra charging function for mobile devices (BC 1.2). It also offers a USB-C™ port (Power Delivery 3.0 + data transfer). Your notebook can also be connected to the network by cable via the Gigabit Ethernet port. The whole thing is rounded off by two card readers (MicroSD, SDHC, SDXC / MMC). The compact size, low weight and stowable connecting cable make the Multiport Travel Dock the perfect companion for traveling and trips.
  • 1 x HDMI (UHD resolution, 4K/30 Hz)

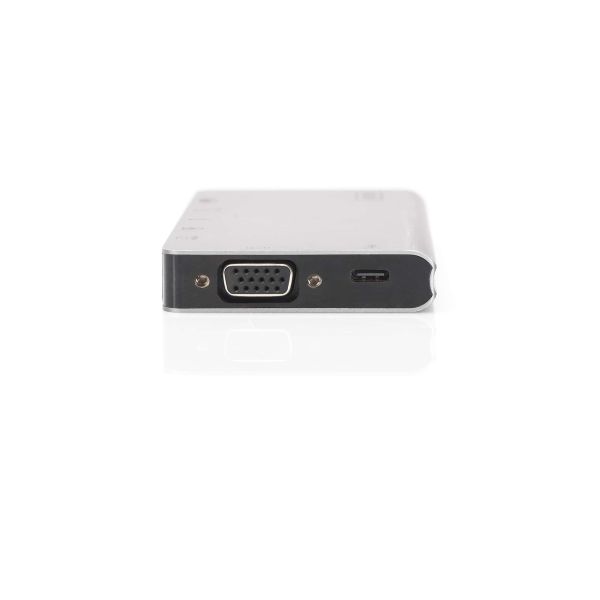

  • 1 x VGA (Full HD 1080p / 60 Hz)
  • 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
  • Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)
  • 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)
  • 1 x Gigabit Ethernet port - connects your laptop to the network via cable
  • 2 x card readers (MicroSD / SDHC, SDXC, MMC)

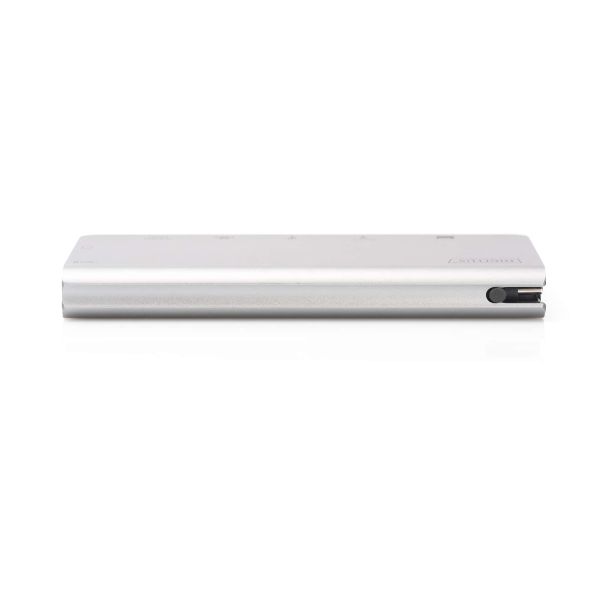

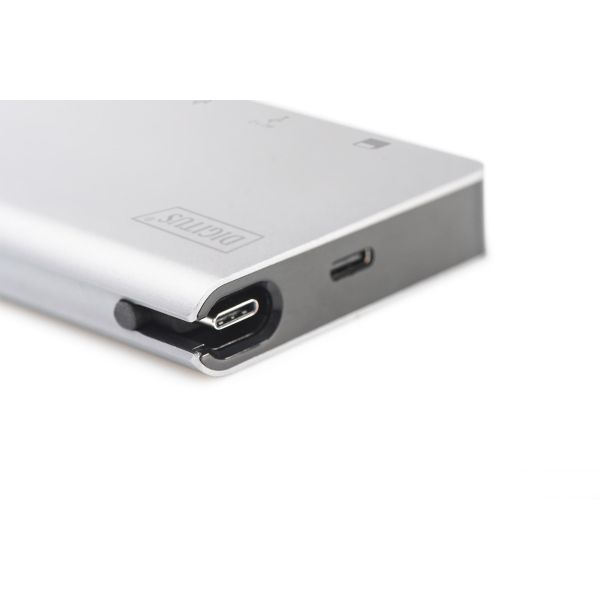

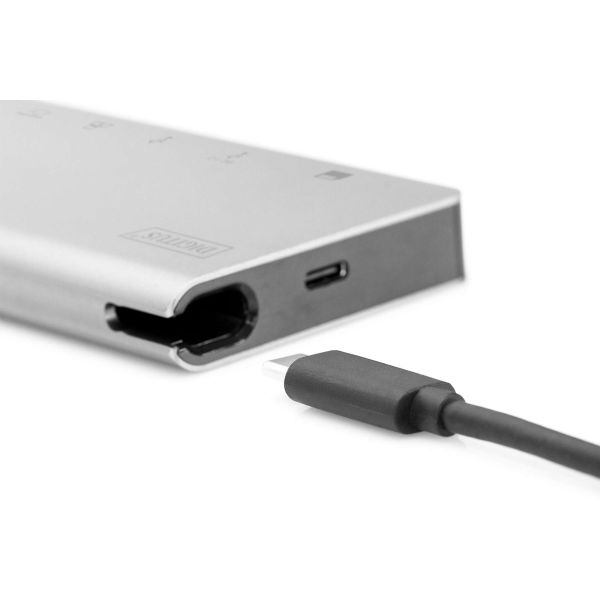

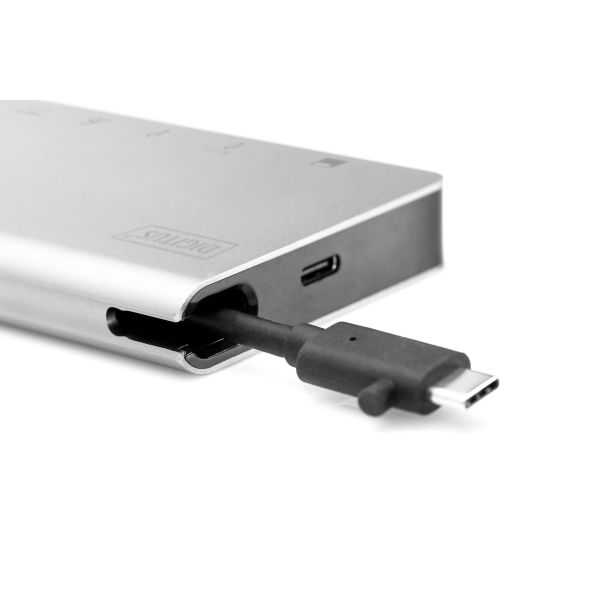

  • Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing
  • USB-C™ version: USB 3.1 (Gen 1)
  • Premium aluminum housing
  • Ultra-compact size as well as low weight – perfect for travelling and out and about
  • Color: Silver
  • Dimensions: L 12.5 x W 6.1 x H 1.5 cm
  • Weight: 135 g
  • Not all USB-C™ ports support all features of the USB Type-C™ standard. Make sure your notebook's USB-C™ port supports DisplayPort Alternate Mode (DP-Alt Modi) and USB Power Delivery (PD).
  • The video output capability depends on the graphic card of your notebook and the connected monitor. Certain graphics cards have limited MST support, while some monitors also limit the available resolution.
  • The used power supply must supply at least 60 watts to power a connected notebook as well as the docking station via the USB-C™ port

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
USB Power Delivery
Ja
USB Power Delivery herziening
2.0
USB Power Delivery tot max.
100 W
Aantal HDMI-poorten*
1
VGA (D-Sub)poort(en)
1
Microfoon, line-in ingang*
Nee
USB-connectortype
USB Type-C

Netwerk

Ethernet LAN*
Nee
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MMC, MicroSD (TransFlash), SDHC, SDIO
Overdrachtssnelheid
5 Gbit/s
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Aantal displays ondersteund
1
Kleur van het product*
Zilver
Materiaal behuizing
Aluminium
Land van herkomst
China

Grafisch

Maximum resolutie
3840 x 2160 Pixels

Energie

Type stroombron
USB
Netstekker
USB Type-C

Gewicht en omvang

Breedte
61 mm
Diepte
125 mm
Hoogte
15 mm
Gewicht
135 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
115 mm
Diepte verpakking
160 mm
Gewicht verpakking
225 g

Inhoud van de verpakking

Gebruikershandleiding
Ja

Technische details

Verpakkingsvolume
460 cm³

Logistieke gegevens

Code UK-handelstarief
84718000
Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

USB data-overdrachtssnelheden
5000 Mbit/s
