Digitus DA-70867, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, MMC, MicroSD (TransFlash), SD, SDHC, SDXC, 3840 x 2160 Pixels, Zilver, Aluminium

Ruim op voorraad

Fabrikant Digitus
MPN DA-70867
EAN 4016032450481

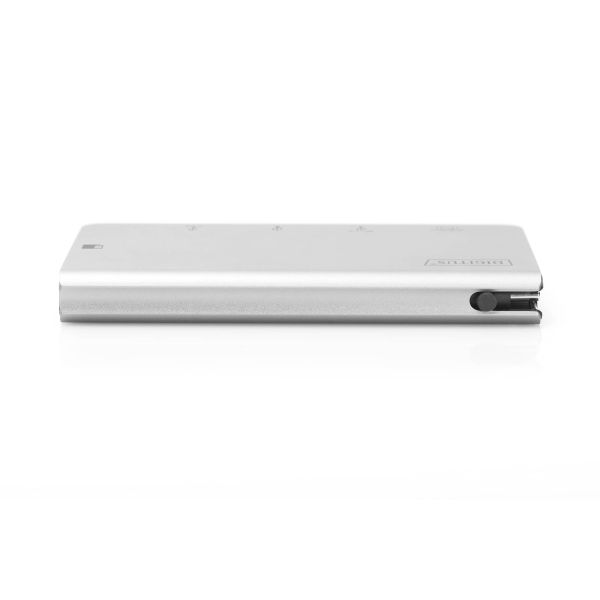

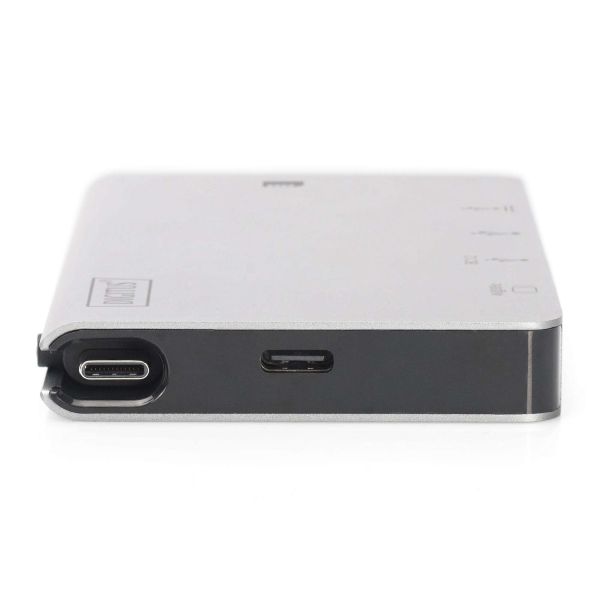

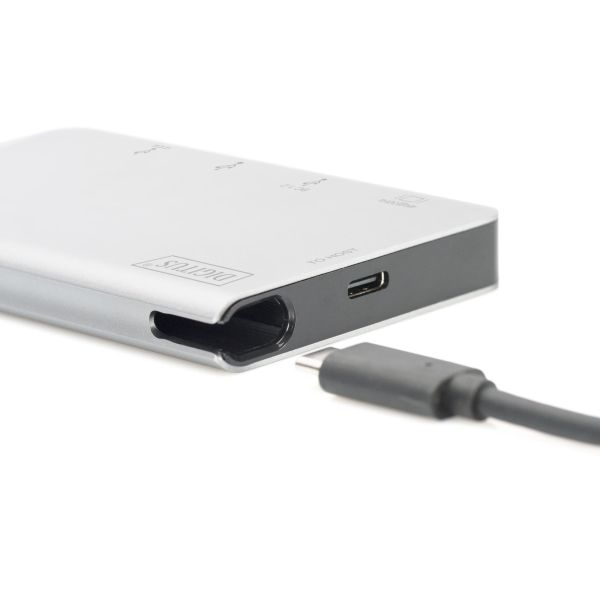

Digitus DA-70867 interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-C Zilver

The most important interfaces are always there – expands your notebook by 6 additional ports via one single USB-C™ port

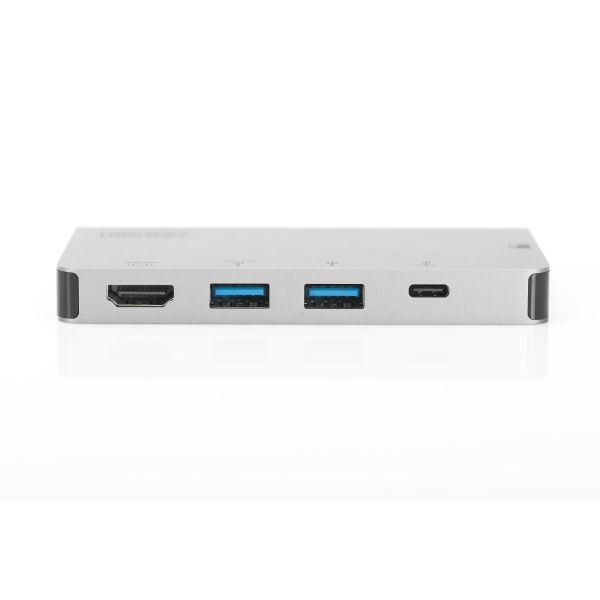

- 1 x Video connection (HDMI) - output of video signals with a max. resolution of UHD 4K2K, 30Hz (HDMI)
- 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
- 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)

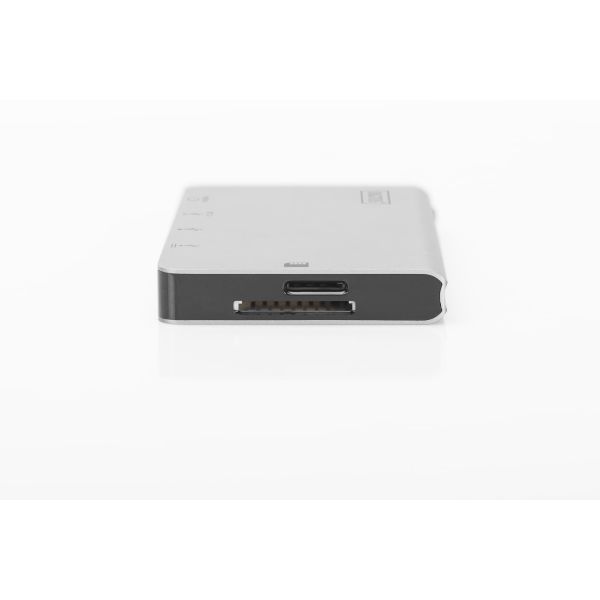

- 2 x card readers (MicroSD / SDHC, SDXC, MMC)
- Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)

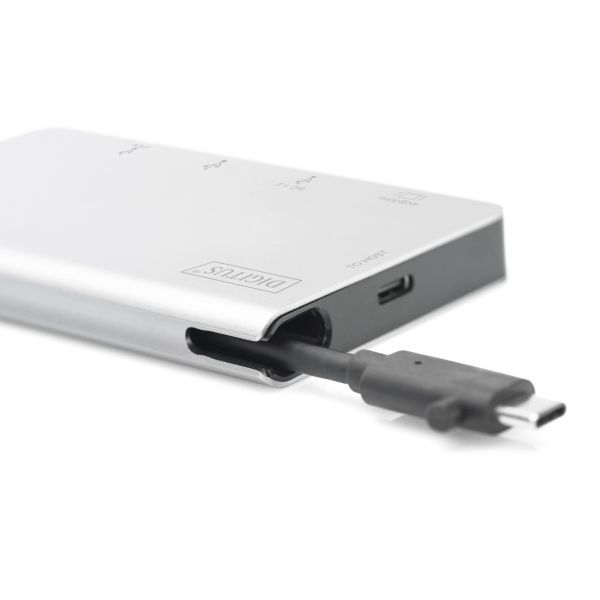

- Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing

With DIGITUS® USB Type-C™ Multiport Travel Dock, you always have the most important interfaces with you. The dock adds six ports to your laptop. It offers a video interface (HDMI). The highest possible supported resolution: Brilliant UHD (4K/30Hz). It also offers two USB 3.0 ports, one of which provides an extra charging function for mobile devices (BC 1.2). The dock also offers a USB-C™ port (Power Delivery 3.0 + data transfer). The whole thing is rounded off by two card readers (MicroSD, SDHC, SDXC / MMC). The compact size, low weight and stowable connecting cable make the Multiport Travel Dock the perfect companion for traveling and trips.
  • 1 x HDMI (UHD resolution, 4K/30 Hz)
  • 2 x USB 3.0 ports for high speed data transfer, one with a charging function (BC 1.2) for mobile devices (5V/1.5A)
  • 1 x USB-C™ port - Power Delivery (PD) 3.0 (100W, 20V/5A max.) + data transfer (5 Gbit/s max.)
  • 2 x Card readers (MicroSD / SDHC, SDXC, MMC)
  • Supports Ultra HD (30Hz), 3840 x 2160p resolution (HDMI)
  • Stowable USB-C™ connecting cable (10 cm) – the connecting cable can be stored in the casing
  • USB-C™ version: USB 3.1 (Gen 1)
  • Premium aluminum housing
  • Ultra-compact size as well as low weight – perfect for travelling and out and about
  • Color: silver
  • Dimensions: L 11.0 x B 6.1 x H 1.5 cm
  • Weight: 100 g
  • Not all USB-C™ ports support all features of the USB Type-C™ standard. Make sure your notebook's USB-C™ port supports DisplayPort Alternate Mode (DP-Alt Modi) and USB Power Delivery (PD).
  • The video output capability depends on the graphic card of your notebook and the connected monitor. Certain graphics cards have limited MST support, while some monitors also limit the available resolution.
  • The used power supply must supply at least 60 watts to power a connected notebook as well as the docking station via the USB-C™ port

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub-interfaces*
HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
2
Aantal HDMI-poorten
1
Aantal poorten*
5
Geïntegreerde geheugenkaartlezer
Ja
Sleuf kaartlezer
2
Compatibele geheugenkaarten
MMC, MicroSD (TransFlash), SD, SDHC, SDXC

Kenmerken

Maximale resolutie (HDMI)
3840 x 2160 Pixels
Kleur van het product
Zilver
Materiaal behuizing
Aluminium
USB Power Delivery tot max.
100 W
Aantal displays ondersteund
1
Land van herkomst
China

Energie

Type stroombron
USB
Spanning
20 V
Output current
5 A

Gewicht en omvang

Breedte
110 mm
Diepte
61 mm

Gewicht en omvang

Hoogte
15 mm
Gewicht
100 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
115 mm
Diepte verpakking
160 mm
Verpakkingsvolume
460 cm³
Gewicht verpakking
187,5 g

Inhoud van de verpakking

Gebruikershandleiding
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Design

Kleur kabel
Zwart

Logistieke gegevens

Code UK-handelstarief
84718000
Code geharmoniseerd systeem (HS)
84719000

Overige specificaties

Maximum resolutie
3840 x 2160 Pixels
