Digitus DA-8100 Draagbare streepjescodelezer 1D/2D CMOS Zwart

Digitus DA-8100, Draagbare streepjescodelezer, 1D/2D, CMOS, Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128..., Datamatrix, PDF417, QR Code, 200 lezingen/s

Ruim op voorraad

Fabrikant Digitus
MPN DA-81002
EAN 4016032473640
€ 75,00 excl. BTW

Digitus DA-8100 Draagbare streepjescodelezer 1D/2D CMOS Zwart

High-resolution hand scanner for reliable use in retail and logistics – also suitable for QR codes

- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- High resolution: Scans high-resolution barcodes
- 200 scans per minute, bidirectional for reliable detection
- Suitable for one- and two-dimensional barcodes
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Anti-inference: External light sources have no influence on the scan.

The DIGITUS® 2D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per minute, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
  • 2D & 1D Scan – Barcodes & QR codes on paper or displays
  • Power consumption: 3.3 - 5 V DC, 120 mA
  • Power supply: USB
  • Scan type: Image capture
  • Sensor: CMOS
  • CPU: ARM 32-Bit Cortex
  • Interface: USB
  • Light source: LED (CMOS)
  • Trigger: Pushbutton, automatic
  • Number of scans: 200 per second
  • Error rate in bits: 1/5 million, 1/20 million
  • Resolution: 1D: ≥5mil, 2D:≥ 10mil
  • Scan width: 10 cm
  • Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
  • Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
  • Anti-interference: External light sources have no influence on the scan
  • 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6,
  • 2D decoding: PDF417, QR code, Datamatrix.
  • Compatible with Windows / Vista / Android / iOS / Mac / Linux systems

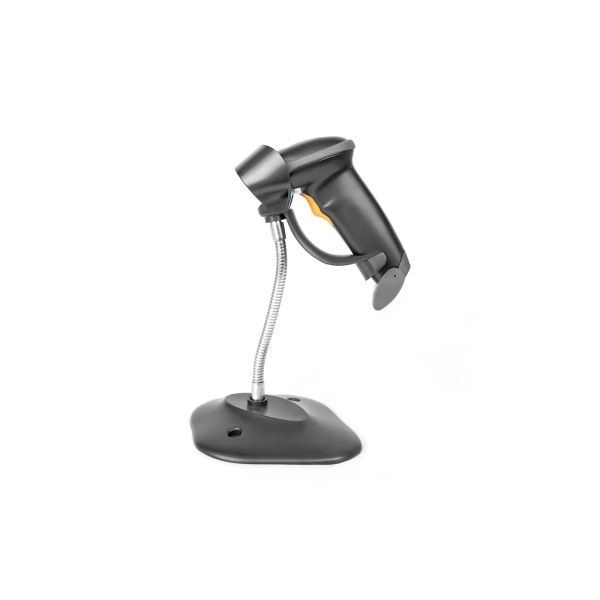

  • Includes scanner holder
  • Material: ABS + PC
  • Protection type: IP54
  • Operating temperature: -20 °C to +50 °C
  • Storage temperature: -40 °C to +70 °C
  • Cable: 2 m (USB - RJ45)
  • Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
  • Weight: 120 g
  • Color: Black

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Draagbare streepjescodelezer
Soort scanner*
1D/2D
Type beeldsensor*
CMOS
Ondersteunde streepjescodes (1D)*
Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C.
2D ( matrix en gestapeld ) barcodes ondersteund*
Datamatrix, PDF417, QR Code
Lees-snelheid (max)
200 lezingen/s
Tilt lees-hoek
-60 - 60°
Maximale scan breedte
10 cm

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Standaard interfaces*
RJ-45, USB
Snoerlengte
2 m

Prestatie

Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS), Polycarbonaat (PC)
Internationale veiligheidscode (IP)
IP54
Kleur van het product*
Zwart
Land van herkomst
China

Energie

Type stroombron*
USB

Energie

Ingangsspanning
5 V
Stroomverbruik
120 mA

Gewicht en omvang

Breedte
63 mm
Diepte
87 mm
Hoogte
165 mm
Gewicht*
120 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 50 °C
Temperatuur bij opslag
-40 - 70 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84716070

Overige specificaties

Lichtbron
650 nm
Compatibele besturingssystemen
Mac/Linux
Ondersteunt Windows
Ja
Ondersteunde mobiele besturingssystemen
Android, iOS
