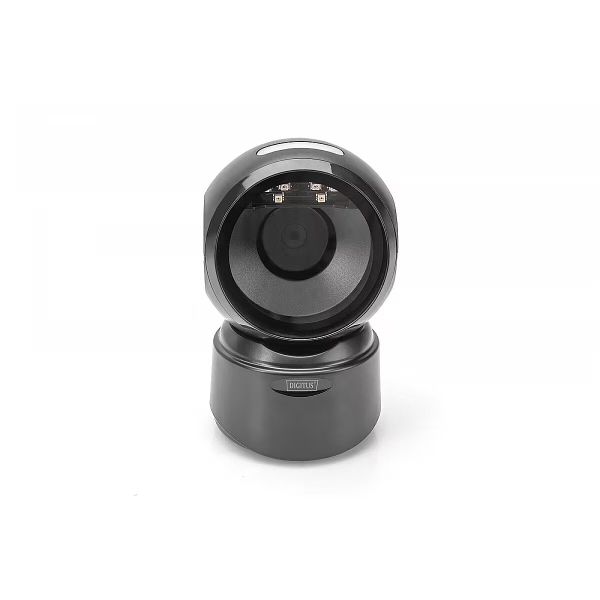

Digitus DA-81005 barcode-lezer Barcodelezer barcodemodule 1D/2D CMOS Zwart

Digitus DA-81005, Barcodelezer barcodemodule, 1D/2D, CMOS, China Post, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1..., Aztec Code, CodaBlockA, CodaBlockF, Samengestelde (composite) streepjescode, Datamatrix, Dot Code..., 200 lezingen/s

Nog slechts 9 beschikbaar

Fabrikant Digitus
MPN DA-81005
EAN 4016032490630
€ 91,00 excl. BTW

Digitus DA-81005 barcode-lezer Barcodelezer barcodemodule 1D/2D CMOS Zwart

Omni-directional bar code scanner with a scanning performance of up to 200 scans/s and elegant design for reliable use in checkout areas of pharmacies, supermarkets and other retail facilities

- Precise scanning of high-resolution 1D & 2D barcodes (barcodes / QR codes)
- 200 scans per sec., bidirectional for reliable recognition, successful code recognition is confirmed by a light and audio signal.
- Reads barcodes on screens - ideal for payment via smartphone / QR code (e.g. e-wallet).
- Ideal for retail, logistics and business of all kinds
- Anti Inference: External light sources have no influence on the scan.
- Integrated infrared sensor automatically activates the scanner when a barcode is held in the scanning area.
- Compact design with swiveling head, creates space on the cashier's desk

The 2D barcode scanner from DIGITUS® with high-resolution and motion-independent CMOS sensor allows fast and accurate scanning of static and non-static barcodes. Suitable for checkout areas in pharmacies, supermarkets and other retail facilities. Detects printed QR codes and QR codes displayed on screens (e.g. e-wallet). With 200 scans per sec., this bidirectional scanner delivers the best results. Suitable for one and omni-dimensional barcodes such as bar codes and QR codes. The scanner is also capable of reading QR codes from displays, ideal for scanning QR codes for mobile pay. Each scan is confirmed with visual and audible signals, supporting the most common types of encodings. Large scan angles further accelerate barcode recognition.
  • 2D & 1D Scan – Barcodes & QR codes on paper or displays
  • Power consumption: 5V DC, 235mA
  • Power supply: USB
  • Scan type: Image capture
  • Sensor: CMOS
  • CPU: ARM 32-Bit Cortex
  • Interface: USB
  • Trigger: automatic
  • Error rate in bits: 1/5 million, 1/20 million
  • Resolution: 1D: ≥4mil, 2D:≥ 10mil
  • Scan width: 10 cm
  • Number of scans: 200 per sec.
  • Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
  • Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
  • Decoding: 1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight, 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar, Expanded, China Post(Hong Kong 2 of 5), Korea Post.
  • Decoding 2-D: DOT Code, Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN
  • Compatible with Windows / Android / iOS / Mac / Linux
  • Plug and Play - no additional drivers required

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Scannen

Soort*
Barcodelezer barcodemodule
Soort scanner*
1D/2D
Type beeldsensor*
CMOS
Ondersteunde streepjescodes (1D)*
China Post, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
2D ( matrix en gestapeld ) barcodes ondersteund*
Aztec Code, CodaBlockA, CodaBlockF, Samengestelde (composite) streepjescode, Datamatrix, Dot Code A, Han Xin, MaxiCode, MicroPDF417, PDF417, QR Code
Lees-snelheid (max)
200 lezingen/s
Maximale scan breedte
10 cm

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Standaard interfaces*
USB

Prestatie

Type processor
Ja
Processor architectuur
ARM Cortex-A7
Kleur van het product*
Zwart
Land van herkomst
China

Energie

Type stroombron*
USB

Gewicht en omvang

Breedte
85 mm
Diepte
85 mm
Hoogte
140 mm
Gewicht*
250 g

Verpakking

Meegeleverde kabels
USB
Breedte verpakking
120 mm
Diepte verpakking
105 mm
Hoogte verpakking
170 mm
Gewicht verpakking
433,333 g

Technische details

Verpakkingsvolume
2142 cm³

Logistieke gegevens

Code UK-handelstarief
84719000
