Digitus DA-90408 notebook dock & poortreplicator Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Aluminium

Digitus DA-90408, Bedraad, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 87 W, 10,100,1000 Mbit/s, Aluminium, MicroSD (TransFlash), SD, SDHC

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Digitus
MPN DA-90408
EAN 4016032474616
€ 245,00 excl. BTW

Digitus DA-90408 notebook dock & poortreplicator Bedraad USB 3.2 Gen 1 (3.1 Gen 1) Type-C Aluminium

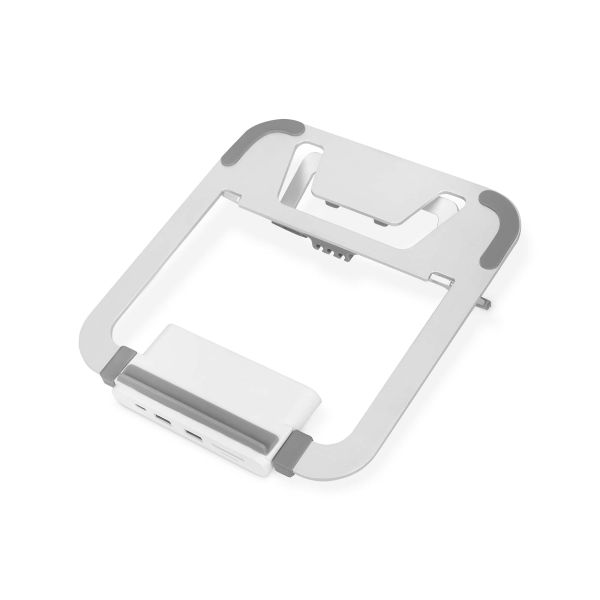

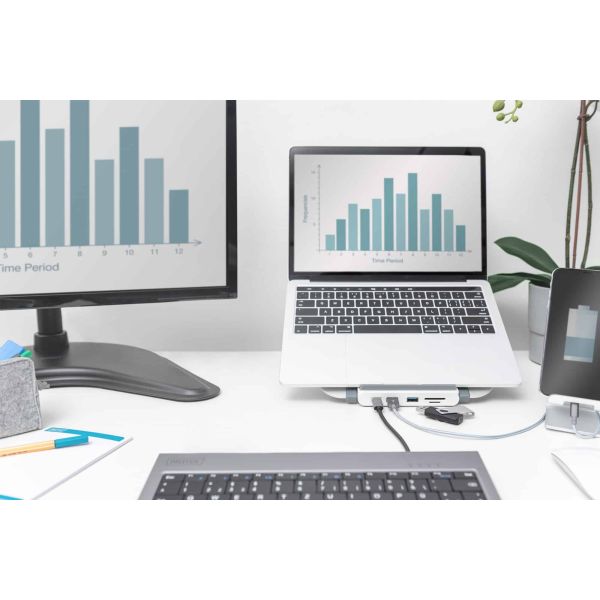

Notebook stand with integrated docking station – unites ergonomic design and connectivity in a portable solution

- Extends your notebook by 8 additional interfaces for video, data, power & Ethernet

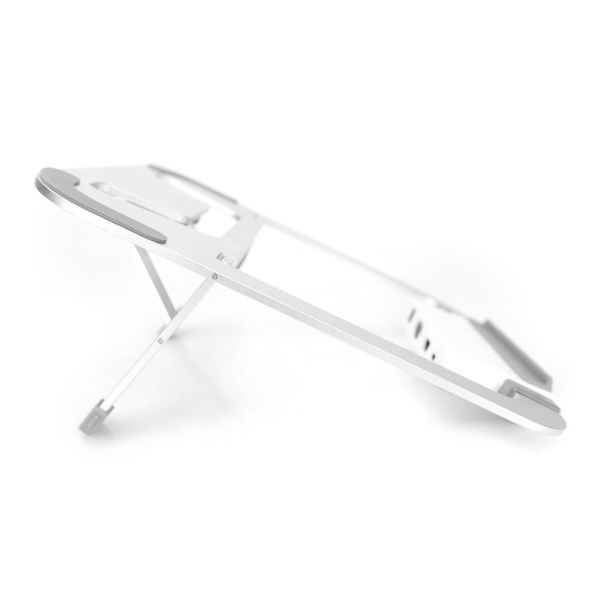

- Can be individually adjusted to your height, can be set to 4 different angles of inclination (15°-30°)
- Compact and foldable design – Ideal for travel, home & office
- Suitable for 10"-15" notebooks
- 2 x Video connections: 1 x UHD 4K HDMI® connection / 1 x Full HD VGA connection
- 2 x USB-C™ connections: 1 x Host for connection with notebook / 1 x PD 3.0 (Power Delivery) USB-C™ connection to quickly charge your notebook
- 1 x RJ45 Gigabit Ethernet interface - Connects your notebook to the Internet / LAN
- 2 x USB 3.0 connections (SuperSpeed, 5 Gbps) – Data transmission / Charging of mobile devices (5 V / 0.9 A)
- Slim frame design for optimal notebook cooling

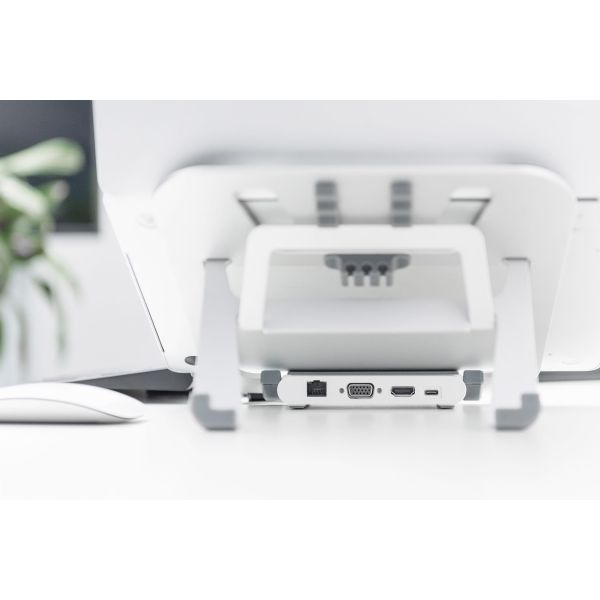

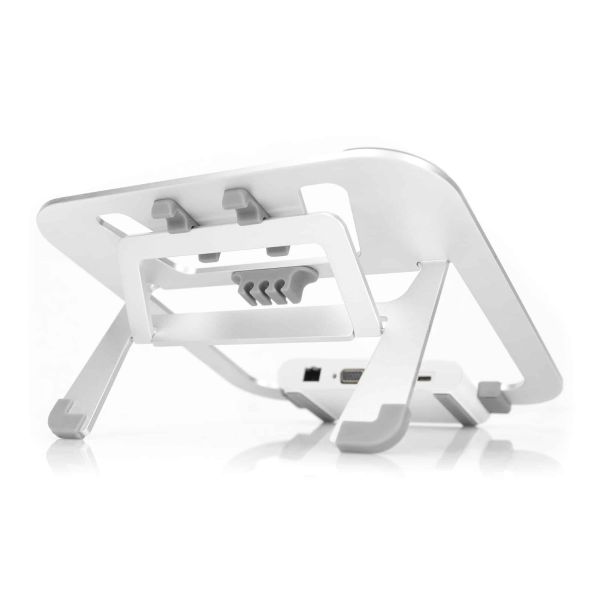

The adjustable notebook stand from DIGITUS® combines ergonomic design and connectivity in one convenient unit. You can easily adjust the angle of inclination to your height in 4 levels. Your notebook can be connected via the USB-C™ port, allowing you to access all interfaces of the integrated docking station. On the front side there is a fully functional USB-C™ port, two USB A ports (USB 3.0) and a card reader for SD and microSD cards. On the back side it is possible to connect two monitors (HDMI + VGA), an RJ45 network cable (LAN) as well as a USB-C™ power adapter that can deliver charging power (Power Delivery) for devices such as a connected notebook. Use the advantages of ergonomic design and connectivity in a single unit with the DIGITUS® notebook stand with integrated docking station.
  • 1 x HDMI port: 4K / 30 Hz
  • 1 x VGA connection: 1080p
  • 1 x RJ45 connection: Gigabit Ethernet interface with 10/100/1000 Mbps bandwidth (LAN)
  • 1 x USB-C™ connection: USB 3.1 Gen 1
  • 1 x USB-C™ connection: Power Delivery (85 W max.)
  • 2 x USB A connections: USB 3.0, SuperSpeed, 5 Gbps (5 V / 0.9 A)
  • 1 x Card reader: SD & microSD card slot, 90 MB/s max.
  • HDMI version: 1.4
  • HDMI resolution: 4K - 1 monitor / 1080p - 2 monitors
  • VGA resolution: Full HD (1080p)
  • Simultaneous use of HDMI + VGA = Clone desktop
  • Individual use of HDMI or VGA = Extend / Clone desktop
  • Compatible with notebooks, tablets from many manufacturers
  • Suitable for notebooks with a screen diagonal of 10" - 15"
  • Slim frame design for optimal notebook cooling
  • Adjustable angle of inclination: 15°, 20°, 25°, 30°
  • Frame material: Aluminum
  • Dimensions: W 25.7 x D 23 x H 26.5 cm
  • Weight: 445 g
  • Manufacturer’s notice:
  • Not all USB-C™ ports support all the features of the USB Type-C™ standard. Make sure that your notebook’s USB-C™ port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD).
  • An optional power adapter is required in order to use the charging function via Power Delivery.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
USB Power Delivery
Ja
USB Power Delivery herziening
3.1
USB Power Delivery tot max.
87 W
Aantal HDMI-poorten*
1
HDMI versie
1.4
VGA (D-Sub)poort(en)
1
Microfoon, line-in ingang*
Nee

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Prestatie

Geïntegreerde geheugenkaartlezer*
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), SD, SDHC
Overdrachtssnelheid
5 Gbit/s
HD type
4K Ultra HD
Aantal displays ondersteund
2
Kleur van het product*
Aluminium
Plug and play
Ja

Prestatie

Materiaal behuizing
Aluminium
Land van herkomst
China

Energie

Spanning
5 V
Output current
0,9 A

Gewicht en omvang

Breedte
257 mm
Diepte
230 mm
Hoogte
265 mm
Gewicht
445 g

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
255 mm
Diepte verpakking
280 mm
Gewicht verpakking
725 g

Technische details

Verpakkingsvolume
2570,4 cm³

Logistieke gegevens

Code UK-handelstarief
84718000
Code geharmoniseerd systeem (HS)
84733020
