Digitus DK-1744-A-VH-10-P, 1000 m, Cat7a, S/FTP (S-STP)

Ruim op voorraad

Fabrikant Digitus
MPN DK-1744-A-VH-10-P
EAN 4016032462972

Digitus DK-1744-A-VH-10-P netwerkkabel Geel 1000 m Cat7a S/FTP (S-STP)

Future-oriented standards and high-end quality for your network.

- 10 GBit Ethernet
- 1500 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- BauPVO category Cca-s1a d1 a1
- GHMT PVP certified

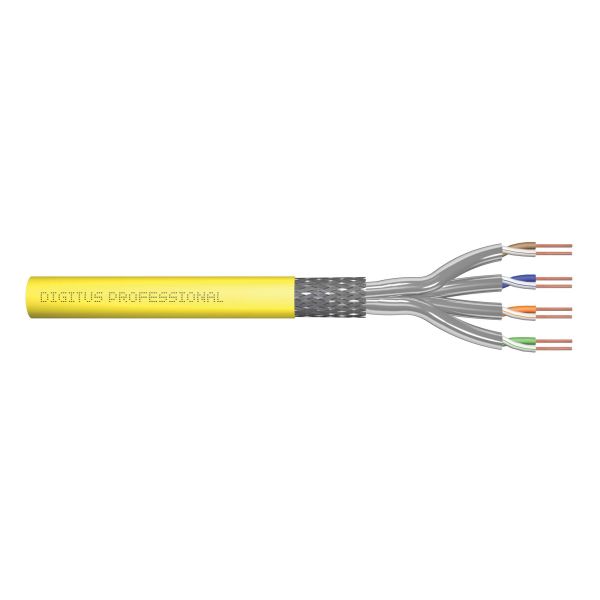

The DIGITUS® Cat. 7A S/FTP installation cable features the following cable structure 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and BauPVO Euroclass Cca. The cable is suitable for structured building cabling in secondary and tertiary areas. Complies with the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.
  • Physical properties
  • Cable: Bare copper wire, AWG 22/1
  • System/s of AVCP: AVCP 3
  • Insulation: SFS-PE (foamed polyethylene sheath)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: Aluminum-covered polyester film, 100% coverage
  • Overall shielding: Copper mesh
  • Outer sheath: Dca to CCA complies with EN 50575
  • Outer sheath thickness (nominal): 0.60 mm (CCA)
  • Outer sheath color: Sulfur yellow (RAL 1028)
  • Mechanical properties
  • Cable grip: 150 N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +75 °C
  • Operating temperature range: -20 °C to +60 °C
  • Installation temperature range: 0 °C to +50 °C
  • External diameter simplex (nominal): 8.0 mm (CCA)
  • Weight (kg/km): 68.0 kg (CCA)
  • Electrical properties
  • Impedance: 100 ± 5 ohm @ 1-1000 MHz
  • Capacity: 40 pF/m nominal @ 1 KHz
  • Capacity unbalance (pair earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 Gohm x km min.
  • DC resistance: 72 ohm/km max. (2% max. non-balanced resistance)
  • Loop resistance: 147 ohm/km max. (2% max. non-balanced resistance)
  • Operating voltage: 72 VDC max.
  • Insertion loss: 80 dB
  • Phase delay: 450 nS/100 m max.
  • Signal delay: 10 nS/100 m max.
  • Segregation classification: “d” in accordance with EN 50174-2
  • NVP: 75%

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Kleur van het product*
Geel
Snoerlengte*
1000 m
Kabel standaard*
Cat7a
Kabelafscherming*
S/FTP (S-STP)
Aansluiting 1*
Nee
Aansluiting 2*
Nee
Aansluiting 1 type*
Nee
Aansluiting 2 type*
Nee
Materiaal buitenmantel
Halogeenvrij
Constructie van de geleider(s)
Solide
Geleidermateriaal
Koper
AWG draad omvang
22/1
Overdrachtssnelheid
10000 Mbit/s
Frequentie
1500 MHz
Power over Ethernet (PoE)
Ja
Certificering
CPR class Cca
Land van herkomst
Turkije

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 75 °C
Temperatuur bij opslag
-20 - 65 °C

Gewicht en omvang

Outer diameter
8 mm

Verpakking

Aantal per verpakking
1 stuk(s)
Breedte verpakking
530 mm
Diepte verpakking
530 mm
Gewicht verpakking
66,5 kg
Verpakkingsvolume
122192 cm³
Type verpakking

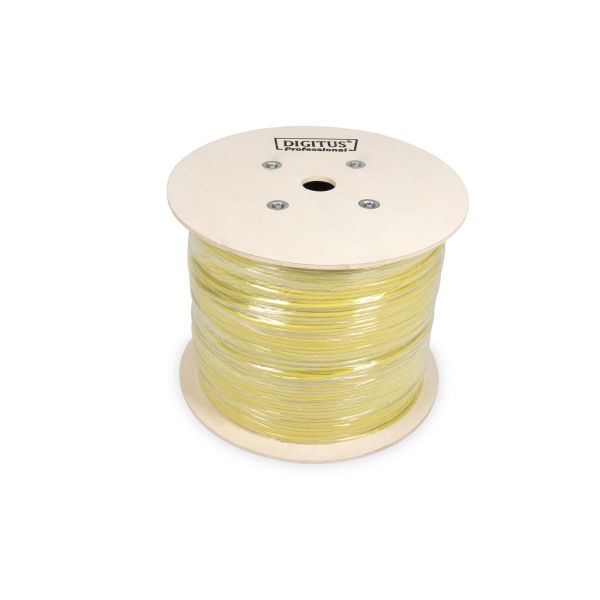

Houten haspel

Technische details

Bevat geen
Halogeen

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
Code UK-handelstarief
85444920
(Buitenste) hoofdverpakking breedte
530 mm
(Buitenste) hoofdverpakking lengte
530 mm
(Buitenste) hoofdverpakking hoogte
435 mm
(Buitenste) hoofdverpakking inhoud
122192 cm³
