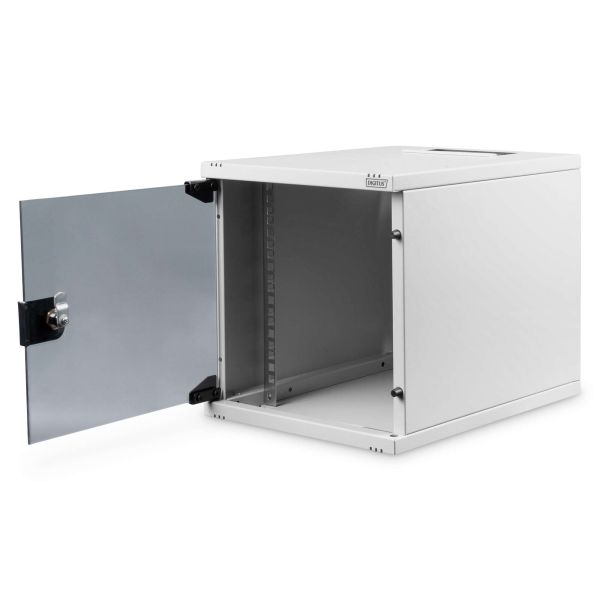

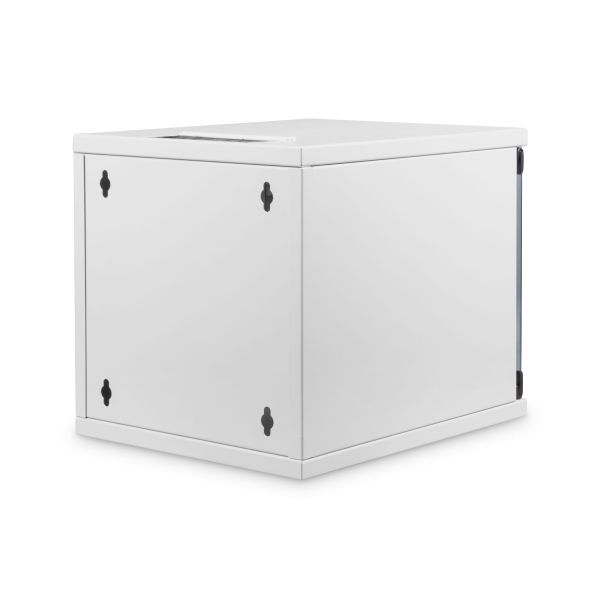

Digitus DN-10-06U-4 rack 6U Wandrek Grijs

Digitus DN-10-06U-4, Wandrek, 6U, 30 kg, Grijs

Niet op voorraad

Fabrikant Digitus
MPN DN-10-06U-4
EAN 4016032466086
€ 92,00 excl. BTW

Digitus DN-10-06U-4 rack 6U Wandrek Grijs

The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Very compact enclosure
- Easy to assemble in your office building
- Provides a neat cable management

Whether for private areas, office or sub-distribution units with limited space: With the compact 254 mm (10”) solutions, you can install your network wherever you like. The wall housings available in three rack units (6 rack units, 9 rack units, 12 rack units) are equipped with a full glass door as well as a cable entry with brushes in the roof and floor. A pairs of galvanized 254 mm (10”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
  • Safety class rating IP20
  • Lockable safety-glass door
  • 200° door opening angle
  • 1-point-locking-mechanism on the front door
  • 254 mm (10") profile rails mounted on the front side inside of the cabinet, galvanized
  • 254 mm (10") profile rails are adjustable in depth
  • 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
  • Cable entry with brush strip on the top and with plastic cover on the base
  • Ventilation slots for active and passive ventilation and exhausting
  • Equipment mounting depth max.: 309 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
6U
Soort*
Wandrek
Maximale gewichtscapaciteit*
30 kg
Kleur van het product
Grijs
Materiaal
Staal
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Voordeur met sleutelvergrendeling
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Maat
25,4 cm (10")
Breedte
312 mm
Diepte
400 mm

Gewicht en omvang

Hoogte
330 mm
Inbouwdiepte (max)
30,9 cm

Verpakking

Breedte verpakking
370 mm
Diepte verpakking
460 mm
Verpakkingsvolume
66378 cm³
Gewicht verpakking
9,5 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000
