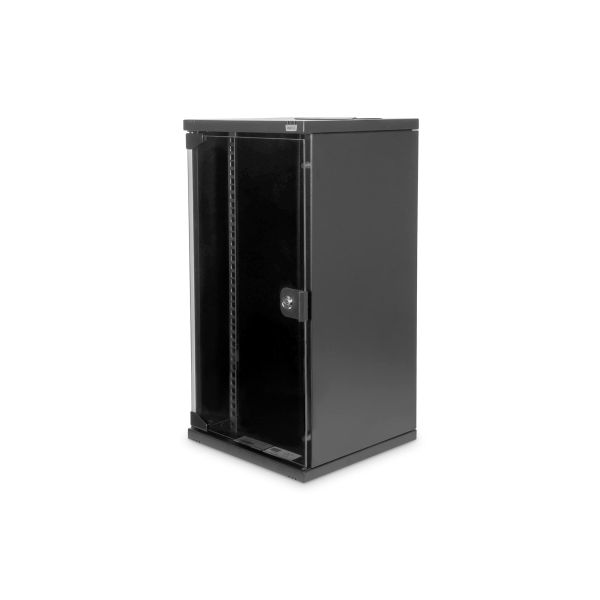

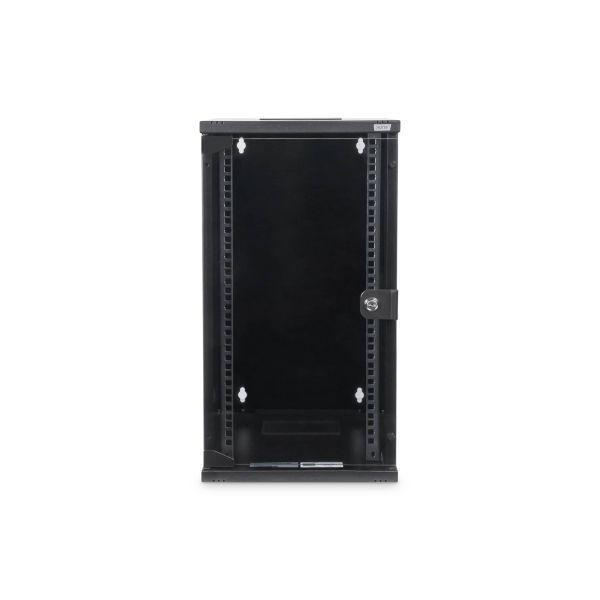

Digitus DN-10-12U-B rack Wandrek Zwart
The DIGITUS® Professional Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Very compact enclosure
- Easy to assemble in your office building
- Provides a neat cable management
The 254 mm (10”) wall mounting cabinets are made of a robust steel sheet construction. Cable entry openings on top and base side provide the best possibilities for cable management in a compact area. With its overall compact design this enclosure is ideal for current IT and telecommunication applications, especially in narrow areas or private households.
- Very compact enclosure
- Easy to assemble in your office building
- Provides a neat cable management
The 254 mm (10”) wall mounting cabinets are made of a robust steel sheet construction. Cable entry openings on top and base side provide the best possibilities for cable management in a compact area. With its overall compact design this enclosure is ideal for current IT and telecommunication applications, especially in narrow areas or private households.
- Safety class rating IP20

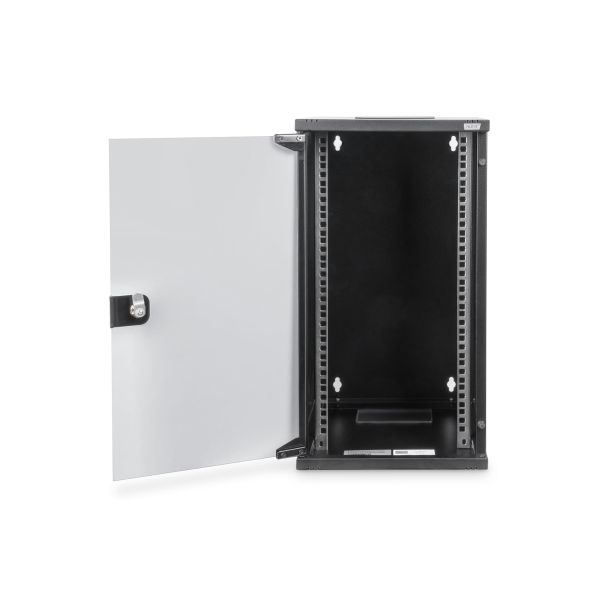

- Lockable safety-glass door
- 200° door opening angle
- 1-point-locking-mechanism on the front door
- 254 mm (10") profile rails mounted on the front side inside of the cabinet, galvanized
- 254 mm (10") profile rails are adjustable in depth
- 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
- Cable entry with brush strip on the top and with plastic cover on the base
- Ventilation slots for active and passive ventilation and exhausting
- Equipment mounting depth max.: 240 mm
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Rackcapaciteit*
12U
Soort*
Wandrek
Maximale gewichtscapaciteit*
30 kg
Kleur van het product
Zwart
Materiaal
Staal
Frame type
Gesloten
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Type koeling
Passief
Internationale veiligheidscode (IP)
IP20
Gewicht en omvang
Maat
25,4 cm (10")
Gewicht en omvang
Breedte
312 mm
Diepte
300 mm
Hoogte
592 mm
Inbouwdiepte (max)
24 cm
Verpakking
Breedte verpakking
340 mm
Diepte verpakking
350 mm
Verpakkingsvolume
78421 cm³
Gewicht verpakking
12 kg
Logistieke gegevens
Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000
