Digitus DN-10-SET-3 rack 12U Vrijstaande rek Grijs
Digitus DN-10-SET-3, Vrijstaande rek, 12U, 30 kg, Sleutelsleuf, Rekrails, Grijs
Nog slechts 6 beschikbaar
Fabrikant
Digitus
MPN
DN-10-SET-3
EAN
4016032477518
€ 224,00
excl. BTW
€ 224,00
excl. BTW
excl. BTW
Digitus DN-10-SET-3 rack 12U Vrijstaande rek Grijs
Complete set to build up a compact 254 mm (10") network incl. cabinet, shelf, power strip, switch, patch panel, patch cable, dummy cover and cable management

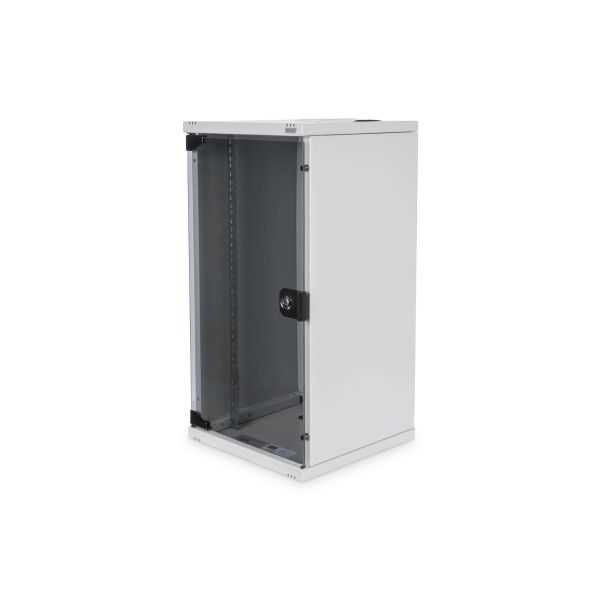

- Including wall housing, 12HE, 592 x 312 x 300 mm (DN-10-12U)

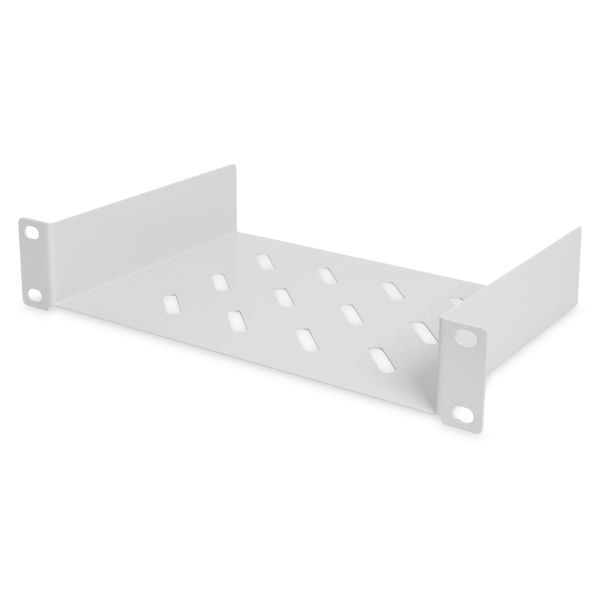

- Including shelf, 1HE (DN-10 TRAY-1)

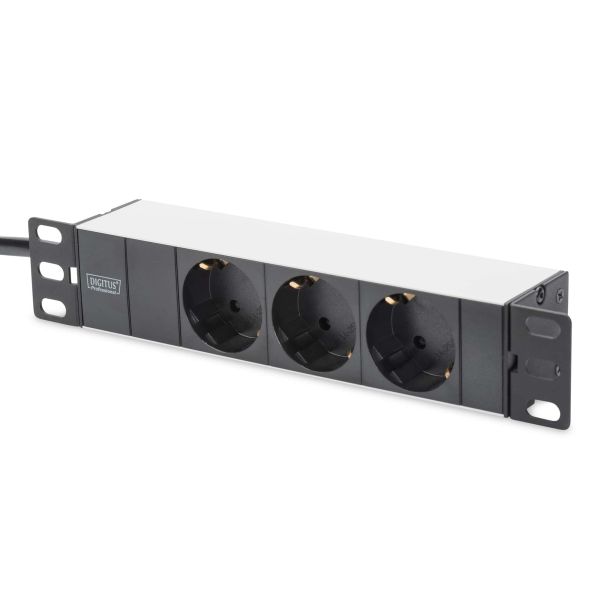

- Including power strip, 1HE, 3x safety socket (DN-95411)
- Including Gigabit Ethernet Switch, 8-port (DN-80114)

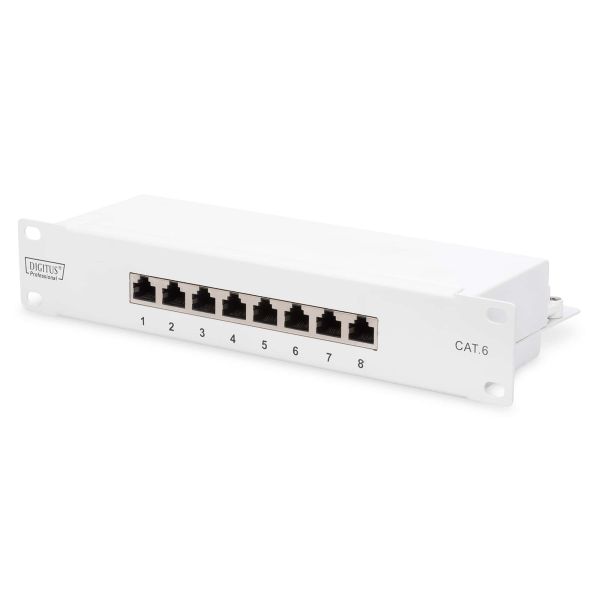

- Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S-G)

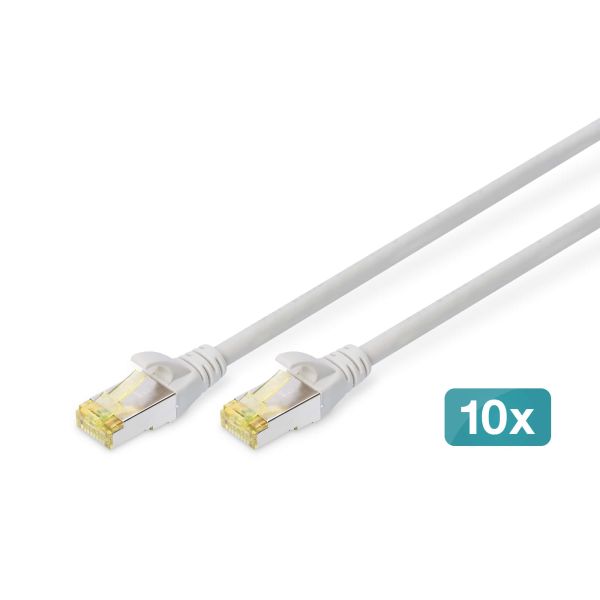

- Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010)
- Including dummy cover, 1 rack unit (DN-10-BPN-01)

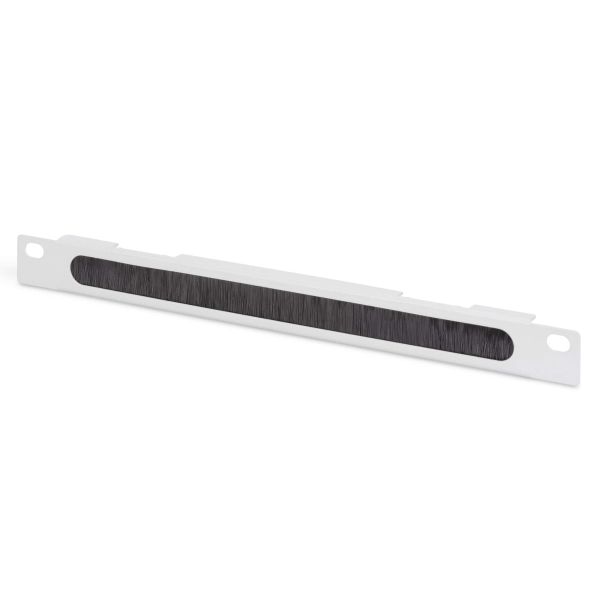

- Including cable brush strip (DN-10-ORG-1/2U)

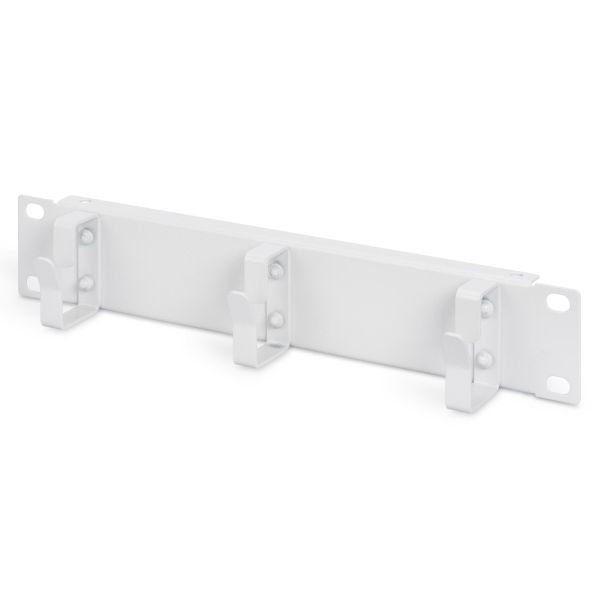

- Including cable management panel (DN-10-ORG-1U)
The 254 mm (10") network set from DIGITUS® is the ideal all-round solution for building up a compact network, for example at home or in small offices. Perfectly coordinated DIGITUS® components guarantee full usability with structured IT cabling.
- Including wall housing, 12HE, 592 x 312 x 300 mm (DN-10-12U)
- Including shelf, 1HE (DN-10 TRAY-1)
- Including power strip, 1HE, 3x safety socket (DN-95411)
- Including Gigabit Ethernet Switch, 8-port (DN-80114)
- Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S-G)
- Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010)
- Including dummy cover, 1 rack unit (DN-10-BPN-01)
- Including cable brush strip (DN-10-ORG-1/2U)
- Including cable management panel (DN-10-ORG-1U)
The 254 mm (10") network set from DIGITUS® is the ideal all-round solution for building up a compact network, for example at home or in small offices. Perfectly coordinated DIGITUS® components guarantee full usability with structured IT cabling.
- Wall housing dimensions (H x W x D): 592 x 312 x 300 mm
- Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W
- Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
- Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
- Patch panel for applications up to 250 MHz, 1GBase-T
- Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A & B
- CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color gray
- 1 rack unit dummy cover plate, 45 x 255 x 10 mm, gray (RAL 7035)
- 0.5 rack unit cable brush strip, 22 x 254 x 12 mm, gray (RAL 7035)
- 1 rack unit cable management panel, 3x cable rings, 44x254x60 mm, gray (RAL 7035)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Rackcapaciteit*
12U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
30 kg
Kleur van het product
Grijs
Frame type
Gesloten
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Rekrails
Ja
Internationale veiligheidscode (IP)
IP20
Energie
Netvoeding
4000 W
AC-ingangsfrequentie
50 - 60 Hz
Stroom
16 A
Gewicht en omvang
Maat
25,4 cm (10")
Breedte
312 mm
Diepte
300 mm
Hoogte
592 mm
Verpakking
Montage gereedschap
Ja
Gebruikershandleiding
Ja
Breedte verpakking
350 mm
Diepte verpakking
340 mm
Verpakkingsvolume
78421 cm³
Gewicht verpakking
17 kg
Logistieke gegevens
Code UK-handelstarief
94032080
Land van herkomst
Duitsland
Code geharmoniseerd systeem (HS)
85381000
