Digitus DN-10135 netwerkkaart Intern Ethernet 2500 Mbit/s

Digitus DN-10135, Intern, Bedraad, PCI Express, Ethernet, 2500 Mbit/s, Zwart

Ruim op voorraad

Fabrikant Digitus
MPN DN-10135
EAN 4016032473978
€ 31,00 excl. BTW

Digitus DN-10135 netwerkkaart Intern Ethernet 2500 Mbit/s

Fast multi-gigabit network connection with up to 2.5 Mbps for your PCI express slot

- Gigabit data transmission with up to 2500 Mbps (2.5G)
- Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
- Ideal for streaming and gaming applications with high data rates
- Supports IEEE802.3x full-duplex flow control
- Supports IEEE802.1q VLAN tagging
- Supports Wake-on-LAN
- Additional low-profile slot bracket for use in narrow housings

This PCIe Gigabit Network Card from DIGITUS® offers you the highest performance for network applications that achieve high data rates with your 10/100/1000/2500 BASE-T ethernet controller. This is ideal for streaming applications with high resolution. Via LAN interfaces (RJ45), it supports the IEEE802.3u specification for fast ethernet and the IEEE802.3ab specification for gigabit ethernet with up to 2.5 Gbps. IEEE802.3x full-duplex flow control is also supported, as well as Wake-on-LAN. The card can be used for slots at full installation height, a low-profile slot bracket is also provided in the scope of delivery for use at half installation height.
  • Connection: 1 x Gigabit LAN (RJ45)
  • Supports 10/100/1000/2500 Mbps networks with automatic recognition
  • Conforms with IEEE802.3, IEEE802.3u & IEEE802.3ab specification
  • Supports IEEE802.3x full-duplex flow control
  • Chipset: Realtek RTL8125B - 2500Base-T Ethernet Controller
  • Supports auto MDI/MDIX crossover
  • Compatible with PCI Express Specification 2.1
  • Supports Wake-on-LAN (WOL)
  • Supports IEEE802.1q VLAN tagging

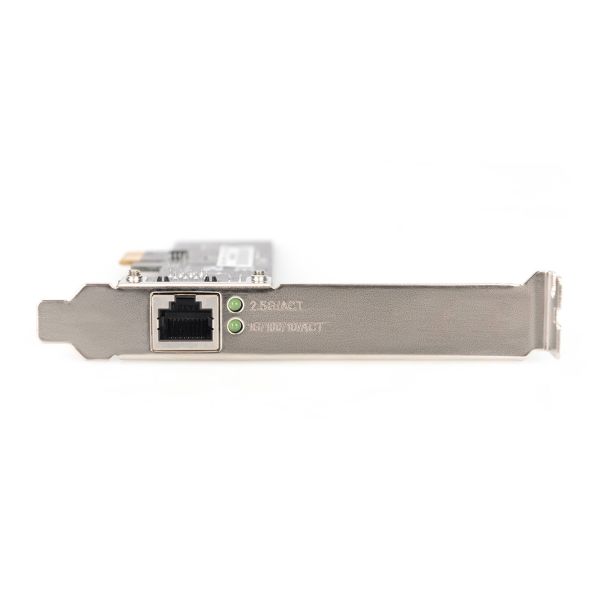

  • LED operating display: Active / data traffic / 2.5G data traffic
  • Supported operating systems: Windows 7/8/10 (32/64Bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and higher
  • Operating temperature: 5 °C to +50 °C
  • Operating humidity: 20% - 80%
  • Dimensions (WxDxH): 12 x 9.8 x 2.2 cm
  • Weight: 35.2 g

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
2.1
PCI Card form factor
Full-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
2500 Mbit/s
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Wake-on-LAN
Ja

Design

Component voor*
Server/werkplaats
Kleur van het product
Zwart
Intern*
Ja
Chipset
Realtek RTL8125B
Plug and play
Ja
LED-indicatoren
Ja

Design

Land van herkomst
China

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent

Gewicht en omvang

Breedte
120 mm
Diepte
98 mm
Hoogte
22 mm
Gewicht
35,2 g

Inhoud van de verpakking

Montagebeugels meegeleverd
Ja
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
