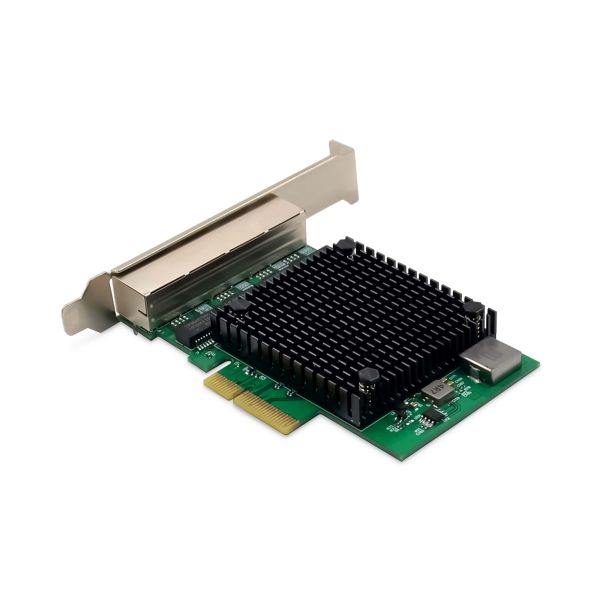

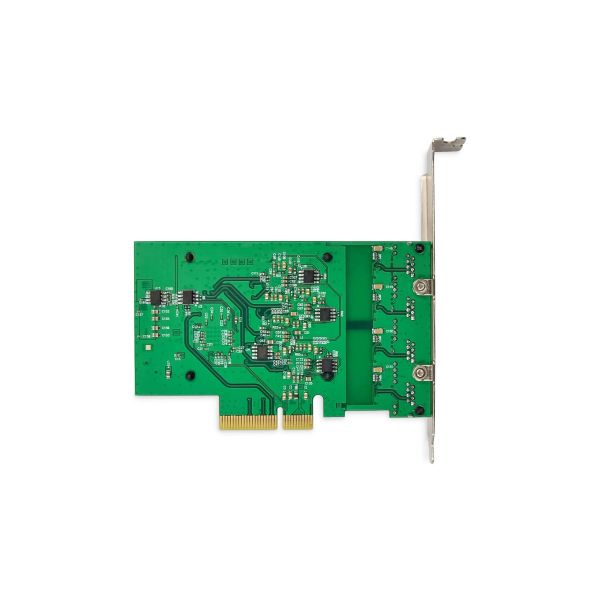

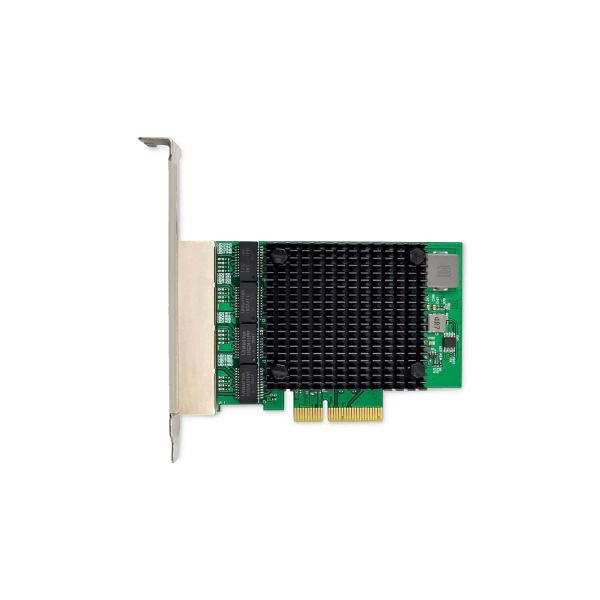

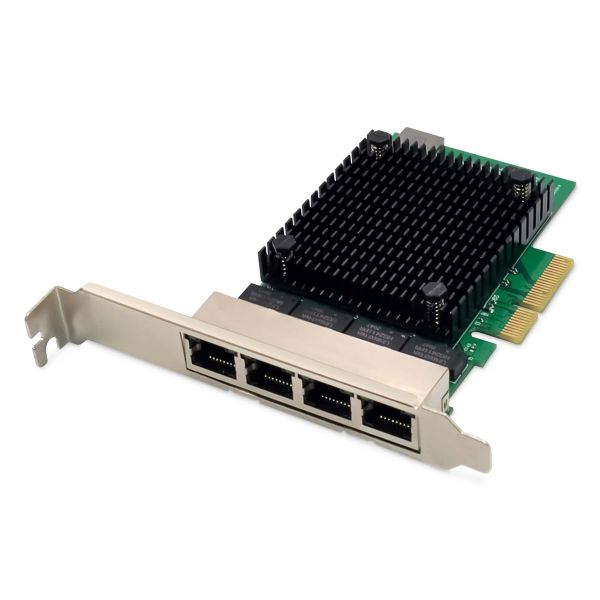

Digitus DN-10136 netwerkkaart Intern Ethernet 10000 Mbit/s
The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.
- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction
The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction
The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
- Support PCI Express Specification Revision 2.1
- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Auto-Negotiation with Extended Next Page capability(XNP)
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction
- Supports 1-Lane 2.5/5Gbps PCI Express Bus
- Supports hardware ECC(Error correction code)function
- Supports hardware CRC(Cyclic Redundancy Check)function
- Supports PCI MSI (Message Signaled Interrupt)and MSI-X
- Transmit/Receive on-chip buffer support
- Supports ECMA-393 ProxZzzy Standard for sleeping hosts
- Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
- Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
- Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
- Supports IEEE802.1Qav credit-based shaper algorithm
- Supports IEEE802.1P Layer 2 Priority encoding
- Supports IEEE802.1Q VLan tagging
- Supports IEEE802.1ad Double VLAN
- Supports IEEE802.3az (Energy Efficient Ethernet)
- Supports IEEE802.3bz(2.5GBase-T)
- Supports full duplex flow control(IEEE802.3x)
- Supports jumbo frame to 16K bytes
- Supports Virtual Machine Queue(VMQ)
- Supports quad core Receive –Side Scaling(RSS)
- Supports Protocol Offload (ARP&NS)
- Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS
- Chipset: RTL8125B+ASM1806
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
4
PCI versie
2.1
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500 Mbit/s
Wake-on-LAN
Ja
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
16000
Design
Component voor*
Pc/server
Kleur van het product
Zwart, Groen
Intern*
Ja
Chipset
Realtek RTL8125B
LED-indicatoren
Ja
Land van herkomst
China
Energie
Spanning
5 - 12 V
Minimale systeemeisen
Ondersteunt Windows
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Ondersteunt Linux
Ja
Andere ondersteundende systemen
DOS
Ondersteunde server operating systems
Windows Server 2008, Windows Server 2012
Gewicht en omvang
Breedte
70 mm
Diepte
20 mm
Hoogte
108 mm
Gewicht
100 g
Verpakking
Breedte verpakking
155 mm
Diepte verpakking
30 mm
Hoogte verpakking
220 mm
Gewicht verpakking
243,5 g
Inhoud van de verpakking
Montagebeugels meegeleverd
Ja
Ondersteunings-cd
Ja
Gebruikershandleiding
Ja
Logistieke gegevens
Code UK-handelstarief
84718000
Overige specificaties
Verpakkingsvolume
1023 cm³
