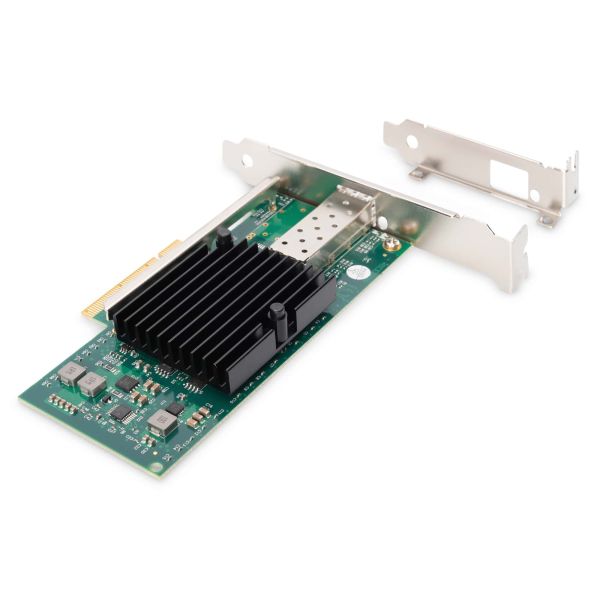

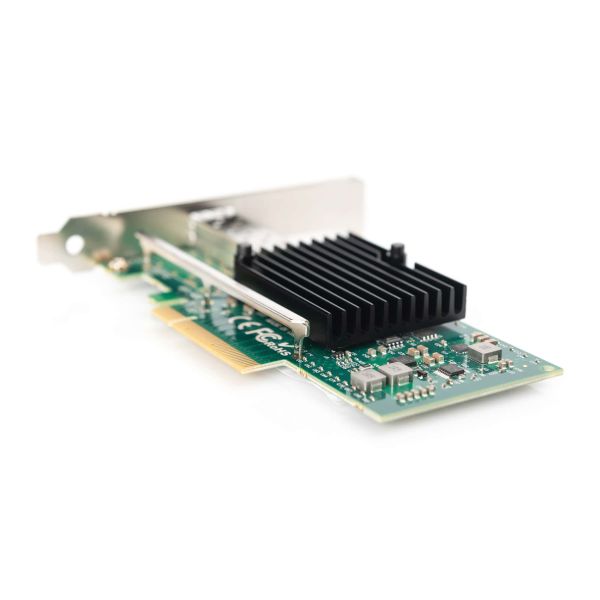

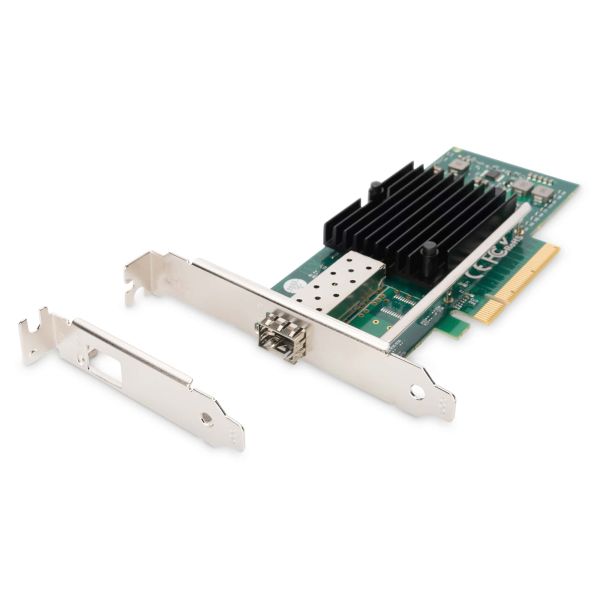

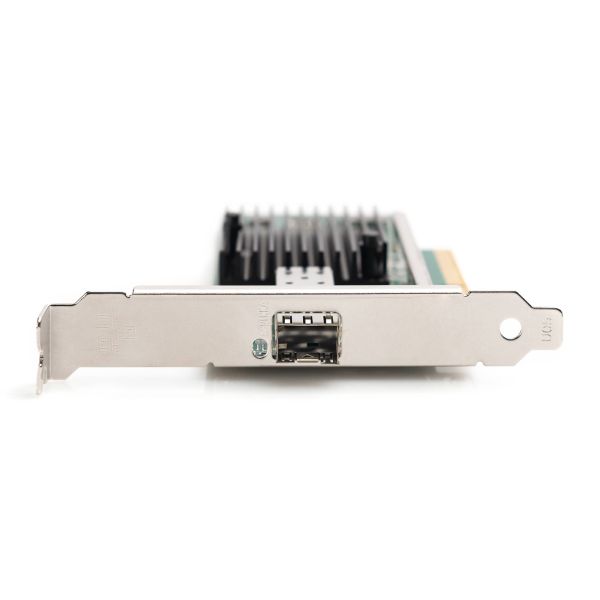

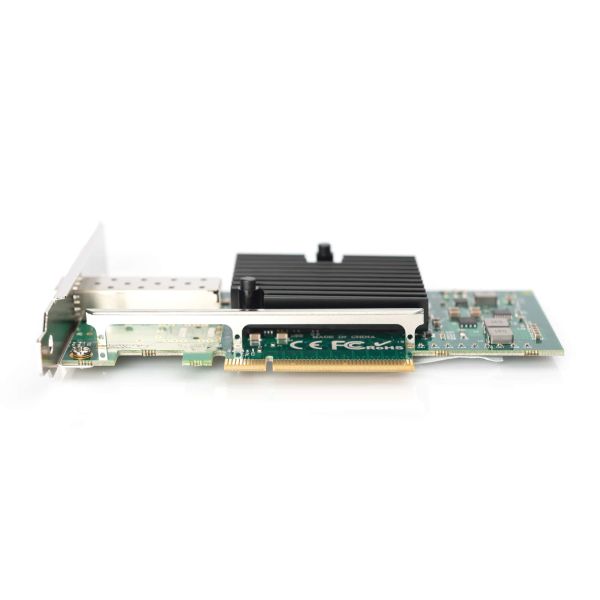

Digitus DN-10161 netwerkkaart Intern Fiber 10000 Mbit/s
Connect your workstation directly to your 10G fiber optic network
- Use the SFP+ tranceiver of your choice
- Compatible with x8 and x16 PCIe slots
- Supports 802.1Q VLAN tagging
With this 10-Gigabit Fiber Optic network card you have a cost efficent solution for connecting your workstation to your network using the SPF+ Tranceiver of your choice. Due to the Intel chipset you have a reliable solution offering you features like up to 15.5K jumbo frames, IP, TCP and UDP checksum offloading (IPv4, IPv6) capabilities.
- Use the SFP+ tranceiver of your choice
- Compatible with x8 and x16 PCIe slots
- Supports 802.1Q VLAN tagging
With this 10-Gigabit Fiber Optic network card you have a cost efficent solution for connecting your workstation to your network using the SPF+ Tranceiver of your choice. Due to the Intel chipset you have a reliable solution offering you features like up to 15.5K jumbo frames, IP, TCP and UDP checksum offloading (IPv4, IPv6) capabilities.
- Compatible with x8 and x16 PCIe slots
- Supports 802.1Q VLAN tagging
- Up to 15.5K Jumbo Frames
- Supports 10G SFP+ optical and direct attached copper modules
- PCI Express specification revision 2.0
- IEEE 802.1Q Tagged VLAN
- Supports Win 7, 8.1, 10, Server 2008 R2, 2012, 2012 R2, Linux 2.6.x and later
- Chipset: Intel JL82599EN
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
1
PCI versie
3.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
VLAN-tagging
Ja
Design
Intern*
Ja
Design
Chipset
Intel JL82599EN
Land van herkomst
China
Minimale systeemeisen
Ondersteunt Windows
Windows 10, Windows 7, Windows 8.1
Ondersteunde server operating systems
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Verpakking
Meegeleverde drivers
Ja

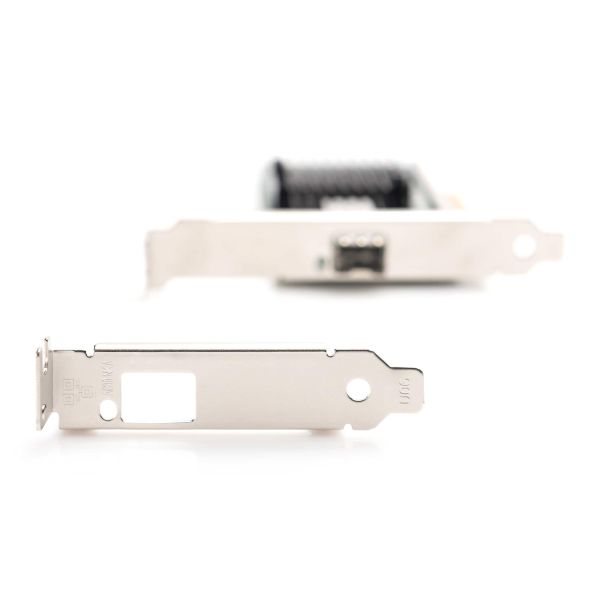

Low-profile bracket
Ja
Inhoud van de verpakking
Gebruikershandleiding
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
