Digitus DN-1019 rack 10U Wandrek Grijs

Digitus DN-1019, Wandrek, 10U, 30 kg, Sleutelsleuf, Verbeterd kabelbeheer, 10,3 kg

Ruim op voorraad

Fabrikant Digitus
MPN DN-1019
EAN 4016032462811
€ 124,00 excl. BTW

Digitus DN-1019 rack 10U Wandrek Grijs

The DIGITUS® wall mounting cabinets are designed, developed and manufactured for the high requirements of IT infrastructure.

- Case can be used for 254 mm (10”) or 482.6 mm (19”) applications
- Very compact enclosure
- Easy to install in office buildings
- Offers organized cable management
- 254 mm (10”) 10U horizontal; 482.6 mm (19”) 5U vertical
- Additional 254 mm (10”) 10U profile holes in the back
- Removable side sections
- Includes brush strips and cover plate for fan cutout

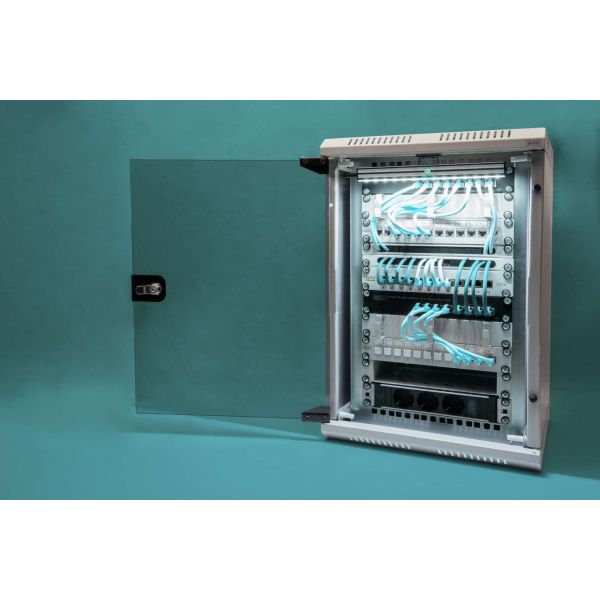

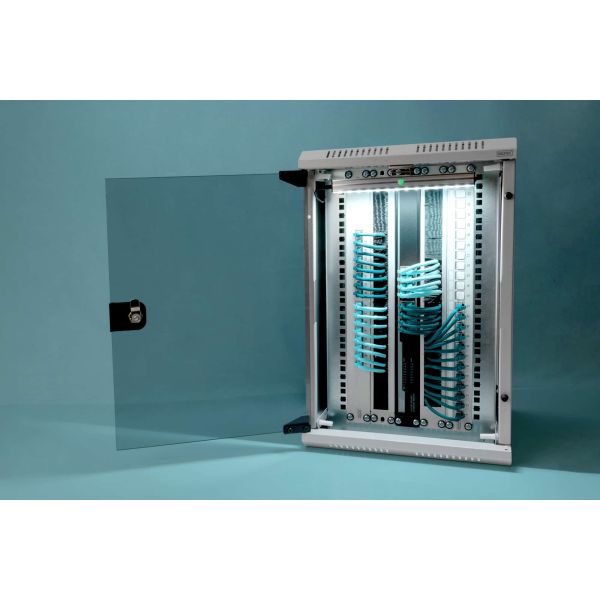

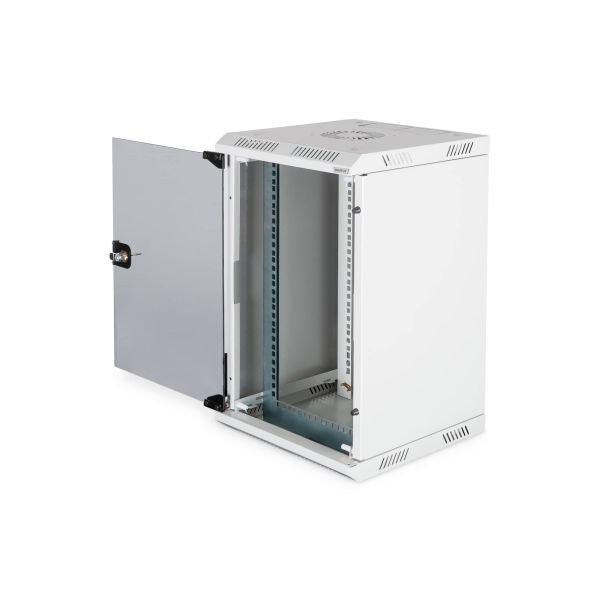

With its front installed all-around profile frame, the wall mounting cabinet offers the option of horizontal installation of 254 mm (10”) components (10 rack units) or alternatively a vertical installation of 482.6 mm (19”) components (5 rack units). The front profile frame depth is adjustable There are also integrated profile holes (254 mm, 10”) in the back of the cabinet frame for attachment of other components. The case is made of robust steel. Cable entries in the roof, floor and back offer excellent opportunities for organized cable management. The compact size makes it ideal for all standard IT and telecommunication applications, especially if space is limited or in private households.
  • Lockable safety glass door with 200° opening angle
  • 1-point locking on the front door
  • All-around profile frame on the front, mounted on the front inside the cabinet, galvanized
  • Maximum installation depth: approx. 260 mm to back wall; approx. 220 mm to rear profile holes
  • 1.1 - 1.5 thick sheet steel with high load capacity, powder-coated
  • Pre-cut cable entries in the roof, floor and back
  • Ventilation slits for active and passive ventilation
  • Profile rail load: 30 kg

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
10U
Soort*
Wandrek
Maximale gewichtscapaciteit*
30 kg
Kleur van het product
Grijs
Materiaal
Staal
Frame type
Gesloten
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Type koeling
Passief
Verbeterd kabelbeheer
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Maat
25,4 cm (10")
Breedte
350 mm
Diepte
350 mm
Hoogte
550 mm

Gewicht en omvang

Gewicht
10,3 kg

Verpakking

Breedte verpakking
355 mm
Diepte verpakking
355 mm
Hoogte verpakking
560 mm
Verpakkingsvolume
70574 cm³
Gewicht verpakking
11,5 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
(Buitenste) hoofdverpakking breedte
355 mm
(Buitenste) hoofdverpakking lengte
355 mm
(Buitenste) hoofdverpakking hoogte
560 mm
(Buitenste) hoofdverpakking brutogewicht
11,5 kg
(Buitenste) hoofdverpakking inhoud
70574 cm³
