Digitus 19" 9U Wall Mounting Cabinet, Unmounted, Wandrek, 9U, 60 kg, Grijs

Ruim op voorraad

Fabrikant Digitus
MPN DN-19 09-U-EC
EAN 4016032221708

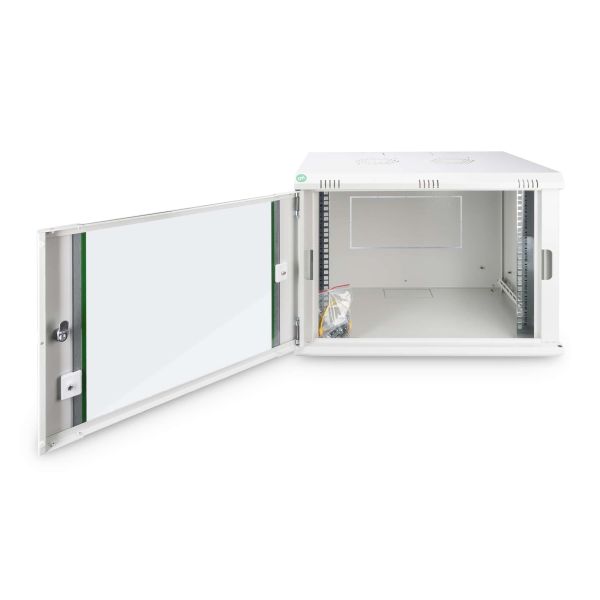

Digitus 19" 9U Wall Mounting Cabinet, Unmounted Wandrek Grijs

- 450 mm depth provides a space saving installation
- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame

The Wall Mounting Cabinets of the Dynamic Basic Series are made of a robust steel construction. Stability is given due to the welding spots. The side sections are detachable and the installation on the wall is easy so it can be implemented quickly. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
  • Safety class rating IP20
  • Lockable safety-glass door with steel frame
  • 235° door opening angle

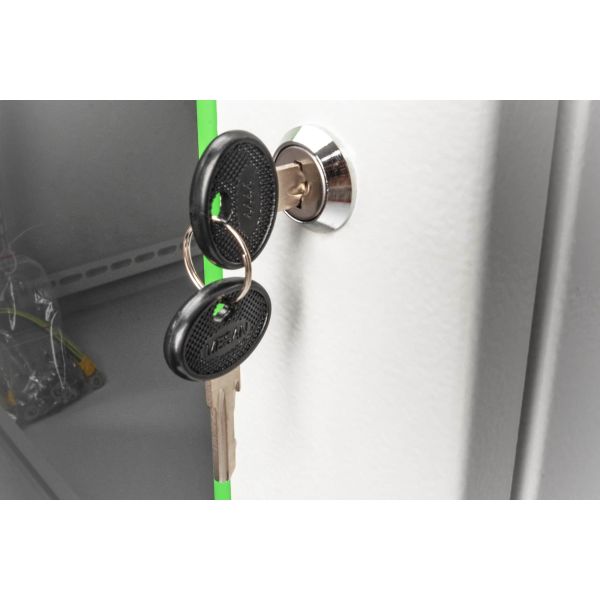

  • 1-point-locking-mechanism on the front door
  • 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
  • 483 mm (19“) profile rails are adjustable in depth and with height unit marking
  • 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
  • Cable entry on the rear side, roof and base (pre-punched break-outs)
  • Roof is prepared for fan units (punched out entries)
  • Ventilation slots for active and passive ventilation and exhausting
  • 4 earthing points (base, side panel and front door) with protection cap
  • Equipment mounting depth min.-max.: 335 -380 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
9U
Soort*
Wandrek
Maximale gewichtscapaciteit*
60 kg
Kleur van het product
Grijs
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Breedte
600 mm
Diepte
450 mm

Verpakking

Breedte verpakking
640 mm
Diepte verpakking
480 mm
Verpakkingsvolume
156672 cm³
Gewicht verpakking
22 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000
