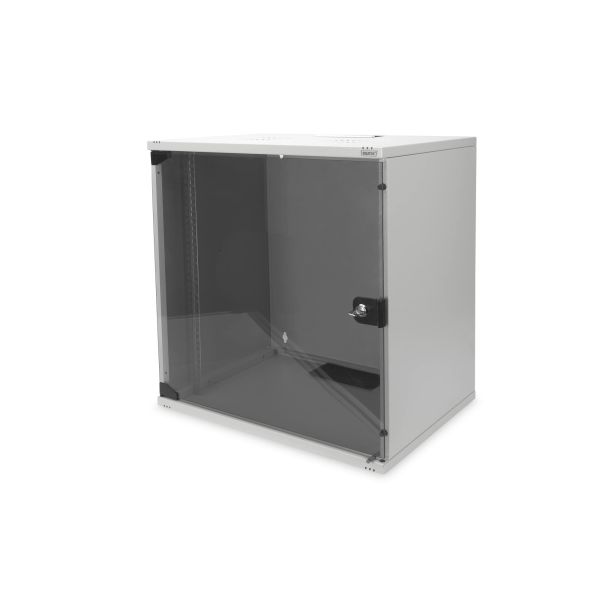

Digitus DN-19 12-U-S-1 rack 12U Wandrek Grijs

Digitus DN-19 12-U-S-1, Wandrek, 12U, 60 kg, Grijs

Ruim op voorraad

Fabrikant Digitus
MPN DN-19 12-U-S-1
EAN 4016032330967
€ 107,00 excl. BTW

Digitus DN-19 12-U-S-1 rack 12U Wandrek Grijs

The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

- Unmounted flat package delivery for cost- and space effciency
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety

The unmounted SOHO Wall Mounting Cabinets are made of a robust sheet steel construction with a minimum of seams. The enclosures are special designed to save a lot of space and costs while delivery due to the flat packaging. It is fast and easy to mount the cabinet. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
  • Safety class rating IP20
  • Lockable safety-glass door
  • 200° door opening angle
  • 1-point-locking-mechanism on the front door
  • 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
  • 483 mm (19”) profile rails are adjustable in depth
  • 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
  • Cable entry with brush strip on the top and with plastic cover on the base
  • Roof is prepared for fan units (punched out entries)
  • Ventilation slots for active and passive ventilation and exhausting
  • Equipment mounting depth min.-max.: 170-270 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
12U
Soort*
Wandrek
Maximale gewichtscapaciteit*
60 kg
Kleur van het product
Grijs
Materiaal
Staal
Voordeurconstructie
Glas
Inbegrepen zijpanelen
Ja
Internationale veiligheidscode (IP)
IP20

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
540 mm
Diepte
400 mm
Hoogte
581 mm
Breedte
52 cm (20.5")

Gewicht en omvang

Diepte (imperiaal)
40 cm (15.8")
Hoogte
58,1 cm (22.9")

Verpakking

Breedte verpakking
650 mm
Diepte verpakking
580 mm
Verpakkingsvolume
33930 cm³
Gewicht verpakking
16 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000

Overige specificaties

Afmetingen (B x D x H)
520 x 400 x 581 mm
