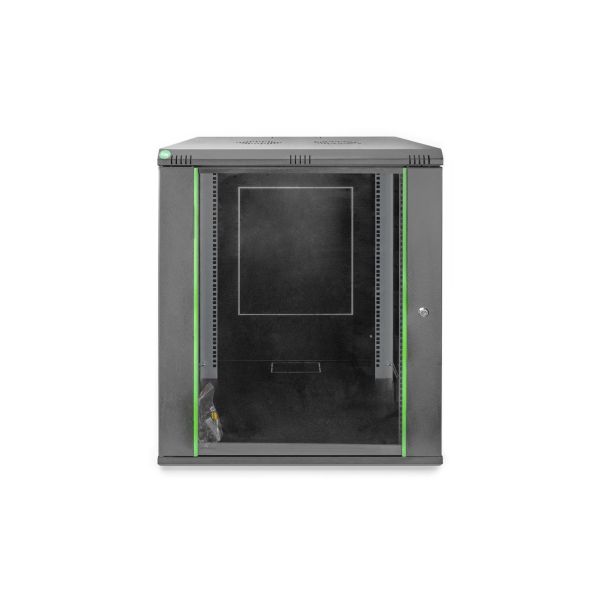

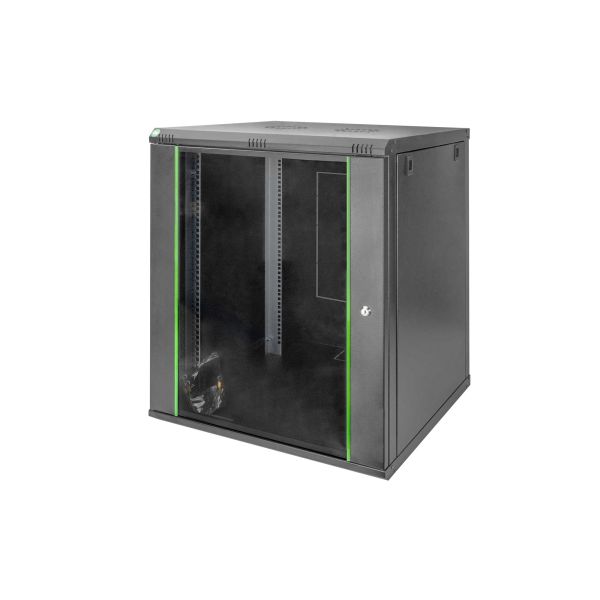

Digitus DN-19 16U-6/6-EC-SW rack Wandrek Zwart
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
The Wall Mounting Cabinets of the Dynamic Basic Series are made of a robust steel construction. Stability is given due to the welding spots. The side sections are detachable and the installation on the wall is easy so it can be implemented quickly. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
- Lockable glass door ensures safety
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
The Wall Mounting Cabinets of the Dynamic Basic Series are made of a robust steel construction. Stability is given due to the welding spots. The side sections are detachable and the installation on the wall is easy so it can be implemented quickly. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.
- Safety class rating IP20
- Lockable safety-glass door with steel frame
- 210° door opening angle

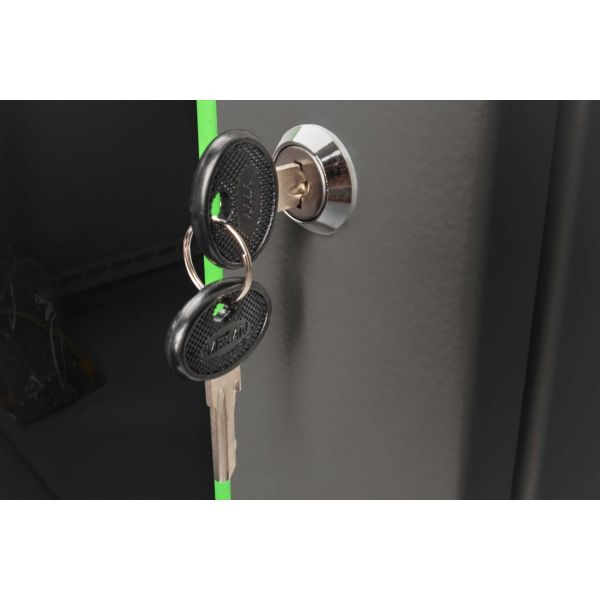

- 1-point-locking-mechanism on the front door

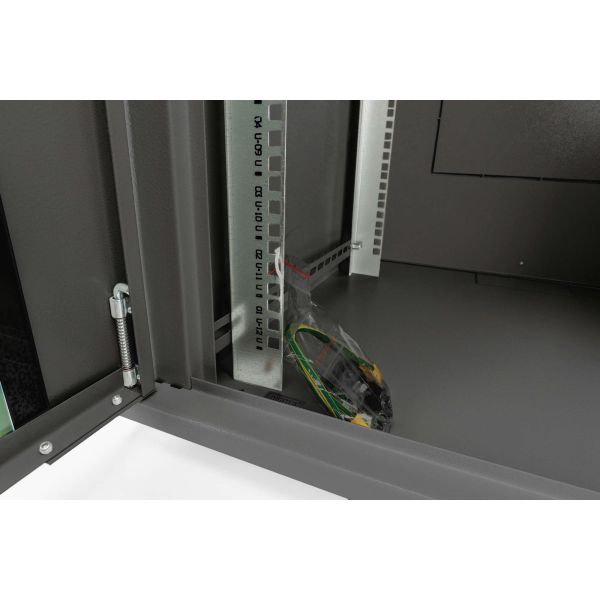

- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

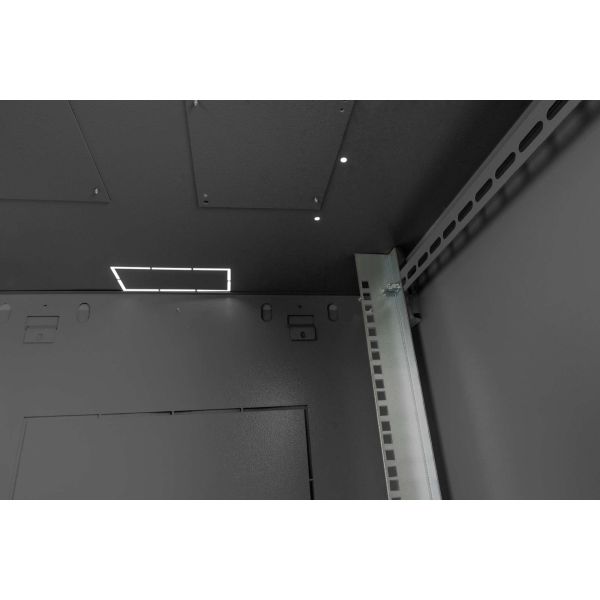

- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- 4 earthing points (base, side panel and front door) with protection cap
- Equipment mounting depth min.-max.: 320 - 450 mm
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Rackcapaciteit*
16U
Soort*
Wandrek
Maximale gewichtscapaciteit*
60 kg
Kleur van het product
Zwart
Materiaal
Staal
Voordeurconstructie
Glas
Zijpaneelconstructie
Staal
Verwijderbare zijpanelen
Ja
Inbegrepen zijpanelen
Ja
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Internationale veiligheidscode (IP)
IP20
Gewicht en omvang
Breedte
600 mm
Gewicht en omvang
Diepte
600 mm
Hoogte
816 mm
Gewicht
34 kg
Verpakking
Breedte verpakking
640 mm
Diepte verpakking
640 mm
Hoogte verpakking
875 mm
Verpakkingsvolume
335872 cm³
Gewicht verpakking
36,5 kg
Logistieke gegevens
Code UK-handelstarief
94032080
Land van herkomst
China
Code geharmoniseerd systeem (HS)
85381000
