Digitus DN-19 36U-6/8-PC-1, Vrijstaande rek, 36U, 600 kg, Sleutelsleuf, Grijs

Niet op voorraad

Fabrikant Digitus
MPN DN-19 36U-6/8-PC-1
EAN 4016032350507

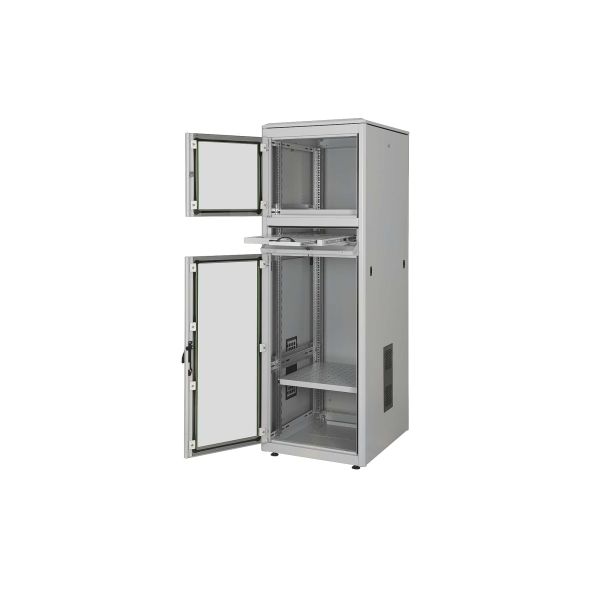

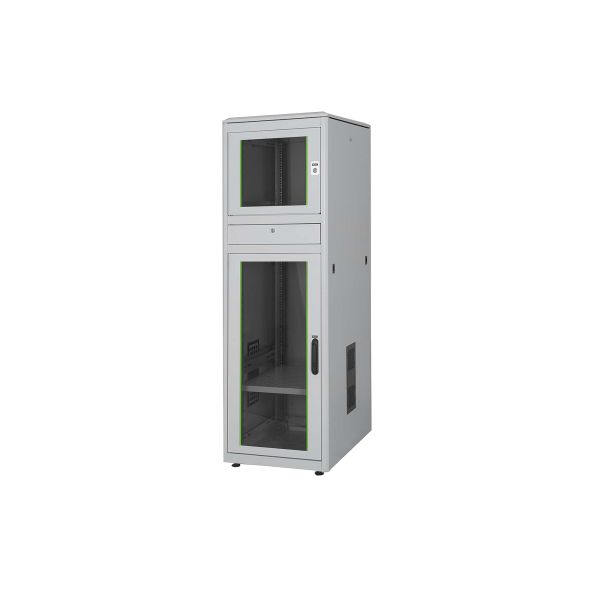

Digitus DN-19 36U-6/8-PC-1 rack Vrijstaande rek Grijs

- Special roof construction for fan unit with added lid which can be unmounted
- Sliding cable entry with rubber sealing on the base
- Rack is completely mounted

The 19” industrial PC cabinets from DIGITUS® are made of a robust steel construction with a minimum of seams. They offer an ideal housing for active and passive 483 mm (19”) components. The 36 height units are separated into three lockable units (screen unit= 9U; keyboard unit= 2U; 19” mounting unit= 25U). You can choose between two front door versions: Glass doors or steel doors. With all lockable front door parts, lockable rear and side panels, which are also detachable, the industrial PC cabinets offer an easy installation and availability at all time.
  • 1.5 mm - 2 mm strong sheet steel with a high loading capacity, powder coated
  • Glass door version
  • 36U front is separated into three lockable units (screen unit= 9U; keyboard unit= 2U; 19” mounting unit= 25U)
  • Side sections detachable and lockable
  • 19” profile rails mounted on the front and rear inside of the cabinet, galvanized
  • 19” profile rails with height unit marking and adjustable in depth
  • Roof module ready for ventilation unit
  • Roof and side panels are equipped with air ventilation slots
  • Large cable entry with rubber-edged sliding mechanism at the bottom of the cabinet
  • incl. already mounted shelf (mounting unit) and sliding keyboard shelf (keyboard unit)
  • incl. already mounted, adjustable leveling feet
  • Equipment mounting depth min.-max.: 563-743 mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
36U
Soort*
Vrijstaande rek
Maximale gewichtscapaciteit*
600 kg
Kleur van het product
Grijs
Materiaal
Glas, Staal
Voordeurconstructie
Glas
Afneembare voordeur
Ja
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Internationale veiligheidscode (IP)
IP40

Gewicht en omvang

Maat
48,3 cm (19")
Breedte
600 mm

Gewicht en omvang

Diepte
800 mm
Hoogte
1780 mm

Verpakking

Breedte verpakking
650 mm
Diepte verpakking
850 mm
Hoogte verpakking
1880 mm
Verpakkingsvolume
1011080 cm³
Gewicht verpakking
98 kg

Logistieke gegevens

Code UK-handelstarief
94032080
Land van herkomst
Turkije
Code geharmoniseerd systeem (HS)
85381000
