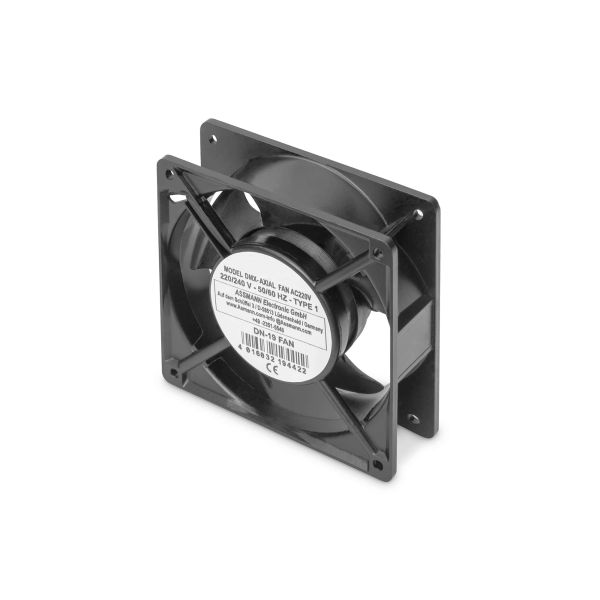

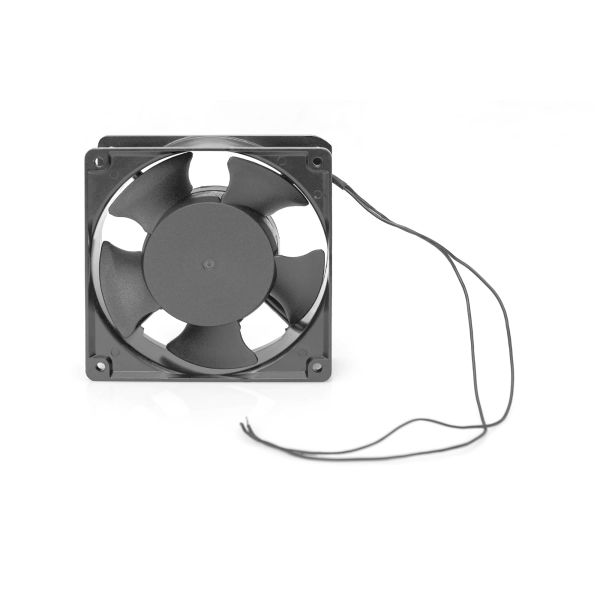

Digitus DN-19 FAN koelsysteem voor computers Computer behuizing Ventilator Zwart
This DIGITUS® 483 mm (19”) accessory was developed for the demanding requirements placed on IT infrastructure and manufactured according to German quality standards.
- Serves as replacement ventilator for ventilator units from DIGITUS®
- Can alternatively be commissioned as an individual ventilator

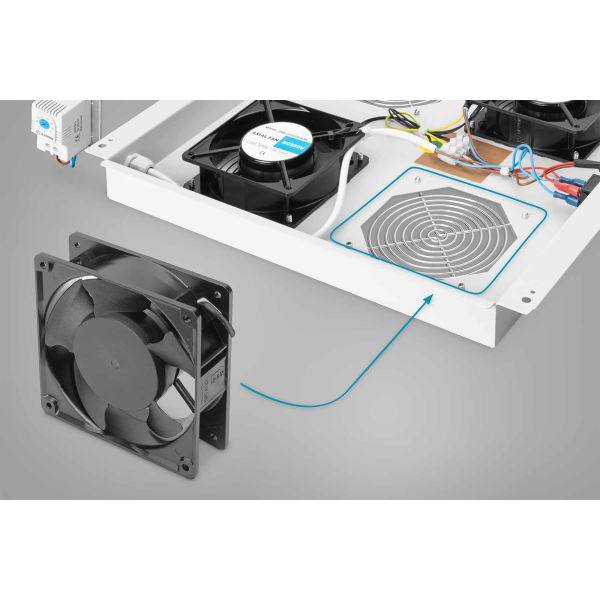

The individual ventilator from DIGITUS® serves as replacements to exchange with existing ventilator units from DIGITUS® for network and server cabinets. Alternatively, the ventilator can also be individually wired and commissioned. For example, it can serve as an extension to the DIGITUS® wall mounting cabinets for outdoor areas (e.g.: DN-19 12-U-I-OD) in which it can simply be snapped in on the inside in front of the existing filter.
- Serves as replacement ventilator for ventilator units from DIGITUS®
- Can alternatively be commissioned as an individual ventilator
The individual ventilator from DIGITUS® serves as replacements to exchange with existing ventilator units from DIGITUS® for network and server cabinets. Alternatively, the ventilator can also be individually wired and commissioned. For example, it can serve as an extension to the DIGITUS® wall mounting cabinets for outdoor areas (e.g.: DN-19 12-U-I-OD) in which it can simply be snapped in on the inside in front of the existing filter.
- Dimensions: 120 x 120 x 38 mm
- Weight: 530 g
- 1-phase
- Power supply: 230 VAC
- Frequency: 50/60 Hz
- Power output: 0.14/0.12 A
- Power input: 22/21 W
- Speed: 2700/3100 RPM
- Air circulation: 161.40 / 195.38 m³/h
- Noise level: 42/47 dbA
- Operating temperature: -30 °C to +75 °C
- Life cycle: 50000 h
- Housing material: Die-cast aluminum alloy
- Caster material: UL 94-0 plastic
- Motor protection: Impedance protected
- Ball bearing
- Connection cable: Lead wires
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Prestatie
Geschikte locatie*
Computer behuizing
Soort*
Ventilator
Geluidsniveau (hoge snelheid
47 dB
Design
Kleur van het product*
Zwart
Gewicht en omvang
Breedte verpakking
160 mm
Diepte verpakking
270 mm
Verpakkingsvolume
2160 cm³
Gewicht en omvang
Gewicht verpakking
473,333 g
Overige specificaties
Luchtcirculatie
2.3 m³/min
Land van herkomst
Turkije
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733080
Code UK-handelstarief
84145915
