Digitus DN-19 FAN-2-HO-SW rack-toebehoren Ventilatiepaneel
Digitus DN-19 FAN-2-HO-SW, Ventilatiepaneel, Zwart, 2 ventilator(en), 276 m³/uur, 1,8 m, IP20
Ruim op voorraad
Fabrikant
Digitus
MPN
DN-19 FAN-2-HO-SW
EAN
4016032185789
€ 162,00
excl. BTW
€ 162,00
excl. BTW
excl. BTW

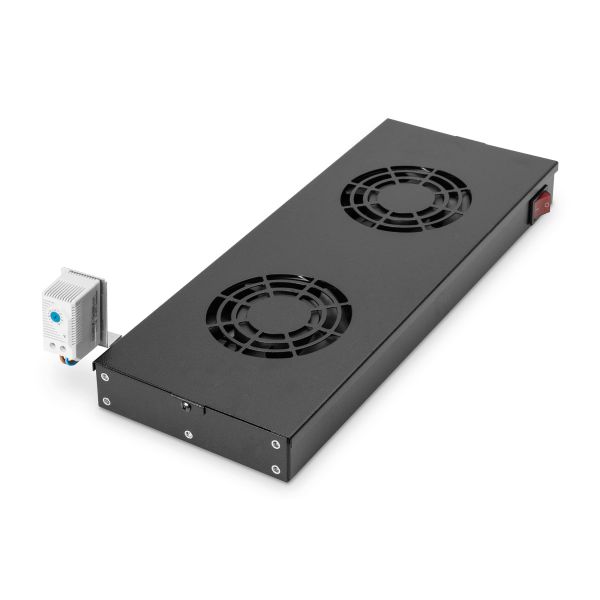

Digitus DN-19 FAN-2-HO-SW rack-toebehoren Ventilatiepaneel
- For installation into 483 mm (19") unit
The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provides best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.
- For installation into 483 mm (19") unit
- 2 fans

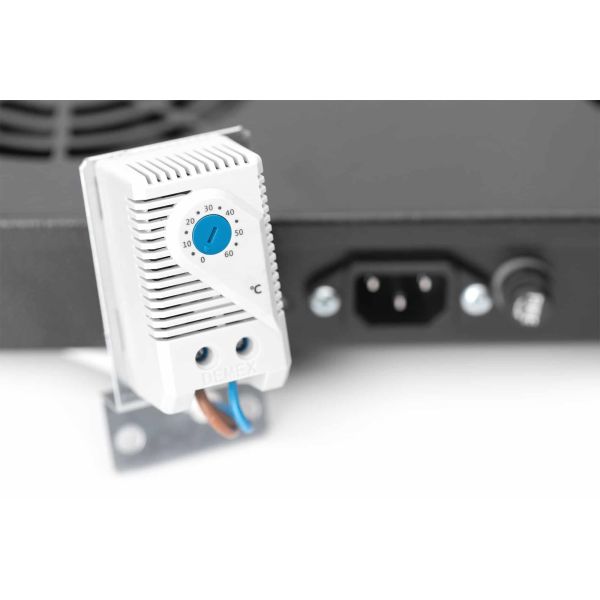

- incl. thermostat, adjustable from 0 °C up to +70 °C

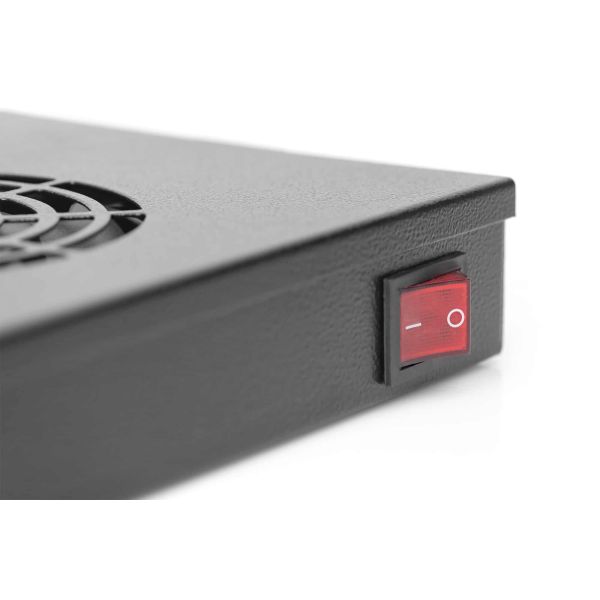

- On/off switch
- Air flow: 4.6 m³/min.
- 1.8 m cable with CEE 7/7 (Type-F) plug
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Soort*
Ventilatiepaneel
Kleur van het product*
Zwart
Ingebouwde ventilator
Ja
Aantal ventilatoren
2 ventilator(en)
Luchtstroom
276 m³/uur
Aan/uitschakelaar
Ja
Snoerlengte
1,8 m
Internationale veiligheidscode (IP)
IP20
Land van herkomst
Turkije
Energie
Stroombron
AC
Ingangsspanning
220 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
13,8 W
Gewicht en omvang
Breedte
483 mm
Diepte
174 mm
Hoogte
45 mm
Gewicht
5,2 kg
Verpakking
Aantal per verpakking
9 stuk(s)
Breedte verpakking
510 mm
Diepte verpakking
280 mm
Hoogte verpakking
400 mm
Verpakkingsvolume
7140 cm³
Gewicht verpakking
3,34 kg
Logistieke gegevens
Code UK-handelstarief
84145915
Code geharmoniseerd systeem (HS)
85389099
